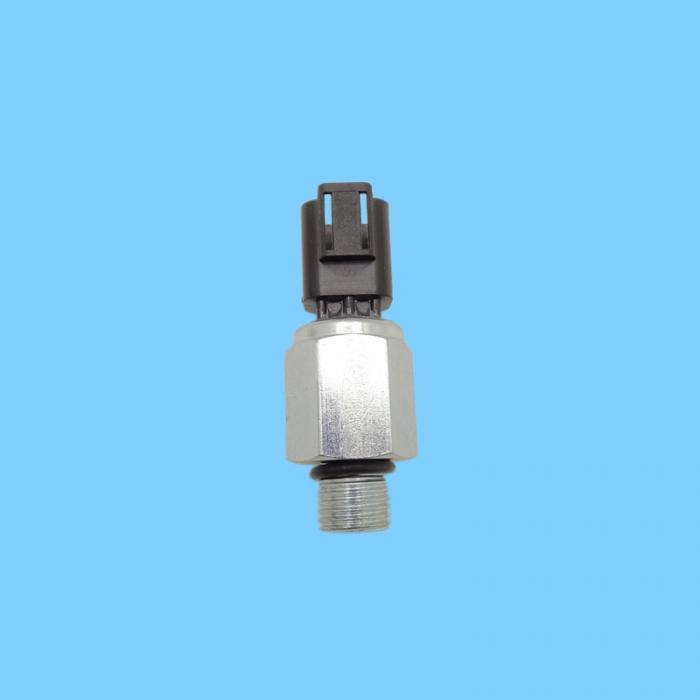

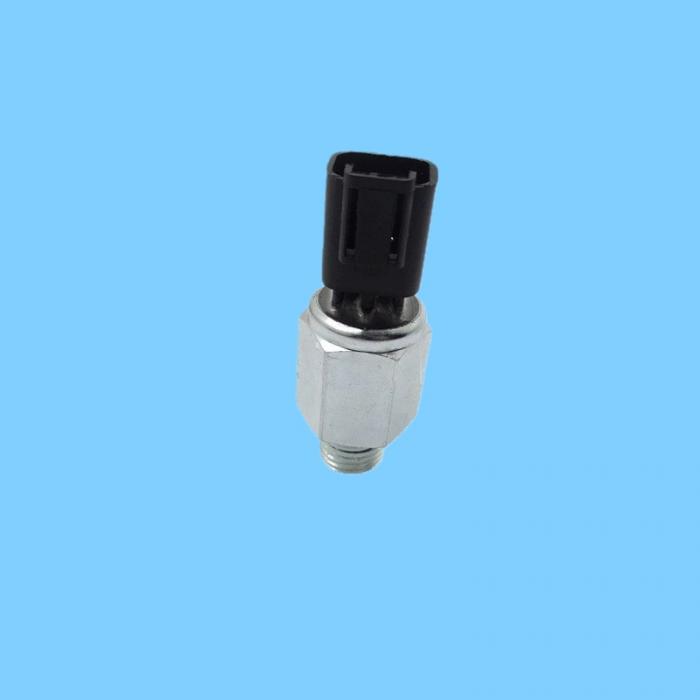

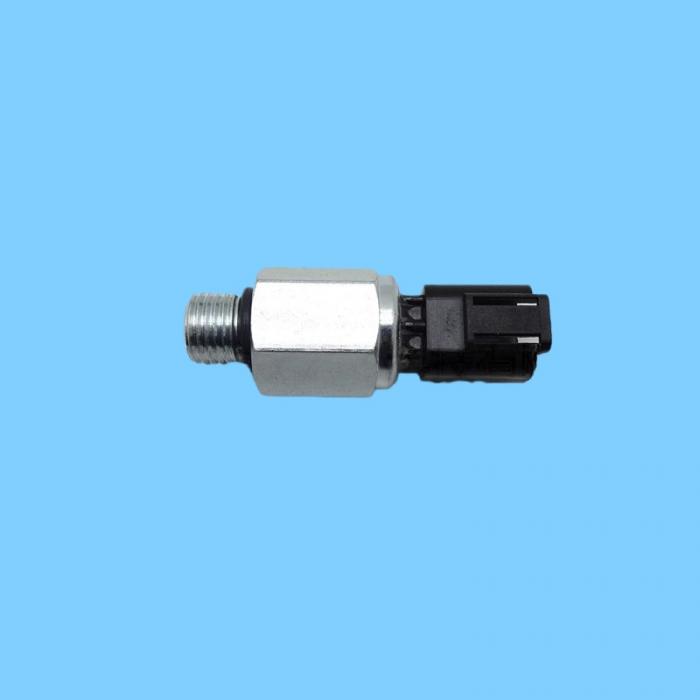

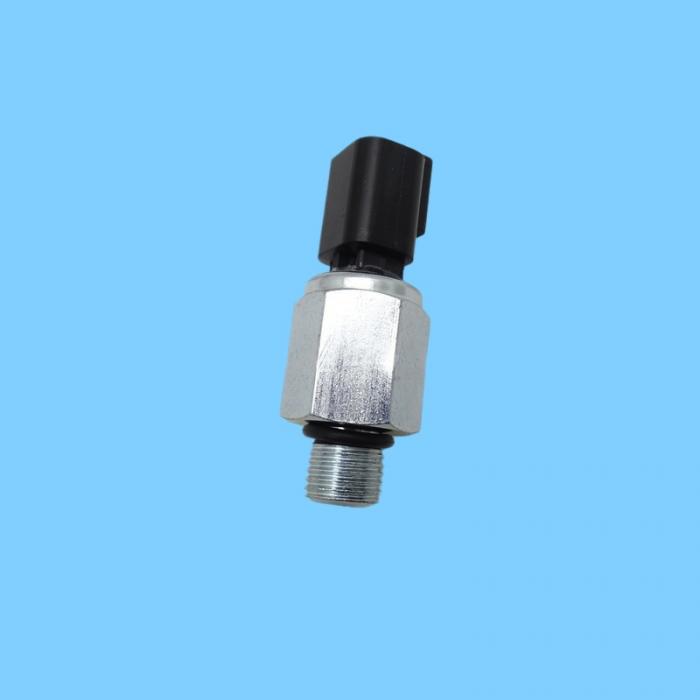

3969395 — The Cummins Engine Oil Pressure Switch/Sensor (also commonly referred to as an oil pressure sender) is an electronic pressure sensor (3-wire type) primarily used to monitor engine oil pressure and transmit an analog signal to the ECU.

I. Core Specifications

OEM Model: 3969395

Cross-Reference / Replacement Model: 2897324 (Directly interchangeable)

Electrical Interface: 3-pin connector (Power, Signal, Ground)

Thread Specification: 1/8-inch NPT

Operation Type: Piezoresistive analog signal sensor (Not a simple on/off switch)

Output Signal: 0.5–4.5V linear voltage (Higher pressure corresponds to higher voltage)

Operating Temperature: -40°C to 125°C

Material: Stainless steel housing + Copper threads

II. Applicable Engine Models

Primarily compatible with Cummins ISBe, ISDe, ISF, and QSB series electronically controlled diesel engines:

ISF3.8 (Foton Cummins light-duty trucks, construction machinery)

ISB5.9 / 6BT (Dongfeng Tianjin trucks, construction machinery, generator sets)

ISBe / ISDe (Buses, trucks)

QSB Series (Construction machinery, excavators, loaders)

III. Functions and Roles

Real-time Monitoring: Converts oil pressure into an electrical signal for transmission to the Engine Control Unit (ECU).

Instrument Display: Drives the oil pressure gauge on the dashboard to display real-time pressure values.

Low-Pressure Alarm: When pressure drops below a safe threshold (e.g., < 0.8–1.0 bar at idle), the ECU triggers the oil pressure warning light.

Engine Protection: In cases of critically low pressure, the ECU may limit engine torque or force an emergency shutdown to prevent cylinder scoring or bearing damage. IV. Common Faults and Diagnosis

**Fault Symptoms:**

Dashboard oil pressure warning light remains illuminated / flashes

Abnormal pressure reading on the instrument panel (showing zero pressure or full scale)

Reduced engine power; speed limitation activated

ECU reports a fault code (e.g., P0520, P0521, P0522, P0523)

**Simple Diagnostics:**

**Voltage Test:** With the ignition key in the "ON" position, measure the voltage on the signal wire. It should be approximately 0.5V. After starting the engine, the voltage should rise to between 1.0V and 3.5V and increase in proportion to engine RPM.

**Continuity Test:** Not applicable to this model (this is a linear sensor, not a simple switch).

V. Replacement Recommendations

**Key Replacement Points:**

Verify the correct part number: 3969395 or 2897324.

Confirm the specifications: 3-pin connector and 1/8 NPT thread.

Apply a small amount of engine oil to the threads during installation; tighten to a torque of approximately 15–25 N·m. Do not overtighten.
