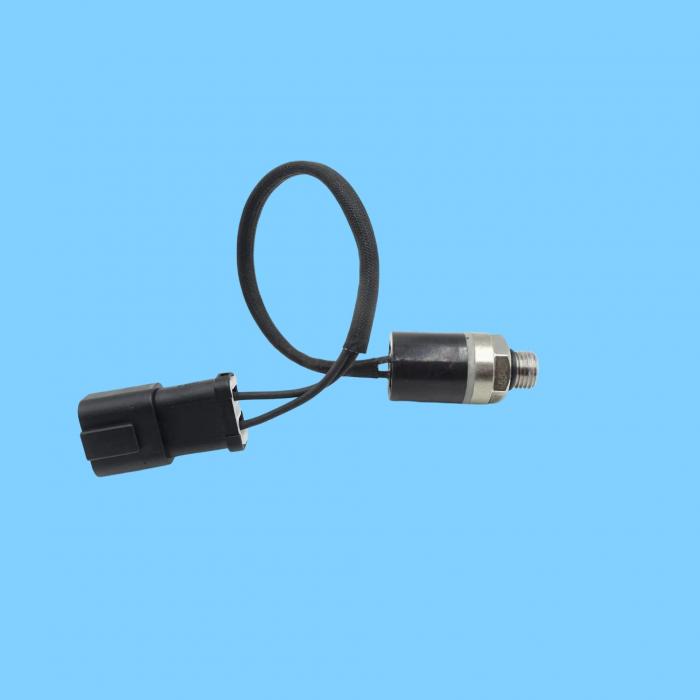

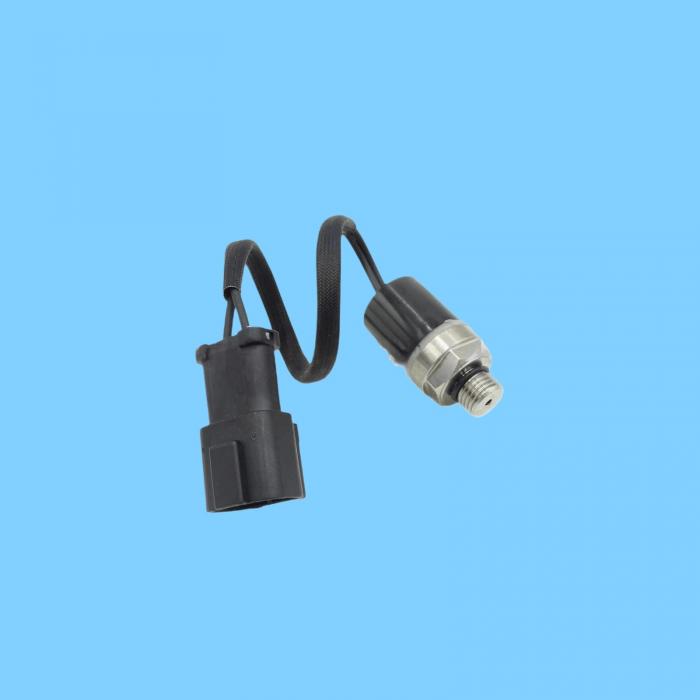

663-5545 and 421-43-22912 Komatsu Loader Idle Pressure Switch / Sensor: These two parts serve as functionally equivalent replacements, designed to monitor hydraulic fluid or engine oil pressure and control the engine's idle speed.

I. Core Information

Model Numbers: 421-43-22912 (Komatsu OEM Part No.), 663-5545 (Replacement Part No.)

Type: Low-Pressure Switch (Pressure Switch); a sensor with discrete (non-continuous) output.

Applicable Models: Komatsu Wheel Loaders

WA100-5, WA150-5, WA200-5, WA250-5, WA270-5

WA320-3/5, WA380-3, WA420-3, WA470-3, WA500-3

Compactors: WF550-3D, WF550T-3, etc.

Function: Monitors hydraulic system / engine oil pressure; triggers a signal when pressure drops below a preset threshold to command the engine to enter idle mode, thereby protecting the equipment.

II. Key Parameters (General Industry Reference)

Table

Parameter Specification

Operating Voltage DC 9–32V (Compatible with heavy machinery on-board power systems)

Pressure Range Low-pressure switch; typical setpoint is approx. 0.2–0.5 MPa (2–5 bar)

Protection Rating IP65/IP67 (Dustproof and waterproof); suitable for construction site environments

Operating Temperature -40°C to +125°C; suitable for high-temperature hydraulic fluid conditions

Material Housing: Alloy steel; Diaphragm: Oil-resistant rubber / Stainless steel; Impact-resistant and corrosion-resistant

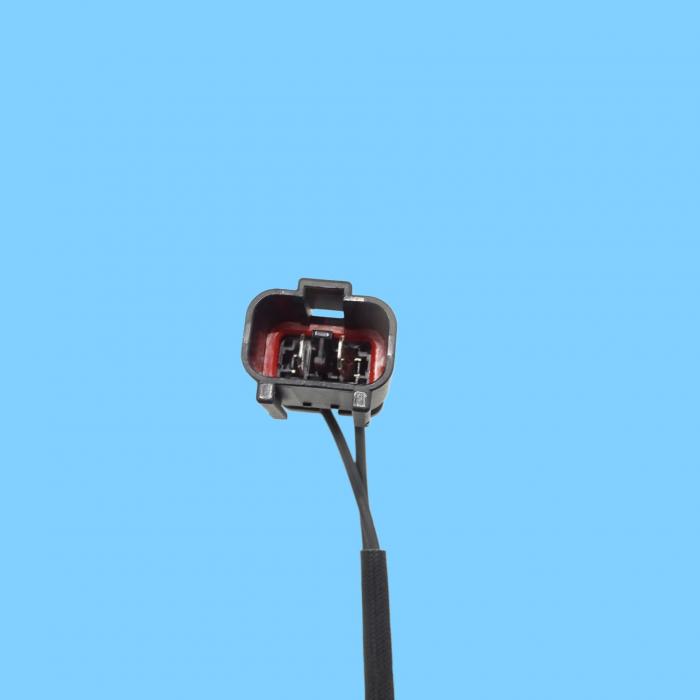

Electrical Interface Standard heavy machinery connector (3-pin / 4-pin)

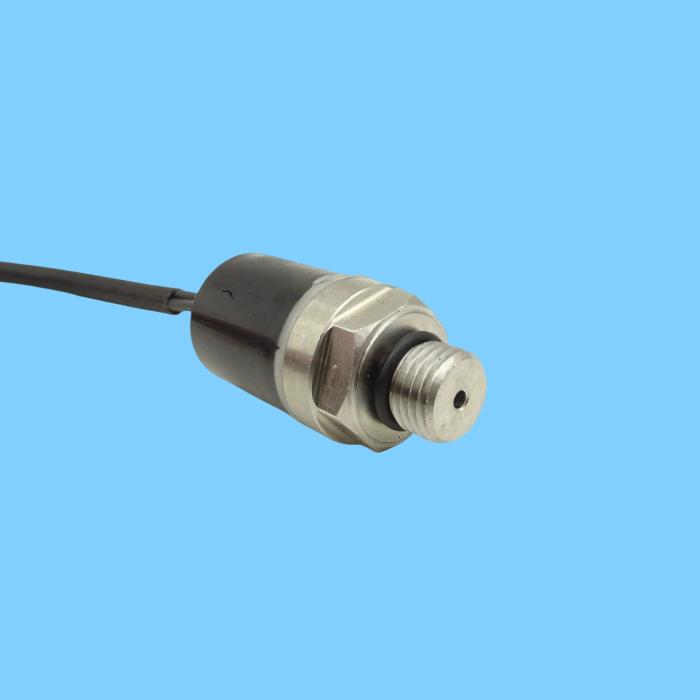

Thread Interface Common sizes: M12×1.5 or 7/16-20 UNF

IV. Installation and Replacement Guidelines

Power Disconnection: Before replacement, ensure the equipment's power supply is turned off to prevent short circuits.

Interface Cleaning: Prior to installation, clean the threads and sealing surfaces; replace the O-ring with a new one to ensure a leak-free seal. Torque Specifications: Tighten to the standard torque (typically 25–35 N·m) to avoid damaging the threads through overtightening.

Functional Testing: After installation, start the equipment to verify that idle speed control is functioning correctly and to check for any oil leaks.
