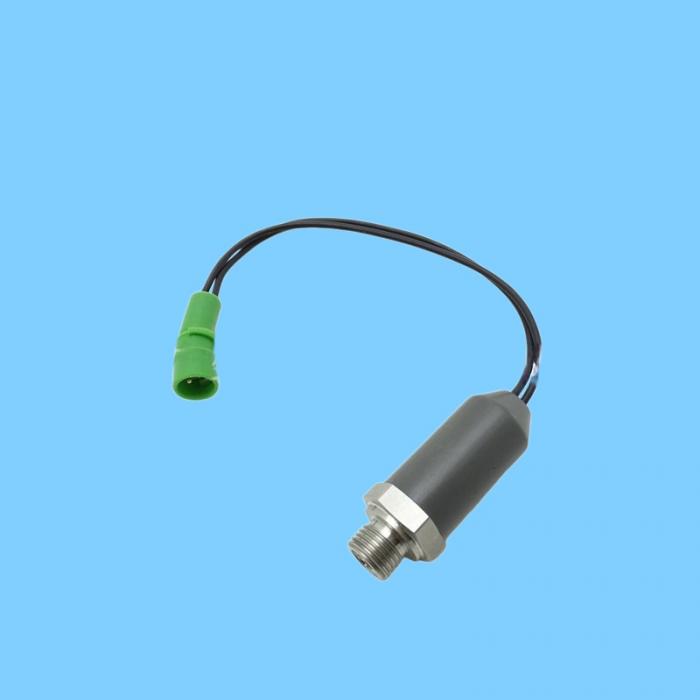

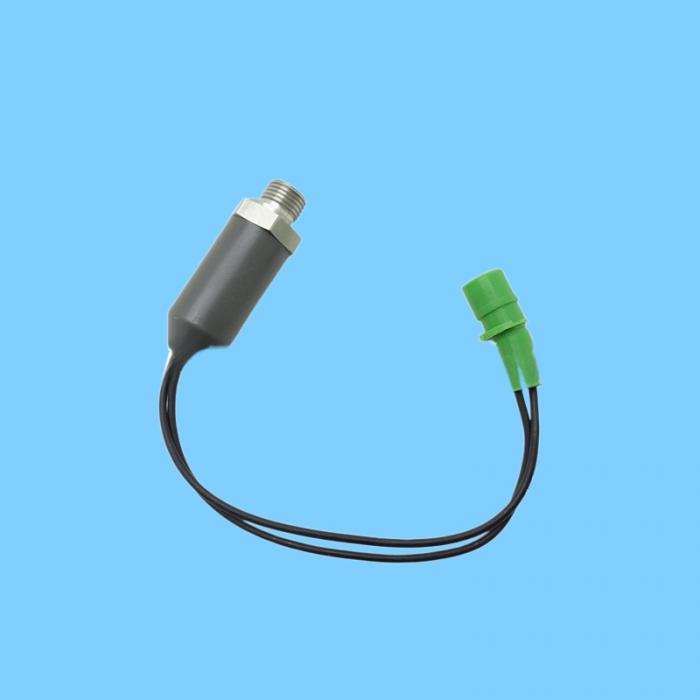

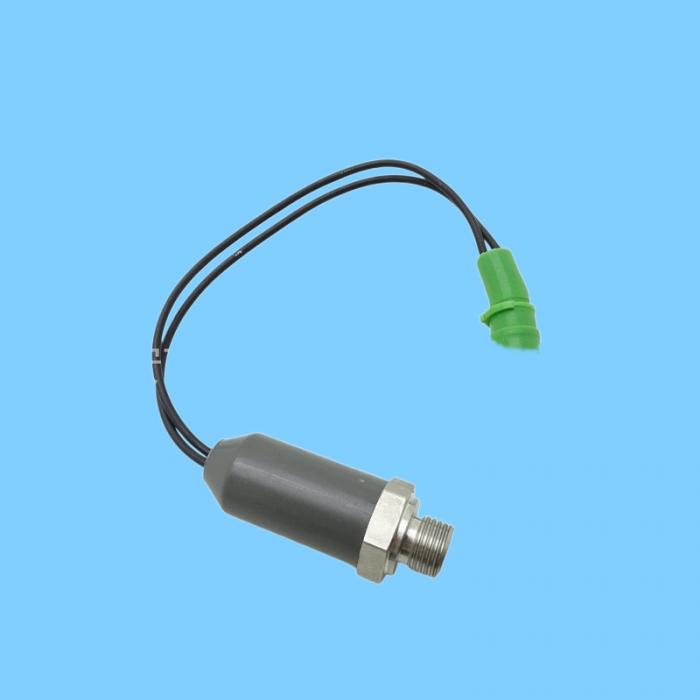

9X-0378 (9X0378)  pressure switch/sensor specifically designed for Caterpillar (CAT) construction machinery, primarily used to monitor hydraulic or engine oil pressure. I. Basic Information

Part Number: 9X-0378 (also written as 9X0378)

Type: Pressure Switch / Sensor

Brand: Caterpillar

Function: Monitors engine oil pressure and hydraulic system pressure; used for alarm triggering or control purposes.

Common Applications: Caterpillar excavators, loaders, generator sets, etc. (e.g., E320B/C/D, 330, 345 series, etc.)

II. Functionality and Operating Principle

Pressure Monitoring: Real-time sensing of pressure within oil circuits / hydraulic lines.

Switching Signal: When pressure falls below or rises above a preset threshold, internal contacts open or close, generating a discrete (on/off) switching signal output.

Protective Function: Triggers alarms or initiates automatic shutdown in the event of abnormal pressure, thereby preventing damage to the engine or hydraulic system.

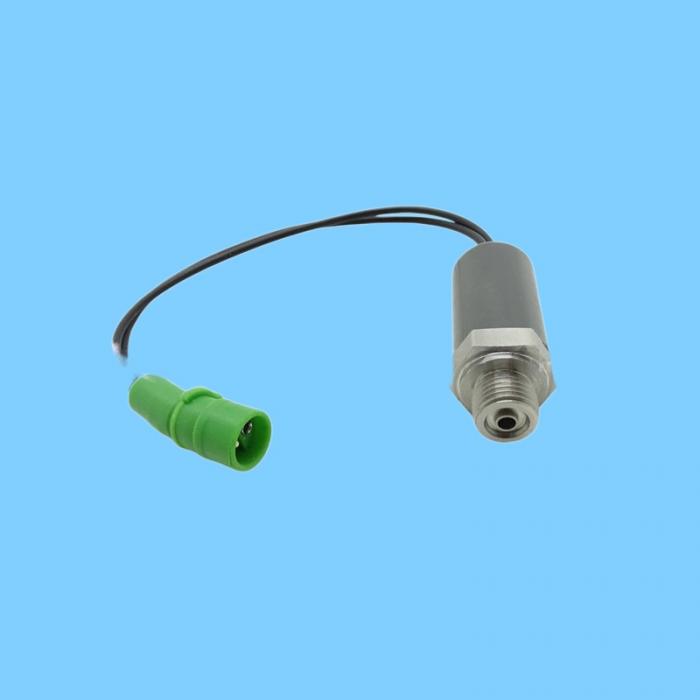

III. Appearance and Interfaces (Typical)

Threaded Port: Typically 7/16"-20 UNF thread (or a similar specification).

Electrical Connector: 2-pin or 3-pin square/rectangular waterproof plug (commonly brown, yellow, or gray).

Material: Body constructed from brass or stainless steel; seals are oil-resistant.

IV. Alternative / Interchangeable Models

192-0836, 201-1102, 274-6719, 2746719, 344-7390

459-3228, 9X-4276, 119-9985, 126-2938, 221-8859

V. Common Faults and Replacement Procedures

Fault Symptoms:

Engine oil pressure warning light remains constantly on or fails to illuminate.

Hydraulic system anomalies leading to automatic equipment shutdown.

Electrical circuit short circuits or oil leakage.

Replacement Guidelines:

Ensure system pressure is relieved and power is disconnected before removal or installation.

Clean the threaded port area, apply a small amount of engine oil to the threads, and tighten to the specified torque value.

Perform a test run after installation to check for leaks and verify that alarm functions are operating correctly.
