I. Basic Parameters

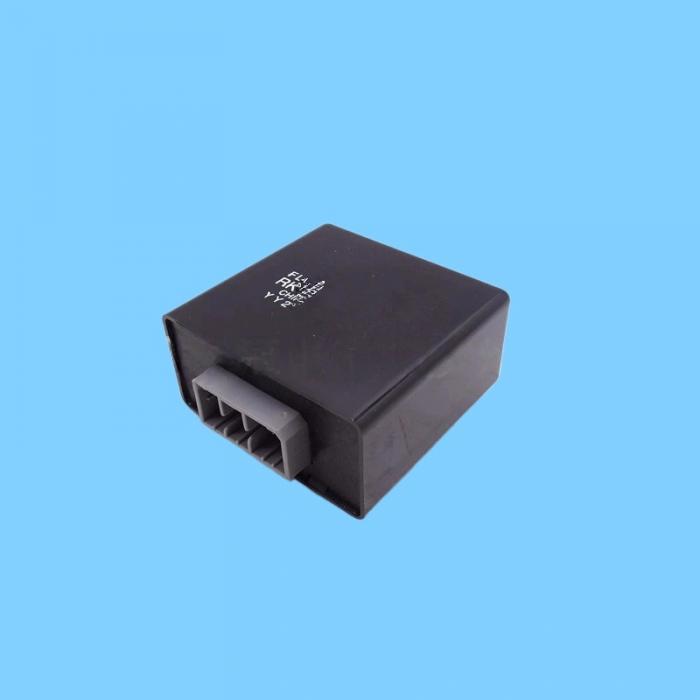

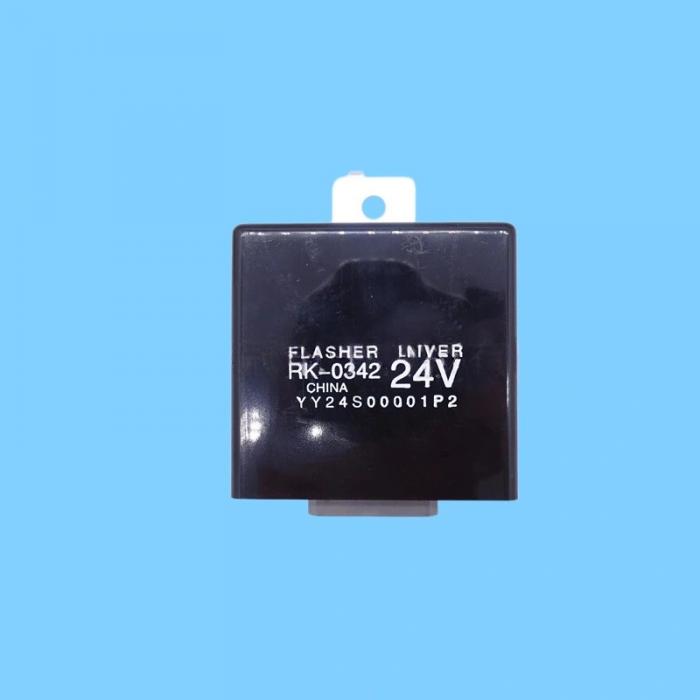

Part Number: YY24S00001P2; DC 24V; Genuine MITSUBA Electronic Flasher Unit

Function: Integrated flash control for both left/right turn signals and hazard lights (Computer-controlled flasher unit specifically designed for Kobelco excavators; features load detection; compatible with both LED and Halogen bulbs)

Related Series: YY24S00001P1 (Older model -8 Series); P2 is the new, upgraded version for the -8 and -10 Series

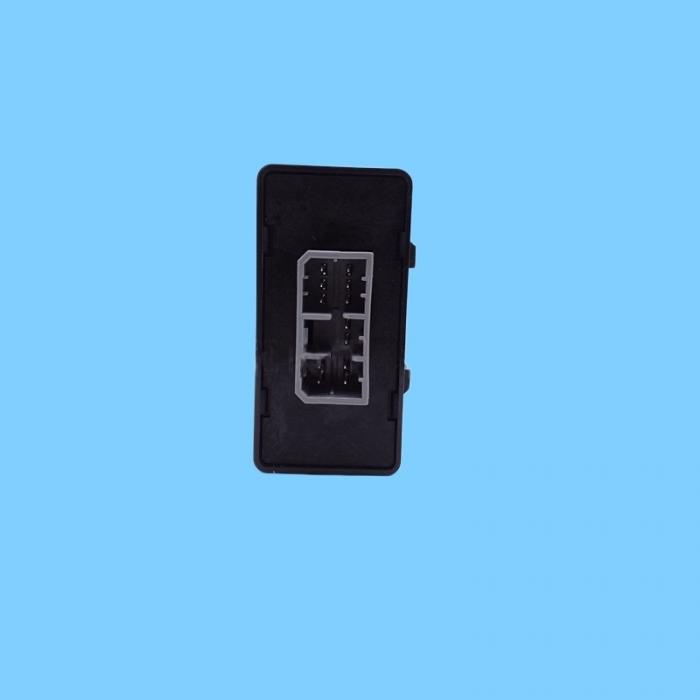

Pin Configuration: 5-pin proprietary direct-plug connector; cannot be replaced by standard 3-pin truck flasher units

II. Compatible Models (Full Kobelco Lineup)

-8 Series

SK130-8, SK140-8, SK200-8, SK210-8, SK250-8, SK260-8, SK330-8, SK350-8, SK460-8

-10 Series

Full range from SK130-10 to SK460-10; SR Short-Tail Models (SK135SR / SK140SR)

III. Pin Definitions (5-Pin Connector)

Power Supply (+24V)

Ground (Negative)

Left Turn Signal Output

Right Turn Signal Output

Hazard Light Control Line

IV. Fault Symptoms

Turn signal fails to flash (stays constantly on / fails to light up); Hazard lights show no response whatsoever = Flasher unit is defective

Only one side flashes; Flashing frequency is excessively fast = Missing bulb/circuit (open circuit); or internal driver circuit within the flasher unit is damaged

This unit is a specialized electronically controlled flasher; it is extremely difficult to substitute it by rewiring a standard 3-pin truck flasher unit.
