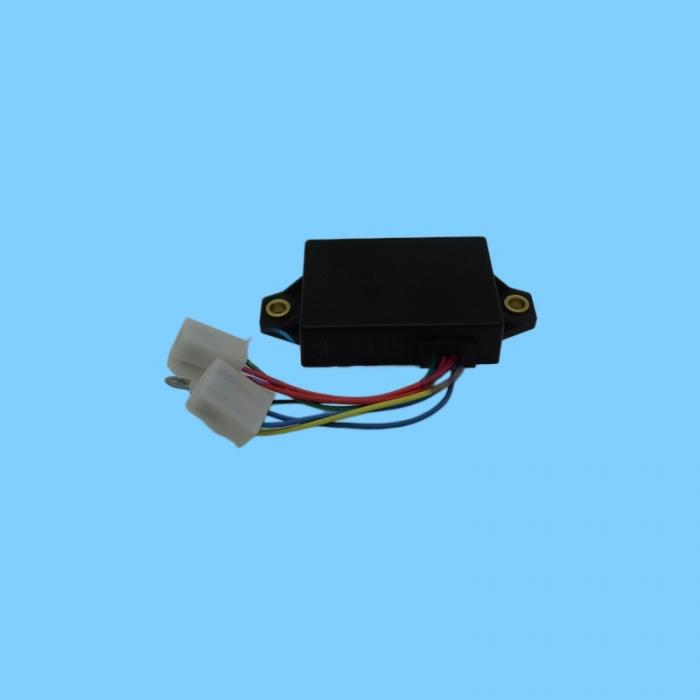

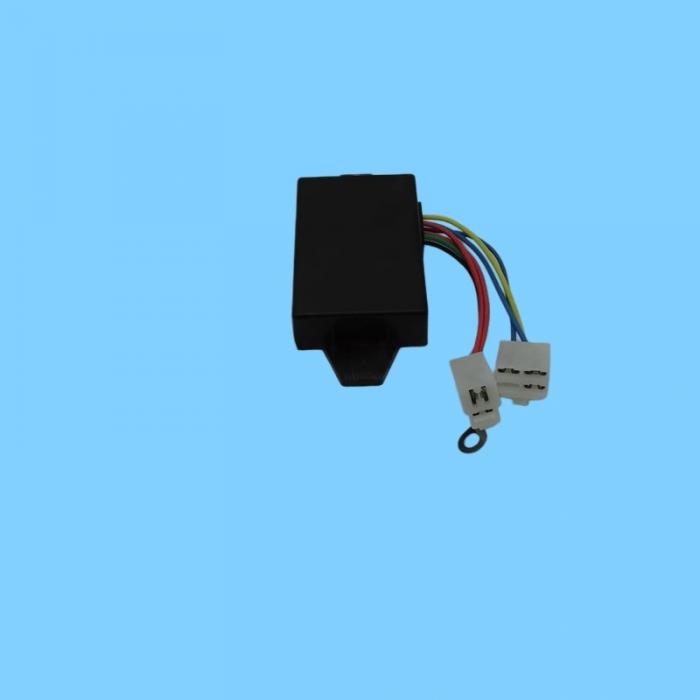

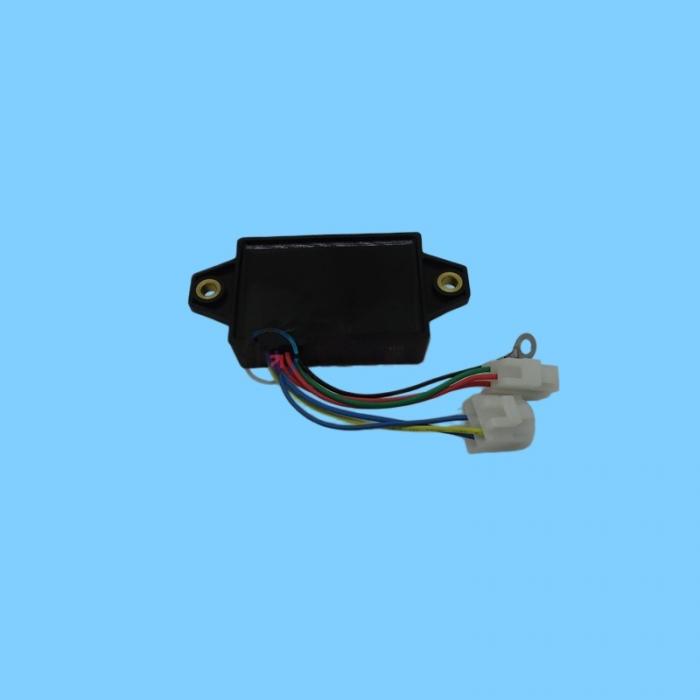

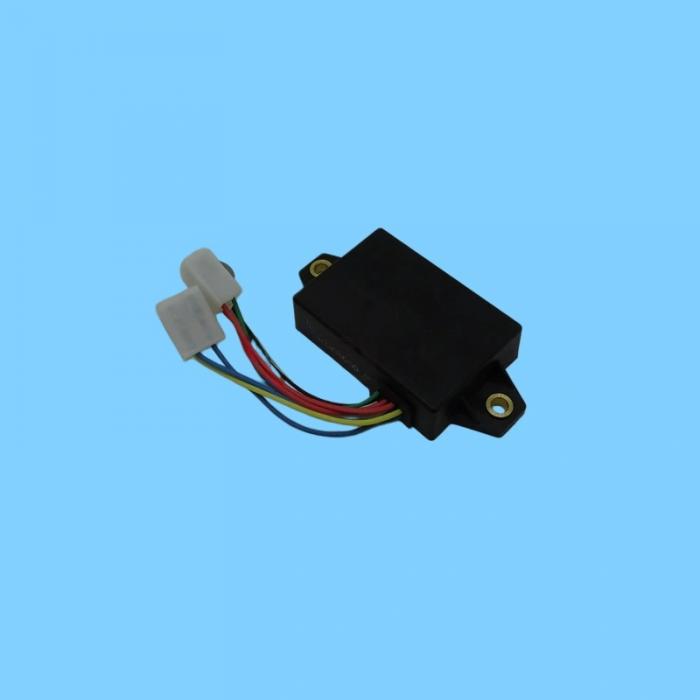

16A12-08000 (16A1208000)

Voltage:12VDC (Note: Unlike the previous model 16A11-17001, which is 24V)

Function:** 2-in-1 Integrated Control (Starter Motor + Glow Plug)

Current Rating:High Power (approx. 50–80A); *not* a low-current 16A signal relay

Construction:Metal base, heavy-duty terminals, bolt-mounted, vibration-resistant design

Compatible Models (Common Applications)：

Mitsubishi Engines：4DQ5, 4DR5, K4N, K5N, and other small diesel engines

Excavators:   CAT 307/307B, 308, 312 (12V systems), and small domestic excavators

Construction Machinery:  Forklifts, skid-steer loaders, and small generator sets

Functional Description：

Preheating (Glow): Supplies power to the glow plugs when the engine is cold, heating the cylinders to improve cold-start performance.

Starting (Starter): When the ignition key is turned to the "START" position, the main contacts engage to deliver high-amperage current to the starter motor.

Integrated Design: A single relay executes the complete "Preheat → Start" two-step control sequence, thereby simplifying the electrical control system for small 12V excavators.
