Model: 182550-3250 (1825503250; Replaces 1-82550-325-0) •

 Voltage: 24VDC (Standard voltage for construction machinery) •

Function: Integrated Glow Plug Delay Control + Starter Motor High-Current Control •

Current Rating: 80–120A (High Power), Solenoid-Switch Type •

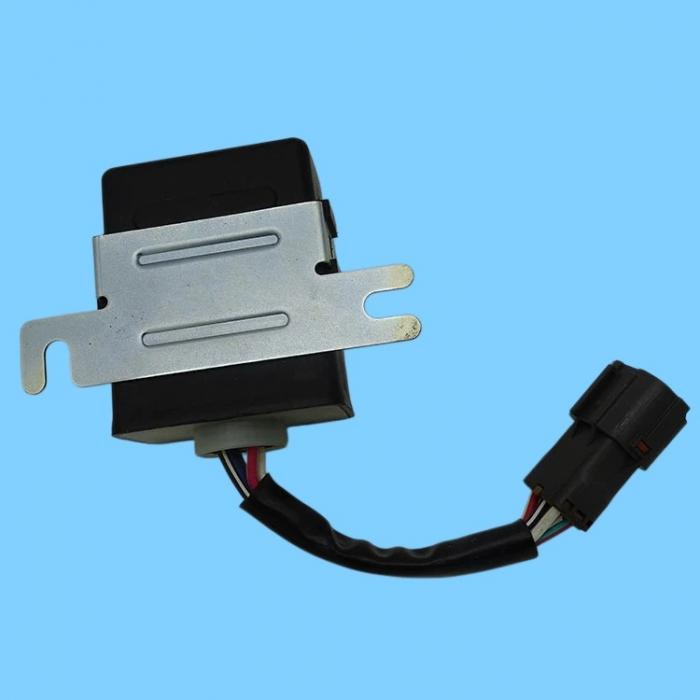

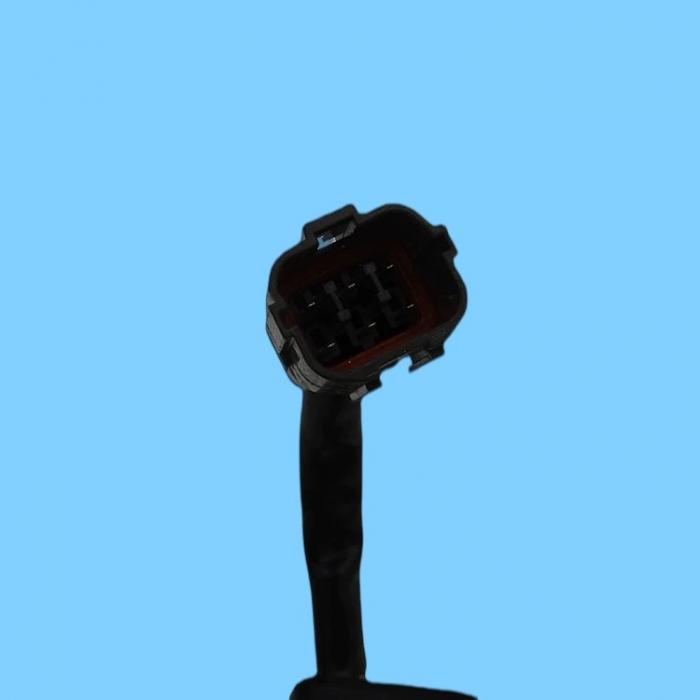

Terminals / Plug: 5-Pin Waterproof Plug, includes Mounting Bracket •

Protection Class: IP67 (Vibration-resistant, Dustproof, Waterproof) •

Dimensions / Weight: 120 × 70 × 40 mm; Approx. 0.5 kg •

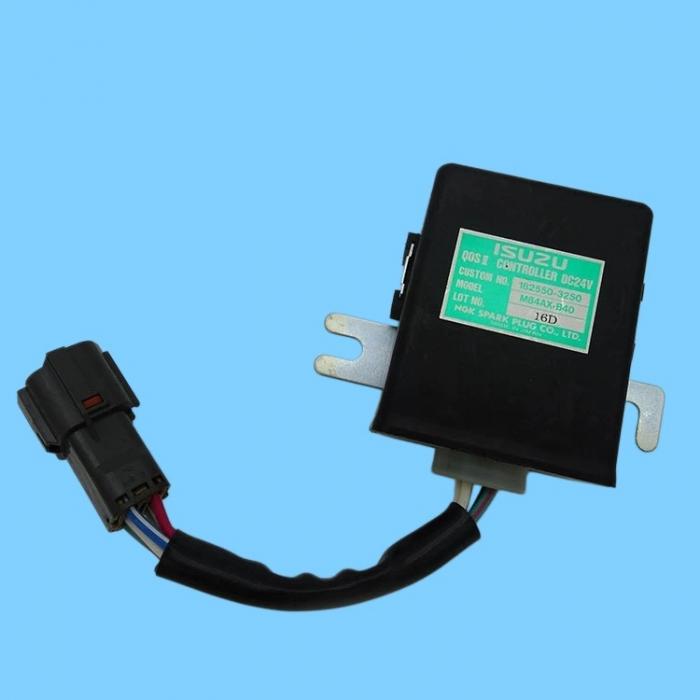

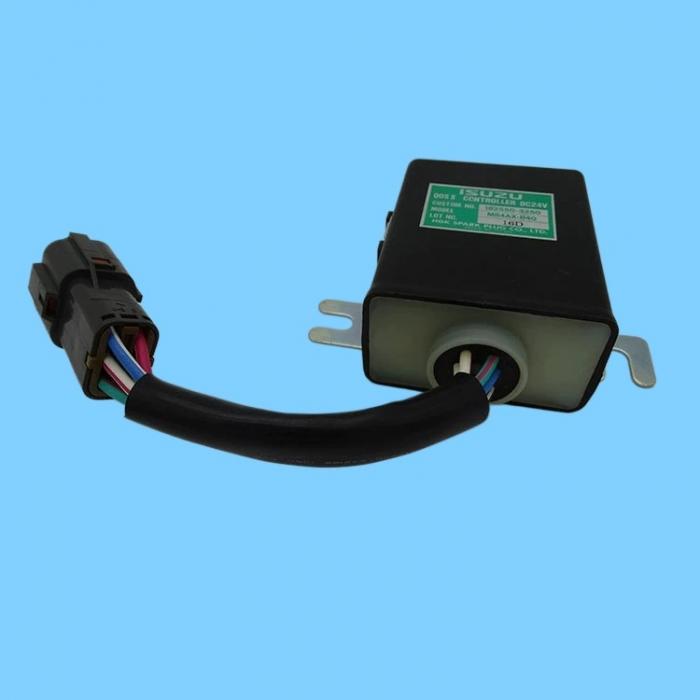

Operating Temperature: -30°C to +80°C • Appearance: [Image/Description]

Applicable Models: (Engine + Equipment)

Engines (Isuzu) • 4HK1, 6HK1, 6BG1, 4JG1, 4JG2 (Mainstream medium-to-large excavator engines)

Excavators / Construction Machinery •

Hitachi: ZX200-3, ZX240, ZX270, ZX330 •

Sany: SY75, SY135, SY225, SY235, SY335, SY365 •

John Deere: 135C, 180, 210, 470GLC, 600C, 800C

Functional Description (Distinction from Standard Relays)

1. Glow Plug Delay (Core Function): When the ignition key is turned to the "ON" position, power is automatically supplied to the glow plugs for 15–30 seconds (duration automatically extends in low-temperature conditions) to preheat the cylinders and improve cold-starting performance.

2. Starter Control: Once the preheating cycle is complete, turning the ignition key to the "START" position engages the main contacts, delivering high-current power (24V) to the starter motor.

3. Protection Functions:

◦ Prevents glow plug burnout caused by excessive preheating duration;

◦ Prevents unintended glow plug activation during engine cranking;

◦ Overcurrent / Short-circuit protection to safeguard the battery and electrical wiring.
