Model: 16A11-17001 (16A1117001)

Type: Dual-Function Time Relay (Pre-heat + Shutdown Delay)

Voltage: 24VDC

Compatibility:

Mitsubishi Engines; CAT Excavators (E307B, E307, etc.)

Functions (Two-in-One):

Pre-heat Delay: Controls the duration of power supply to the glow plugs, ensuring reliable starting in low-temperature conditions;

Shutdown Delay: Maintains fuel supply / ignition for a few seconds after the engine is switched off, ensuring a smooth and stable shutdown;

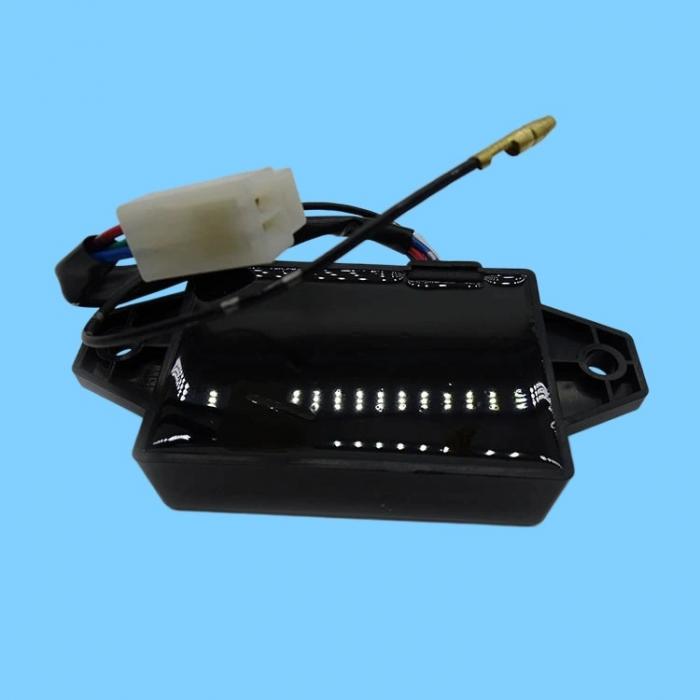

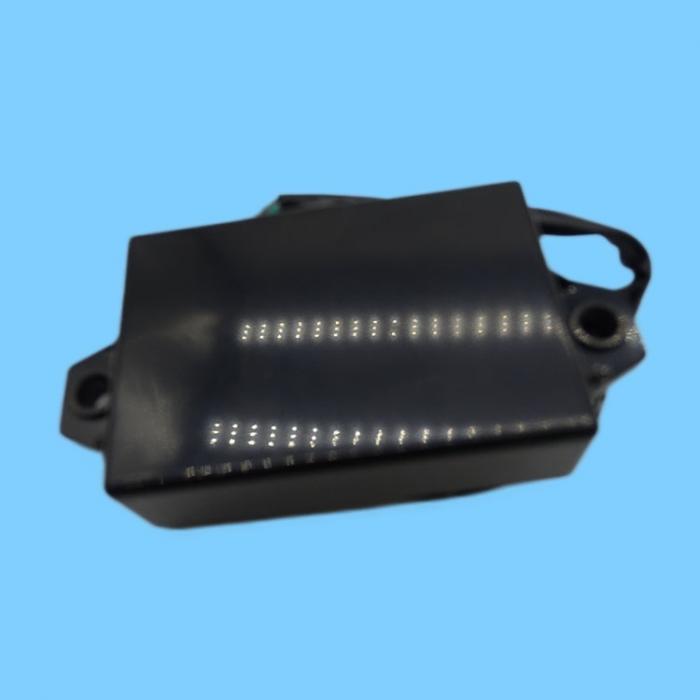

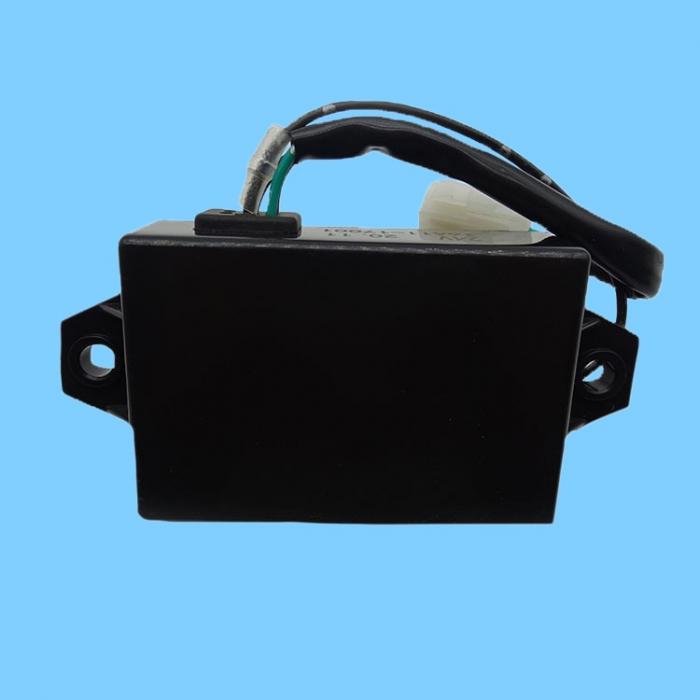

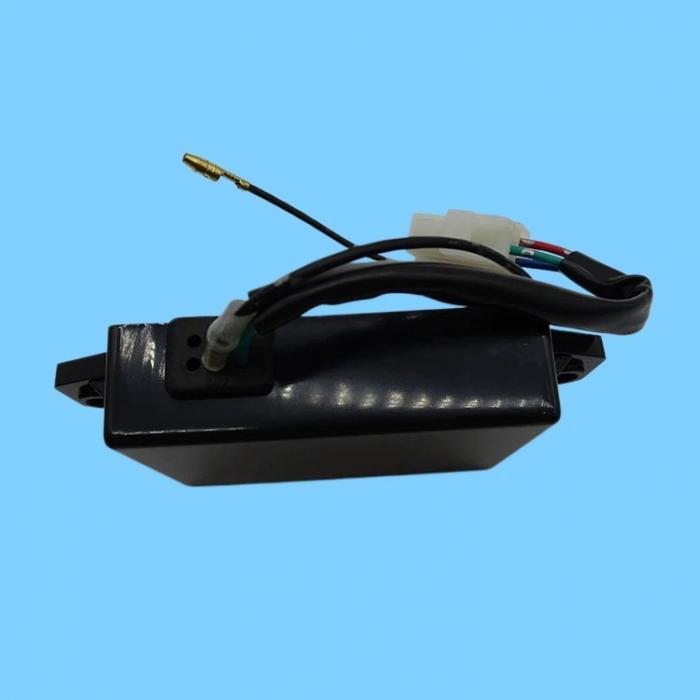

Construction: Black plastic housing, includes wiring harness connector, epoxy resin potted for vibration resistance and waterproofing; features a dedicated control module (not a standard blade-type relay).
