I. Core Parameters and Specifications

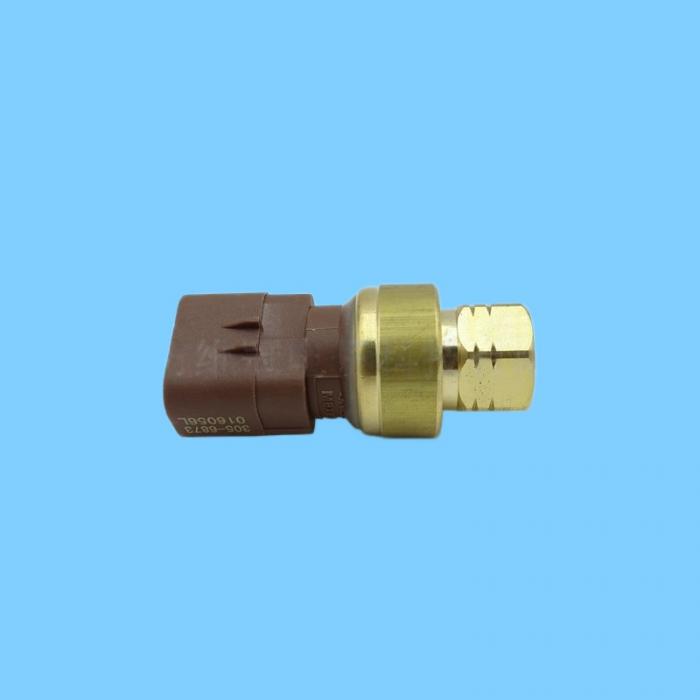

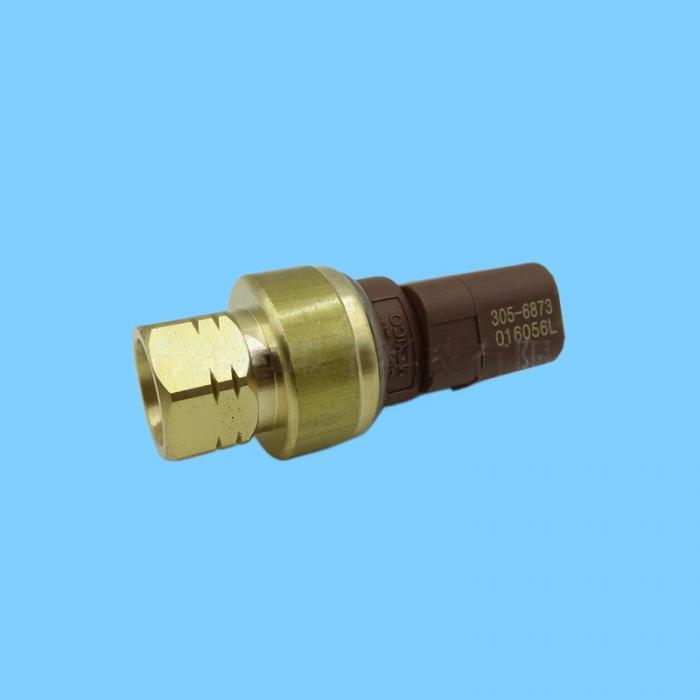

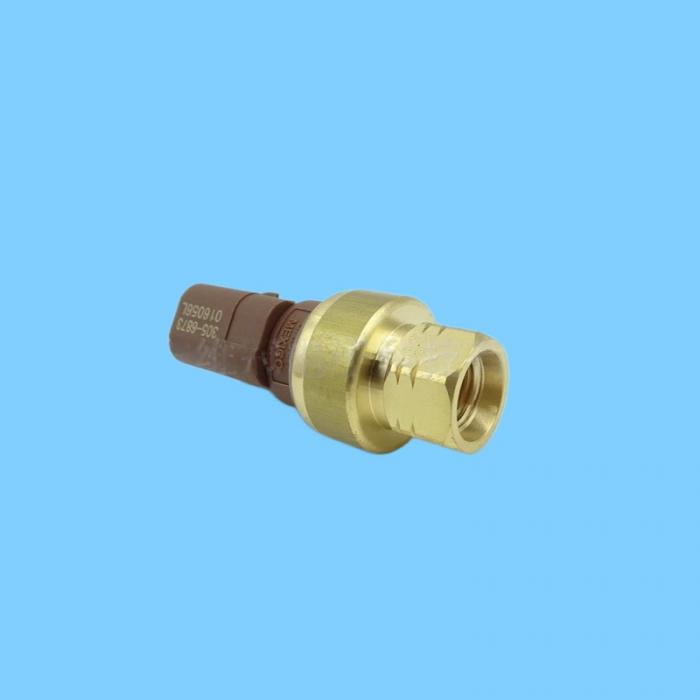

Manufacturer Part Number: 305-6873 (3056873, CA3056873)

Official Name: Pressure Sensor GP / Fuel Pressure Sensor

Technical Principle: Strain-gauge type pressure sensor; outputs an electrical signal directly proportional to the pressure.

Core Applications:

Monitors pressure within the low-pressure fuel line (at the fuel pump outlet and the front of the fuel rail).

Provides feedback to the ECM to enable precise regulation of fuel injection pressure.

Prevents starting difficulties and power degradation caused by insufficient fuel supply.

Electrical Characteristics:

Power Supply: 5V DC

Output: 0.5–4.5V analog signal (pressure and voltage exhibit a linear positive correlation).

Interface: 3-pin waterproof connector (Power + Signal + Ground).

Mechanical Parameters:

Housing Material: Brass alloy

Operating Temperature: -40°C to 125°C

Protection Rating: IP67 (Waterproof and dustproof)

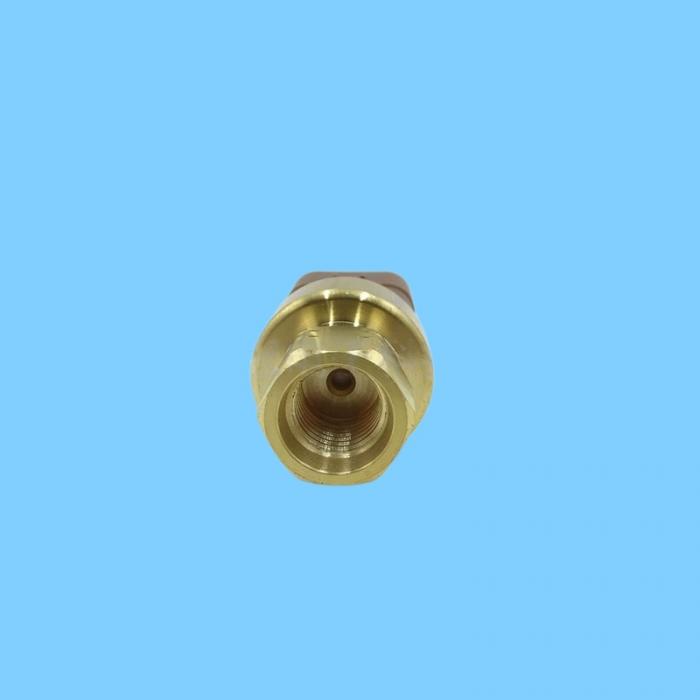

Mounting Thread: Compatible with proprietary Cat interfaces (must be matched to the specific machine model).

Measurement Range: 0–197 kPa (approx. 0–2 bar); specifically designed for low-pressure fuel systems.

Accuracy: ±1% FS (Full Scale) class; ensures accurate pressure feedback.

II. Compatible Engines and Equipment

Compatible Engines

C7, C9, and C-9 Series Diesel Engines

3512B, 3512C, and 3516B High-Power Engines

CG137-08 and CG137-12 Gas / Diesel Engines

Compatible Equipment

Excavators: 312D2, 313D2, 320D2, 323D2, 336D2, 340D2, 374F, and other D2 Series models.

Generator Sets: 3508, 3512B, 3516B, SR4, SR4B

Underground Mining Trucks: AD30, AD45B, AD45, AD55B, AD60 Others: Construction equipment such as R1600H, SPF343C, TH31-E61, etc.

III. Fault Symptoms and Diagnosis

Typical Fault Symptoms

The fuel pressure warning light illuminates; the ECM reports a fault regarding the fuel pressure sensor circuit, range, or performance.

Difficulty starting, unstable idling, sluggish acceleration, and reduced power output.

Abnormally high fuel consumption, emission of black smoke from the exhaust, and incomplete combustion.

The fuel pressure reading on the instrument panel appears abnormally high, abnormally low, or shows no display.

Common Fault Codes (CAT / Generic)

P0191/P0192/P0193/P0194: Fuel pressure sensor circuit / signal fault.

P0087: Fuel system pressure too low (related to this sensor).

Quick Diagnostic Steps

Power Supply Check: Measure the 5V reference voltage and ground connection at the sensor connector to verify they are within normal limits.

Signal Test: Start the engine and measure the output voltage (approx. 0.5V at 0 pressure; approx. 4.5V at full scale).

Physical Inspection: Check the connector for looseness, corrosion, or water intrusion; inspect the sensor housing for cracks; and verify that the installation sealing and torque meet specifications.

Comparison Test: Replace the sensor with a known-good unit of the same model to verify whether the fault is resolved (facilitating rapid identification of the fault source).
