I. Core Parameters and Specifications

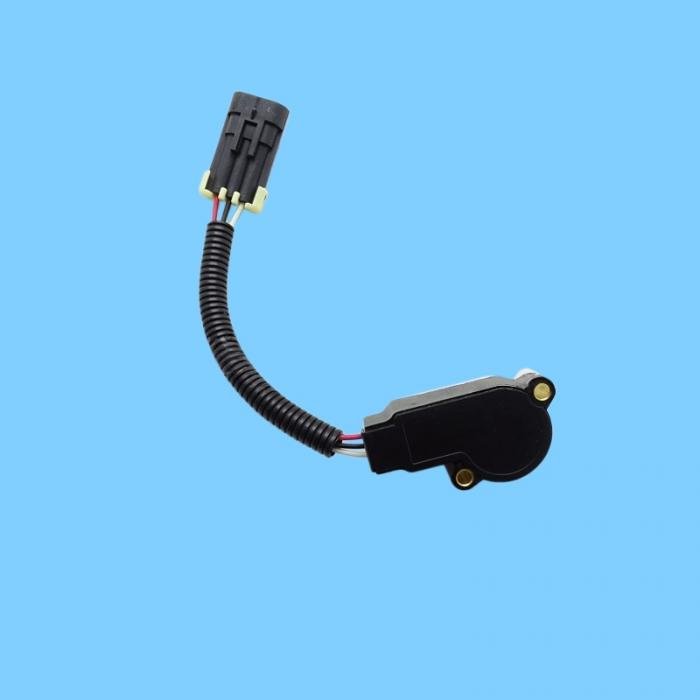

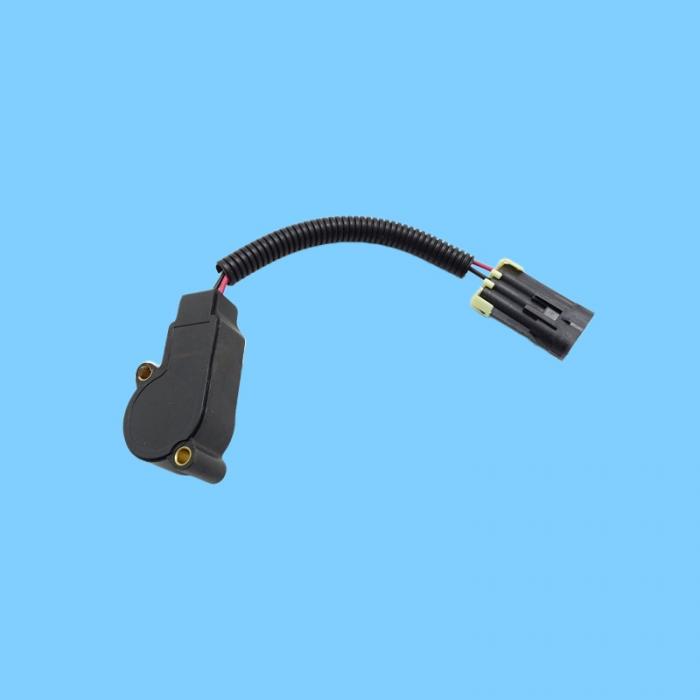

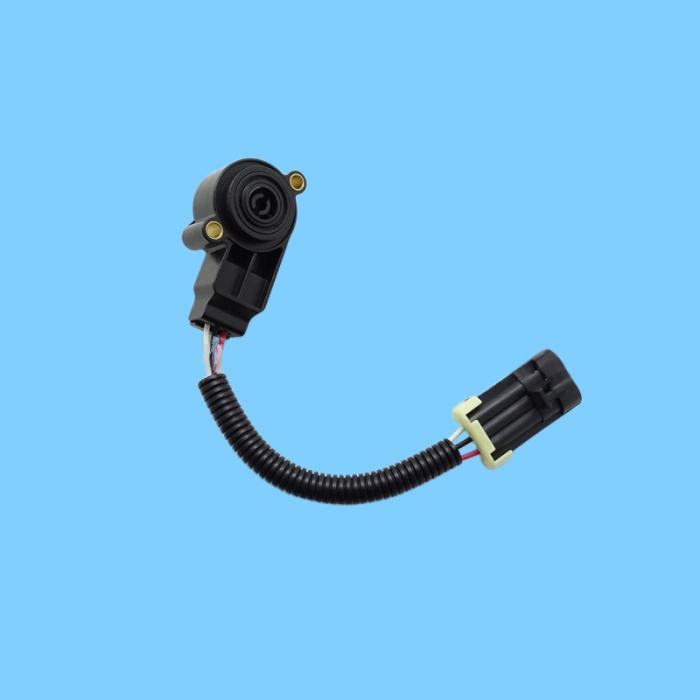

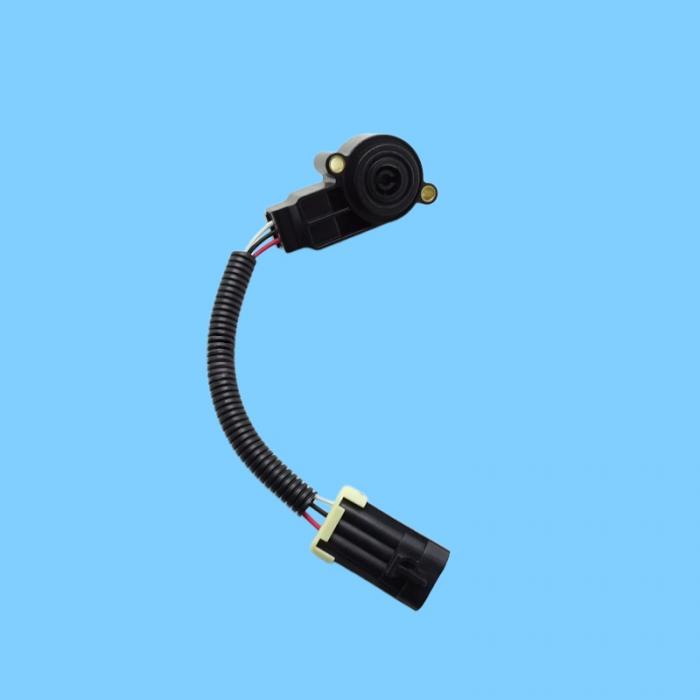

Part Number: 266-1468 (2661468, CA2661468)

Official Name: Medium Duty Rotary Position Sensor / Range Position Sensor

Type: Hall Effect / Potentiometer-type Rotary Angle Sensor (Shaftless Design)

Core Functions:

Monitors throttle pedal / throttle plate rotation angle (TPS function)

Provides feedback on hydraulic control lever / gear selector position

Outputs PWM / analog voltage signals to the ECM / Controller

Electrical: 5V reference voltage supply; PWM / analog voltage output; 3–4 wire waterproof connector

Mechanical: Rotary mount; IP67 protection rating; Operating temperature: -40°C to 125°C

Replacement Model: 710119AT (Generic Replacement)

II. Compatible Equipment (Mainstream Models)

Excavators

320C, 320D, 323D, 325D, 330C/D

Wheel Loaders

950G/H, 962G, 966G/H, 972G, 980G/H, 850G

Motor Graders

140H, 140M, 160M

Dozers

D6R, D7R, D8R

III. Fault Symptoms and Diagnosis

Typical Symptoms

Sluggish / unresponsive throttle response; unstable idle speed; abnormal power output

Jerky hydraulic movements; gear shifting failure; lack of drive power

ECM reports throttle position sensor circuit / range faults; abnormal gear sensor signals

Instrument panel displays incorrect throttle / gear position; warning light remains illuminated

Quick Check Procedure

Measure the 5V reference voltage and ground connection to verify they are normal

Rotate the throttle / control lever while measuring the output voltage with a multimeter (voltage should vary linearly with the angle)

Check the connector for looseness, corrosion, or water ingress; verify the sensor mounting gap and tightening torque
