1. Electrical parameters

Coil voltage: DC12V (no 24V version)

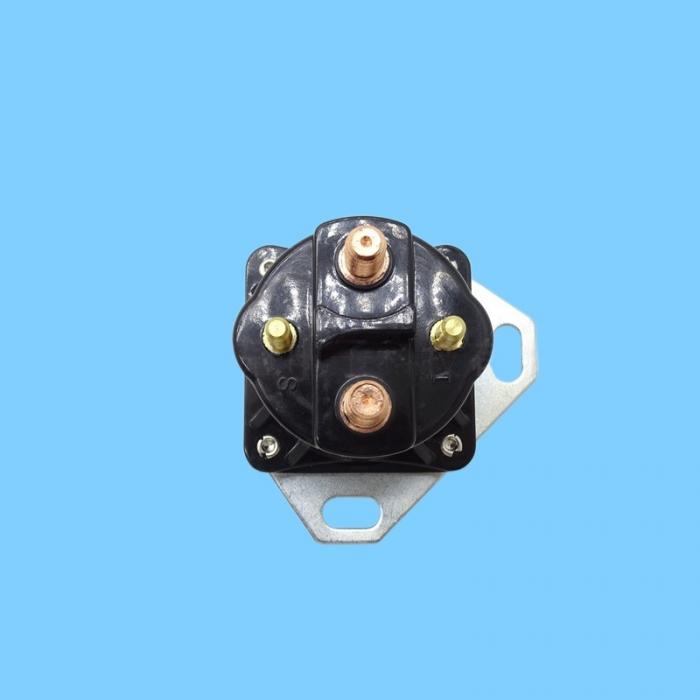

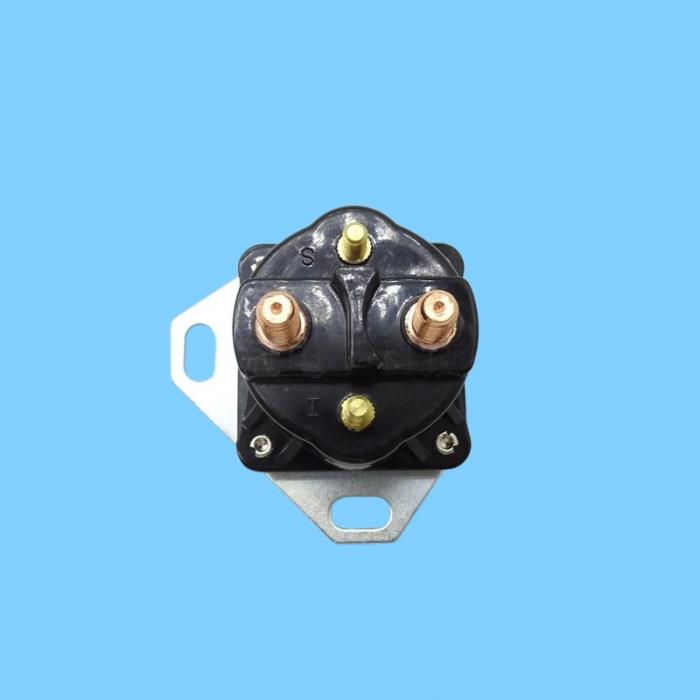

Main contact: Large copper post wiring (2 thick screws + 2 thin wire plugs), rated 120A, controls the high current of the starter

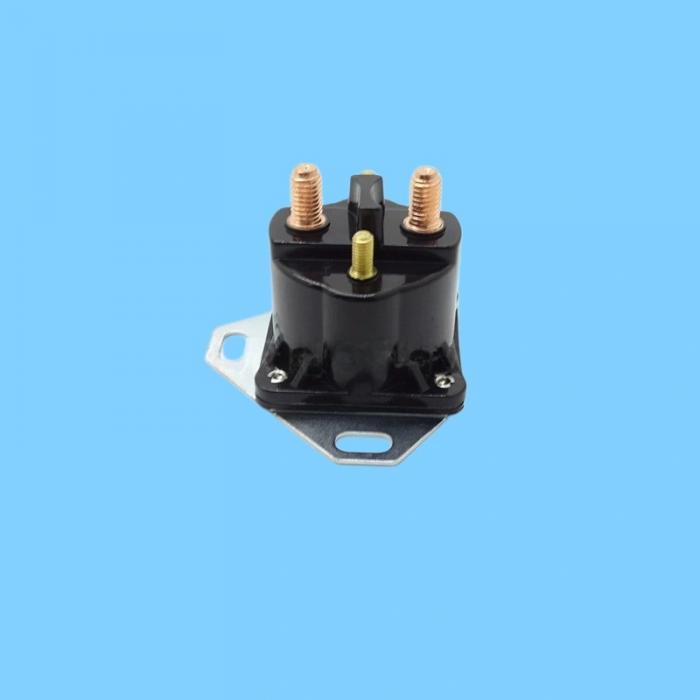

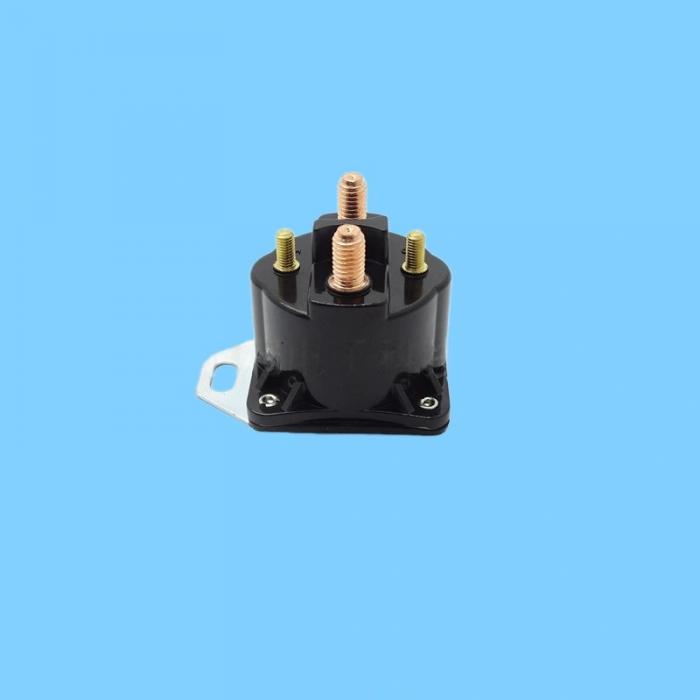

Structure: Iron shell is sealed and waterproof, single-ear iron plate is fixed and installed, high-power normally open starting type of engineering machinery

Alternative sub-numbers: RE164448, RE170320, AT68973 (universally interchangeable with the same specifications)

2. Adapted models (John Deere Diesel Engine | Excavator/Tractor/Loader)

1. Excavator

E130, E140, E210, E240, 200DLC, 210G, 240DLC, 270DLC, 330LC all series of Deere excavators (4045/6068 engine)

2. Agricultural tractors

5070E, 6105D, 6210, 6403, 7530, 8200, 8300 series Deere tractors

3. Loader/Grader

310K, 410K, 524K, 624J wheel loaders, 700J/850J bulldozers

3. Function

The key's low current controls the large current pull-in of the starter, protecting the ignition switch from ablation.

When the engine is started, the main circuit of the motor is instantly connected, and the power is cut off after the engine is started.

Comes with overload current limiter to prevent motor card from burning the wire harness due to high current

4. Common faults

No motor sound when turning the key: relay coil is open circuit

It clicks but the motor does not rotate: the main contact is ablated and the copper pillar is oxidized.

The relay is always stuck for a long time: the motor keeps turning and burning the starter
