I. Basic Parameters

Voltage: DC 12V (24V version not available)

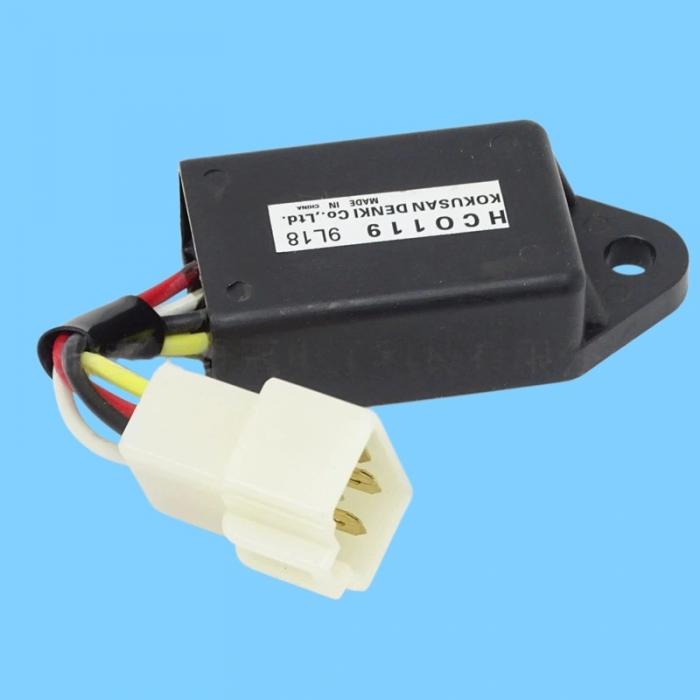

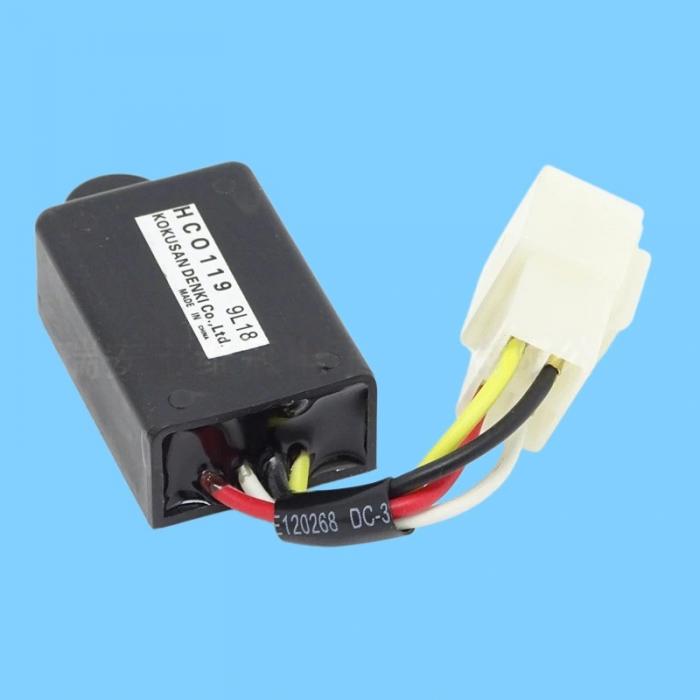

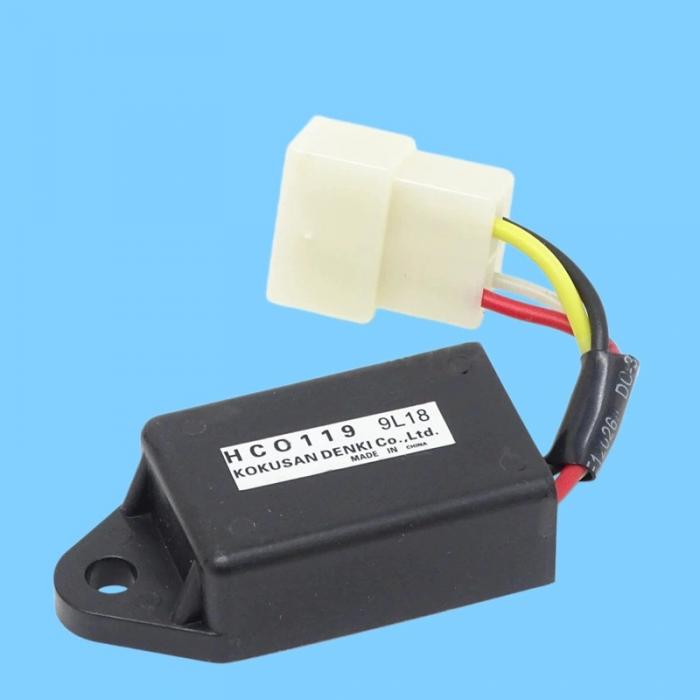

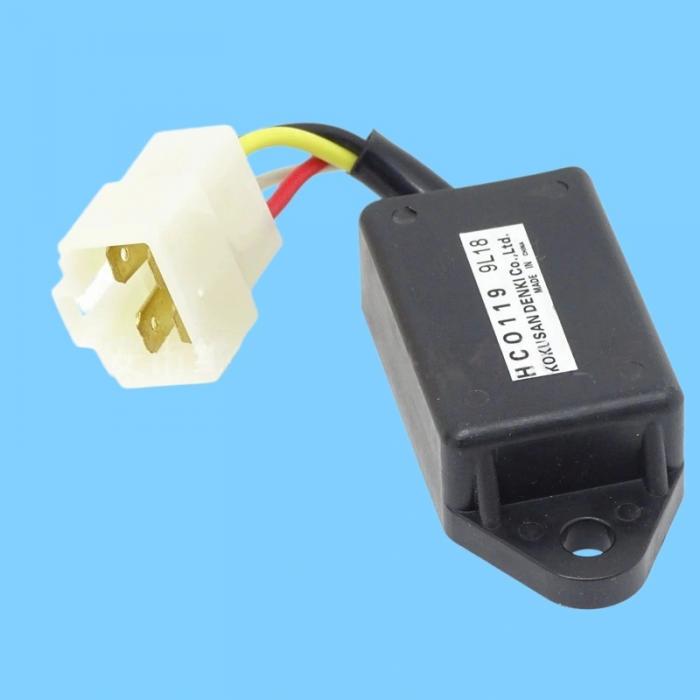

Plug: 3-pin white single connector (integrated brown wire output); single-lug mounting hole; compact black plastic housing

Cross-Reference: HC0108 = 4-cylinder engines; HC0119 = Dedicated for 3-cylinder engines

II. Compatible Yanmar Engines (Primarily 3-cylinder TN Series)

3TNV82, 3TNV84, 3TNV88 (full range of 3-cylinder diesel engines); limited compatibility with 3TNE88

Compatible Machinery (Complete Units)

Mini/Micro Excavators: Hyundai R35/R40, Sany 35/40, XCMG 35 (powered by 3TNV88)

Agricultural Machinery: Yanmar rice transplanters, small-scale harvesters, micro-loaders (under 3 tons)

Forklifts: Micro internal combustion forklifts (under 1.5 tons) powered by 3-cylinder Yanmar engines

III. Four Core Functions (HC0119 Exclusive: [Stall Protection]; HC0108 Lacks This Feature)

Cold-Start Preheating Timer: Low-temperature control system delays power cutoff to glow plugs, improving cold-start performance.

Delayed Shutoff: Maintains power to the fuel shutoff solenoid for a brief delay after the ignition key is turned off, ensuring a smooth, fuel-cut engine shutdown.

Stall Protection (Key Feature): Immediately cuts off fuel supply to shut down the engine in the event of engine over-speeding, sudden stalling, or an abnormal, rapid drop in RPM, thereby preventing engine damage (HC0108 does not include this function).

Starter Safety Lockout: Disengages the preheating circuit once the engine has fired up, preventing accidental re-engagement (grinding) of the starter motor while the engine is running.

IV. Common Faults

1. Sudden, unexplained stalling at idle; engine over-speeding: Internal stall detection chip is damaged.

2. Preheating indicator light remains constantly on; glow plugs burn out: Timing circuit has failed.

3. No engine cranking/starting response when turning the key: RPM detection circuit has malfunctioned.
