I. Basic Parameters

Original OE Part Numbers: 129930-77970 / YM129930-77970; Internal Model: R81NK; Voltage: DC 12V; Type: OGS Controller (Glow Plug Timer / Pre-heating Safety Module)

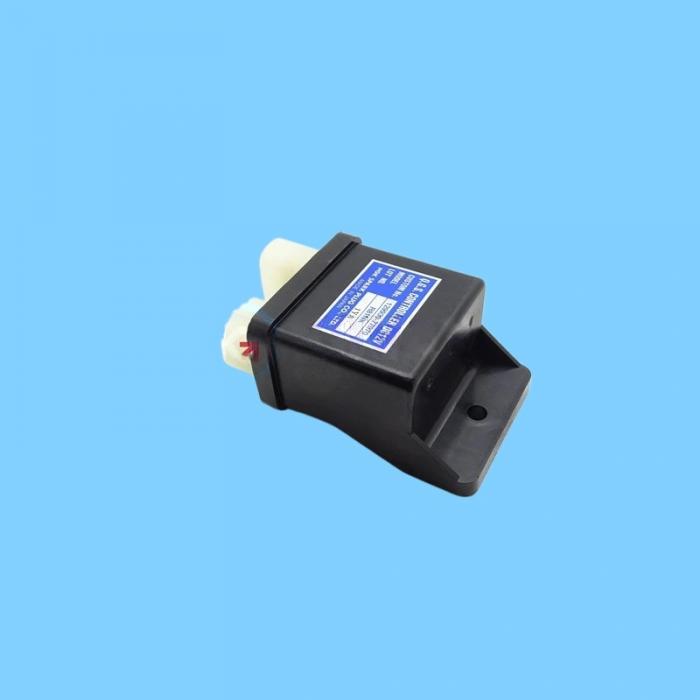

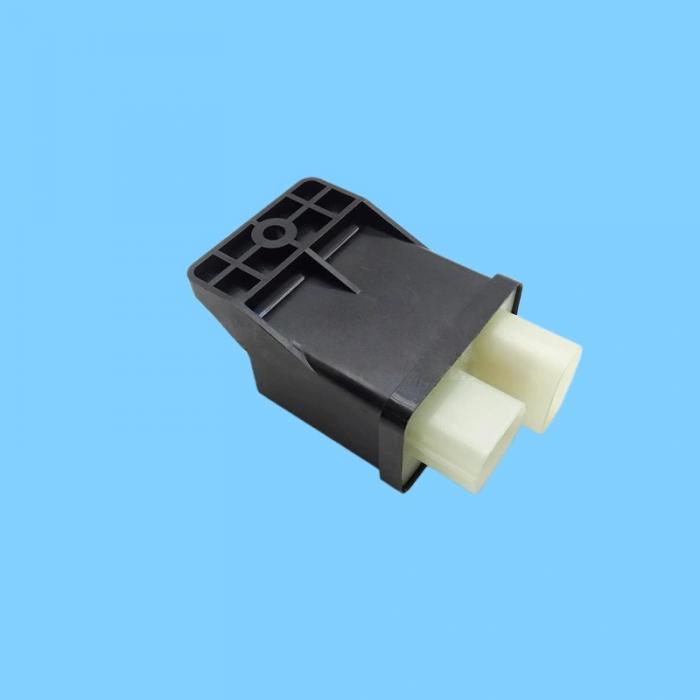

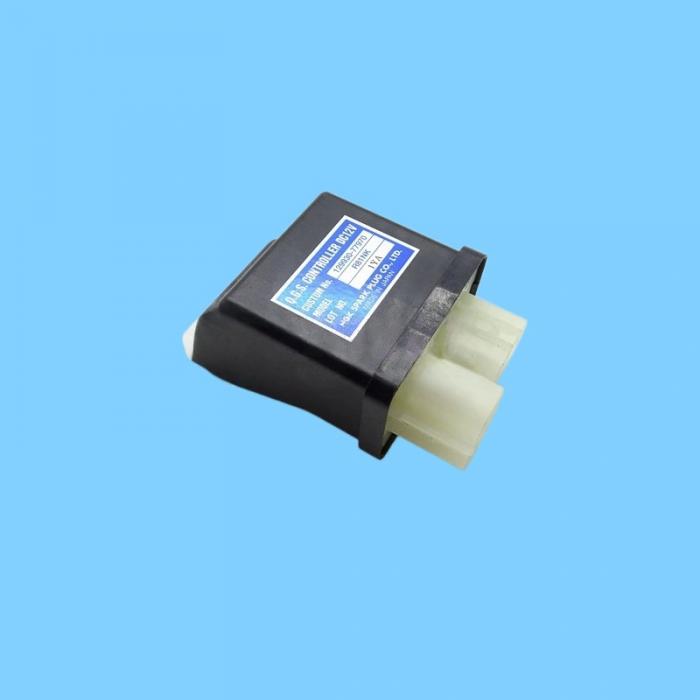

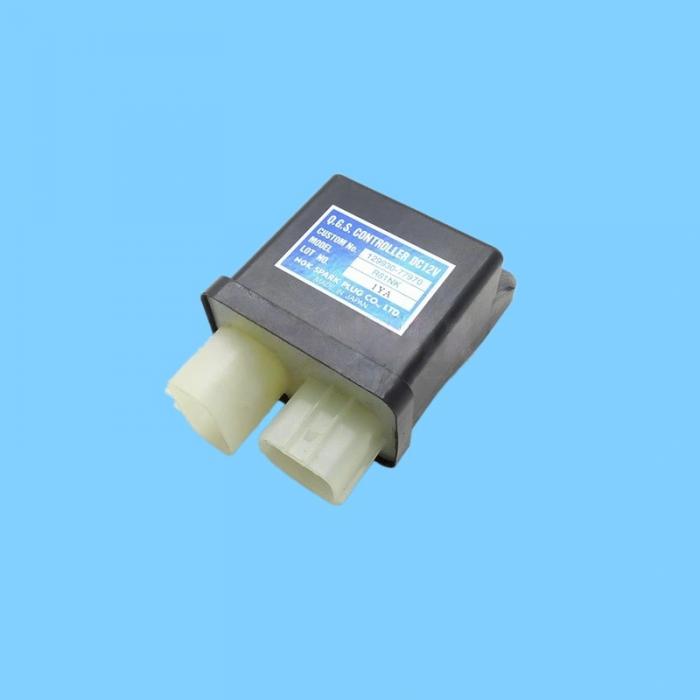

Connector: Dual-group, side-by-side white multi-pin sockets (one large, one small); Features a black plastic housing with mounting holes; Designed for direct, plug-and-play installation without the need for wiring modification.

Comparison: Compatible with the "Safety" series of Yanmar engines. *Note: Distinct from model 119802-77200 (R11EA); these two models are not interchangeable.*

II. Compatible Engines (Yanmar TN/TE Series)

4TNE94, 4TNE98, 4D92E, 4D94E, 4D98E (Full Series)

III. Compatible Equipment/Vehicles

1. Komatsu Forklifts

FD20-16, FD25-16, FD30-17, FD35A-16 (Powered by 4D98E engines)

2. Domestic Forklifts (China)

Hangcha CPCD20/CPCD25/CPCD30; Heli 2-3 Ton Internal Combustion Forklifts (Powered by Yanmar 4TNE98 engines)

3. Compact Excavators / Agricultural Machinery

Hyundai, Sany, and XCMG 6-ton class compact excavators, combine harvesters, and wheel loaders (Equipped with Yanmar 4TNE94/98 engines)

IV. Three Key Functions

Cold-Start Pre-heating Delay: Temperature-controlled regulation of glow plug activation duration to enhance cold-start performance in low-temperature environments.

RPM-Based Safety Lockout: Automatically cuts off the pre-heating circuit once the engine has fired up and the alternator has established RPM; Locks out the starter circuit when the engine is off, preventing accidental starter engagement (which can burn out the starter motor or damage the flywheel ring gear).

Low Voltage / Short Circuit Protection: Instantly locks out both the pre-heating and starter circuits in the event of a low battery charge or a wiring short circuit.

V. Common Faults

Pre-heating indicator light remains constantly illuminated (does not turn off); Glow plugs remain continuously active, leading to burnout/ablation: Indicates a failure within the internal timing circuit. Preheating functions normally, but turning the key elicits no response from the motor: Speed detection circuit failure.

Motor continues to run continuously after starting and does not shut off: Internal contacts are stuck.
