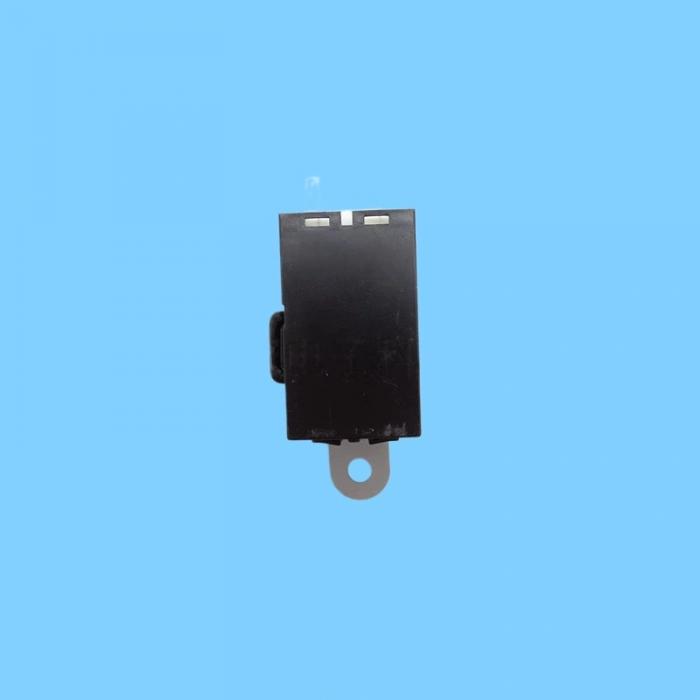

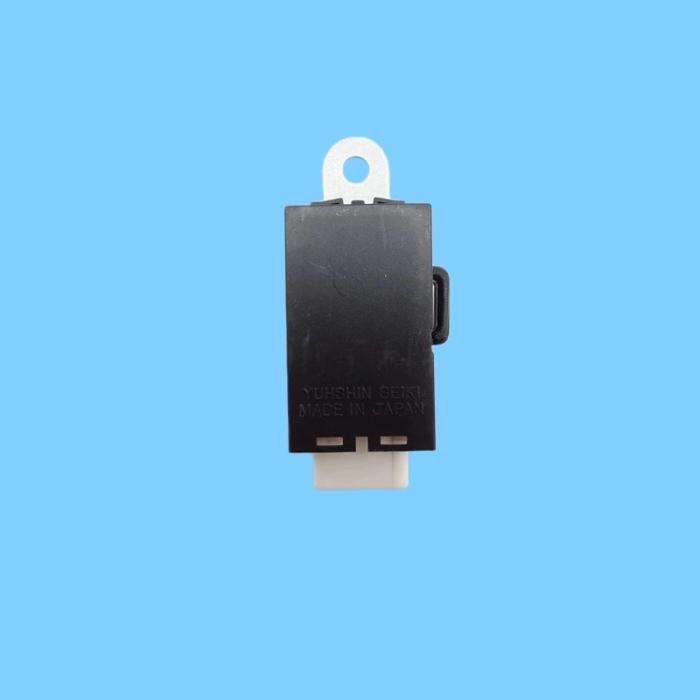

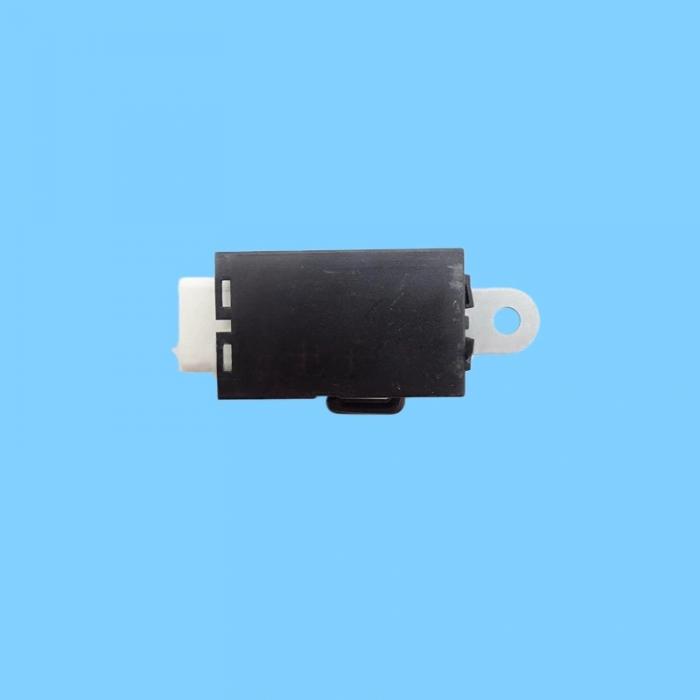

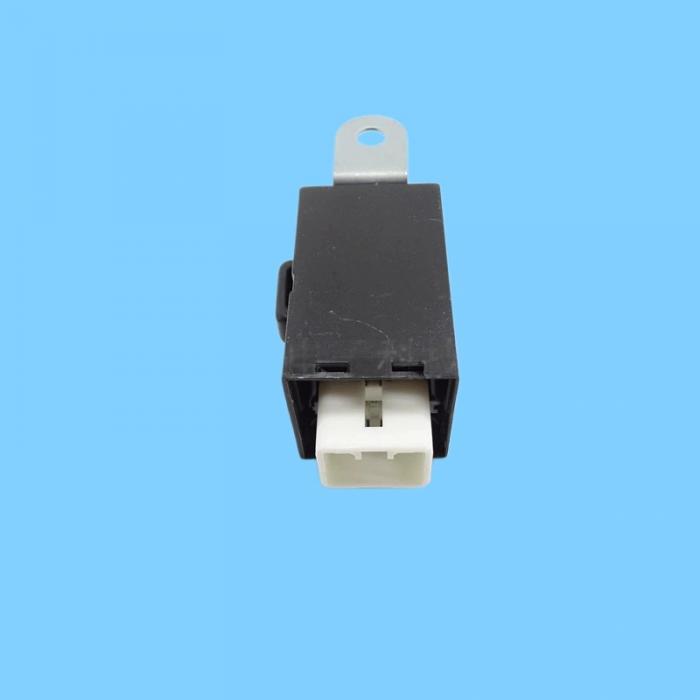

I. Model and Brand

Model: 5H492-41350 (Kubota OEM Part Number)

Brand: Kubota (Primarily manufactured by Denso)

Common Names: Pre-heat Timer, Start-Time Relay, Glow Timer Relay

II. Core Parameters (Typical Values)

Voltage: 12V DC (Commonly used in small Kubota machinery)

Function: Power-on Delay → Controls Glow Plugs + Starter Circuit

Delay: Approx. 5–15 seconds (Adjustable / Fixed)

Terminals: 4-pin / 5-pin Waterproof Connector

Housing: Sealed black plastic casing with mounting tabs; vibration-resistant and dustproof

Operating Temperature: -30°C to +80°C

III. Applicable Models (Kubota)

Harvesters: 788, 888, 988 Series

Tractors: BX Series, B Series, L Series, and other small diesel models

Engines: D1105, D1305, V3600, etc.
