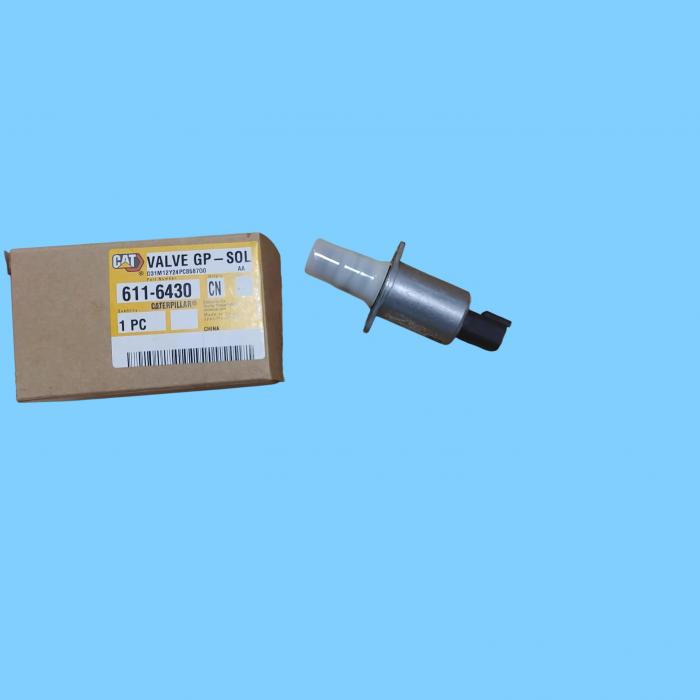

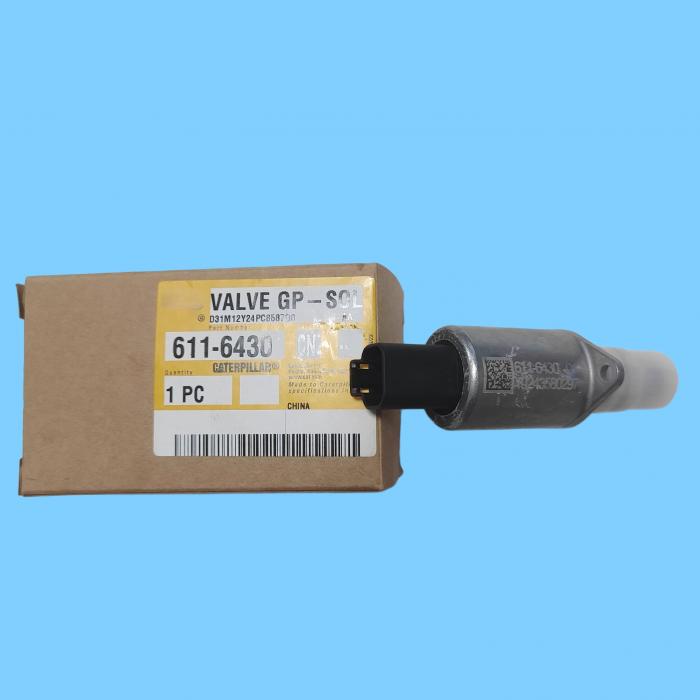

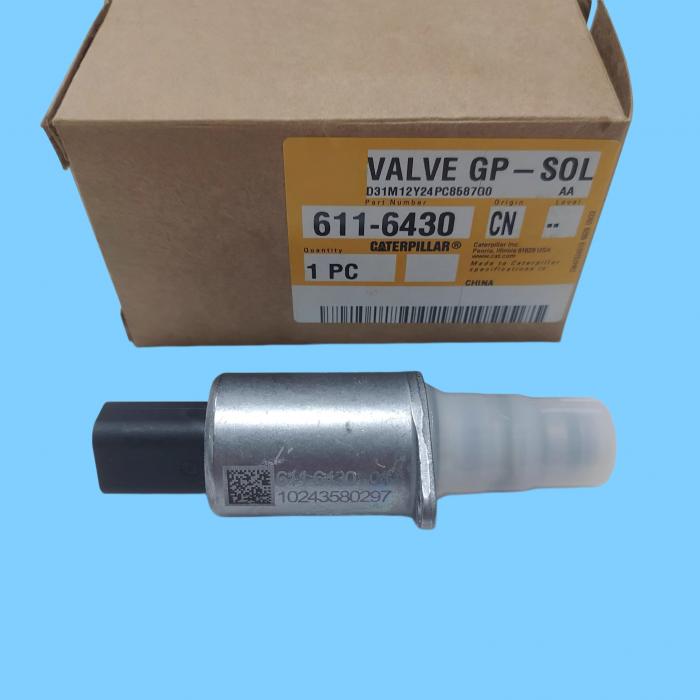

611-6430 Caterpillar Hydraulic Proportional Solenoid Valve / Pilot Solenoid Valve — Used for hydraulic system control in the new generation GC/GX series excavators; serves as a core actuating component for the main control valve and hydraulic pump.

I. Key Specifications

Model: 611-6430 (6116430)

Brand: Caterpillar

Type: Proportional Solenoid Valve / Hydraulic Pilot Solenoid Valve

Voltage: 24VDC

Function: Receives signals from the ECM (Engine Control Module) to regulate hydraulic pilot pressure, thereby precisely controlling the flow rate and speed of operations such as boom, stick, bucket, and swing movements.

Installation Location: On the main hydraulic control valve (Main Control Valve) or directly on the hydraulic pump body.

II. Compatible Models (Mainstream)

New Generation GC/GX Series Excavators: 312GC/GX, 313GC/GX, 315GC, 316GC/GX, 320GC/GX, 323GC/GX, 326GC, 330GC, 336GC, etc.

Wheeled Excavators / Material Handlers: M313, M314, M315, M318, MH3022, MH3024, MH3040, etc.

Engines: C4.4, C6.6, C7.1, and other electronically fuel-injected models.

IV. Common Faults and Diagnostics

Fault Symptoms: Weak operation/lack of power, uncoordinated compound movements, boom drift (dropping), erratic speed (fluctuating between fast and slow), abnormal noise from the main control valve.

Diagnostic Methods:

Measure the coil resistance (normal range: approx. 10–25Ω).

Inspect the connector pins for oxidation, and check the wiring harness for damage or short circuits.

Use a diagnostic tool to read pilot pressure data and compare the pressure differential between left and right-side operations.
