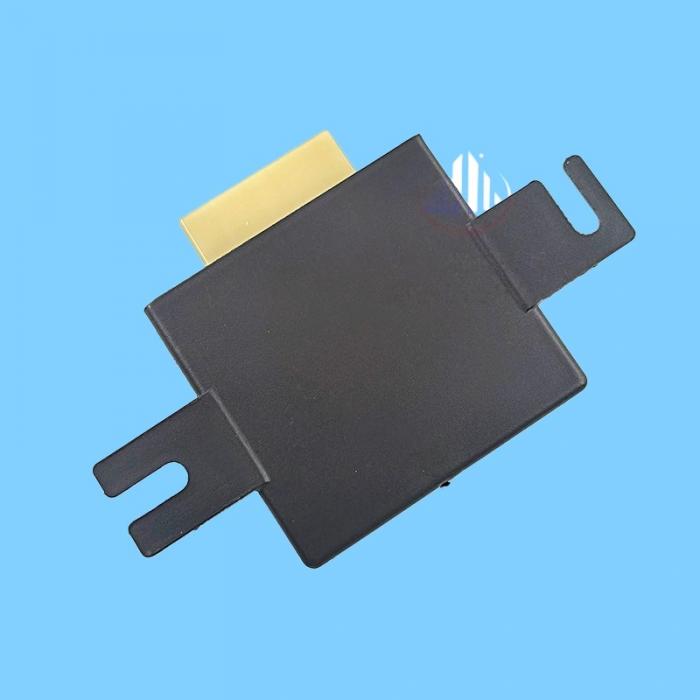

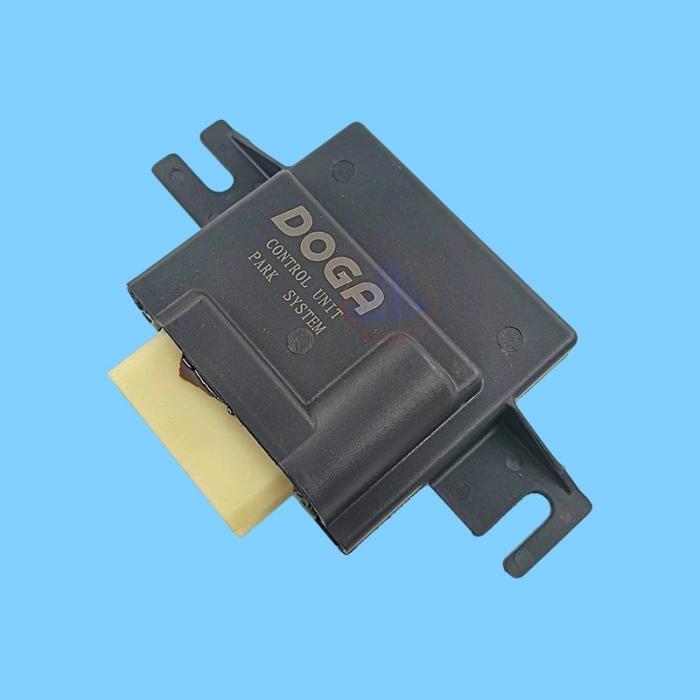

424-0338 (4240338) Caterpillar-specific wiper control relay assembly is primarily utilized in the wiper systems of heavy machinery (such as excavators). It is responsible for controlling wiper speed, start/stop operations, and the washer fluid function, serving as a critical component for ensuring clear visibility during operations in harsh working conditions. I. Core Parameters and Specifications

Model: 424-0338 / 4240338

Type: Wiper Control Relay Assembly

Compatible System Voltage: 24V (Standard configuration for heavy equipment)

Interface: 13-pin electrical connection; compatible with OEM wiper control modules

Material: Polyvinyl Chloride (PVC) housing; designed to withstand the harsh operating environments typical of heavy machinery (dust-proof, moisture-proof, and vibration-resistant)

Core Function: Controls multi-speed wiper operation, intermittent wiping, and synchronized washer fluid spraying

Compatible Models: Caterpillar 320D2, 323D2, 329D2, 330D2, 336D2, and similar models; compatible with C7.1 and C9 engines

II. Replacement and Selection Guidelines

Table

Replacement Type Recommended Model / Solution Compatibility Notes

OEM Replacement 564-9133 Caterpillar wiper relay from the same series; compatible with select models

Generic Replacement Industrial 24V 13-Pin Wiper Relay Must verify pin configuration, voltage, and interface dimensions to ensure compatibility with the control module

Repair Replacement Generic 24V Wiper Control Relay (with Intermittent Function) Temporary replacement requiring an external control circuit; priority should be given to OEM-spec parts whenever possible

IV. Installation and Maintenance Guidelines

Voltage Compatibility: Confirm that the equipment operates on a 24V system; strictly prohibit connection to a 12V power source

Pin Connection: Strictly adhere to the 13-pin wiring diagram to avoid misconnections that could burn out the relay

Environmental Protection: During installation, keep the unit away from high-temperature areas and oil/grease contamination; ensure proper waterproofing and secure mounting

Troubleshooting: If the wiper fails to operate or exhibits abnormal speeds, prioritize checking the relay and associated wiring before blindly replacing components
