I. Product Parameters

OE: 21N6-30120, DC24V, High-power starter magnetic relay, original factory starter motor auxiliary solenoid switch, high current 150A class

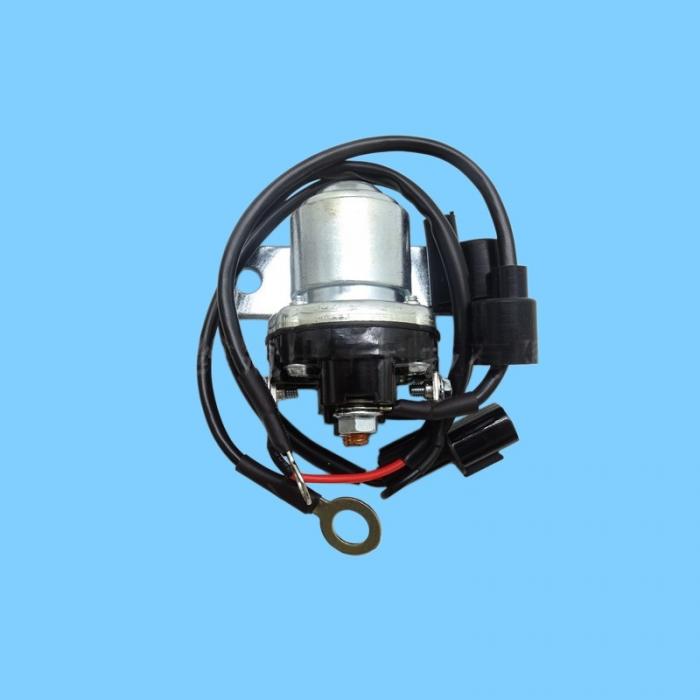

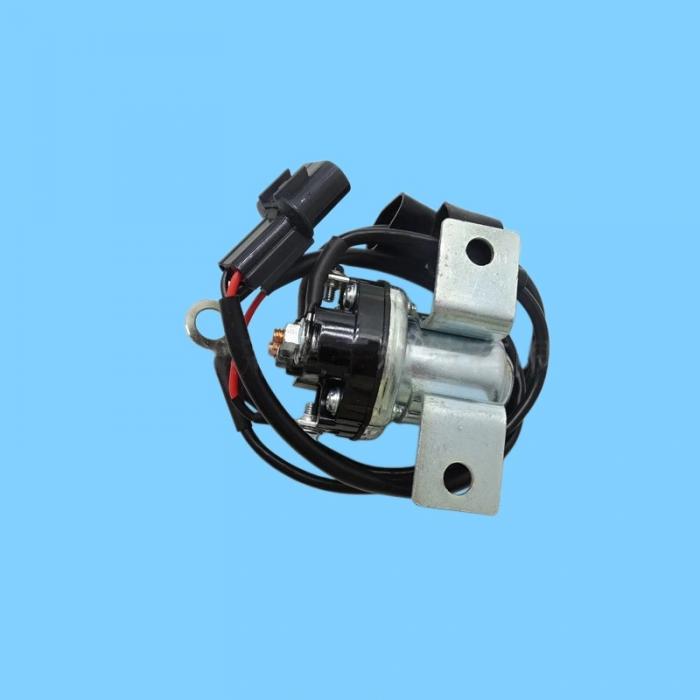

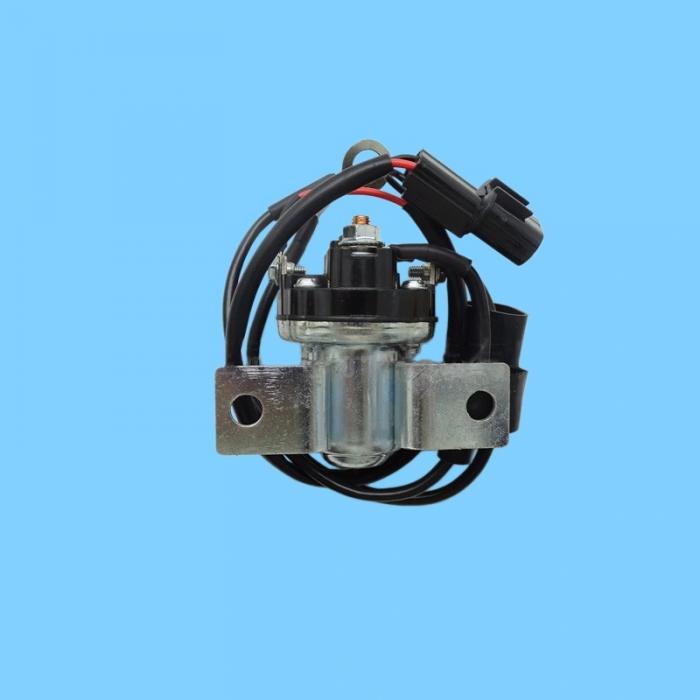

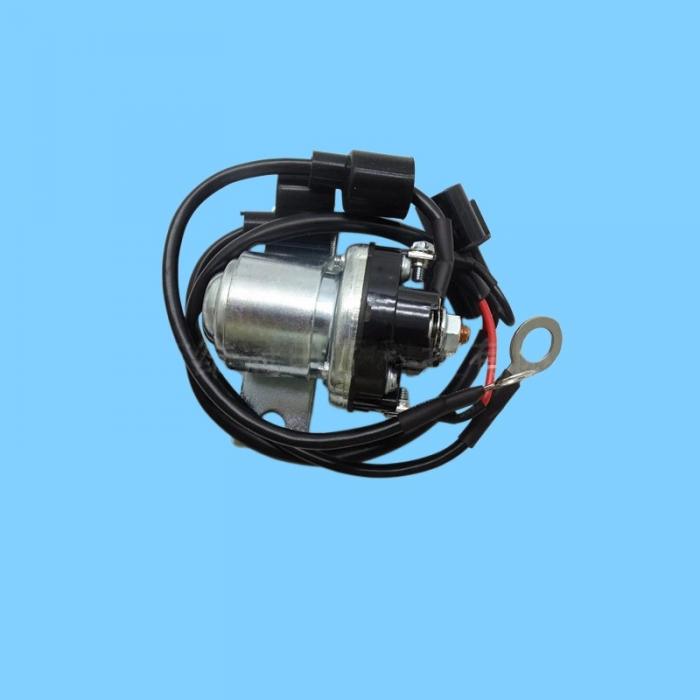

Structure: 2 thick copper terminals + 2 thin pins + mounting plate, cylindrical metal housing, original vehicle installation without wiring modification

Aliases: Starter Relay, starter magnetic relay, starter auxiliary relay, motor solenoid switch

No universal interchangeable parts, unique replacement for each part number

II. Compatible Models (Hyundai - 7/-9 series excavators + loaders)

Excavators: R60-7, R80-7, R140LC-7, R210LC-7, R215-7, R225LC-7, R290-7, R305-7, R215-9, R225-9, R330-9 All Cummins Engine Models

Wheel Loaders

HL730-7/7A/9, HL740-7/9, HL757-7, HL760-7

Hyundai Original Loaders

III. Wiring Instructions

Two thick terminals: One end connects to the 24V positive terminal of the battery, the other end connects to the starter motor suction pack.

Two thin wires: Key ignition switch control signal wires; small current engages internal contacts, large current conducts to the motor.

IV. Typical Faults

No motor response when turning the key, clicking sound but no start (coil open circuit / contact burnt-out)

Contact sticking: Motor keeps turning when turning the key, burnt-out motor / battery depletion

Occasionally starts when cold, fails to start when hot (overheated contacts, loose connection)
