I. Model and Specifications

Model: 254-3783 (2543783, CA2543783)

Voltage: DC 24V (Standard equipment on all 320D series models)

Current: 50A Continuous, 200A Momentary (Dual function: Starting / Pre-heating)

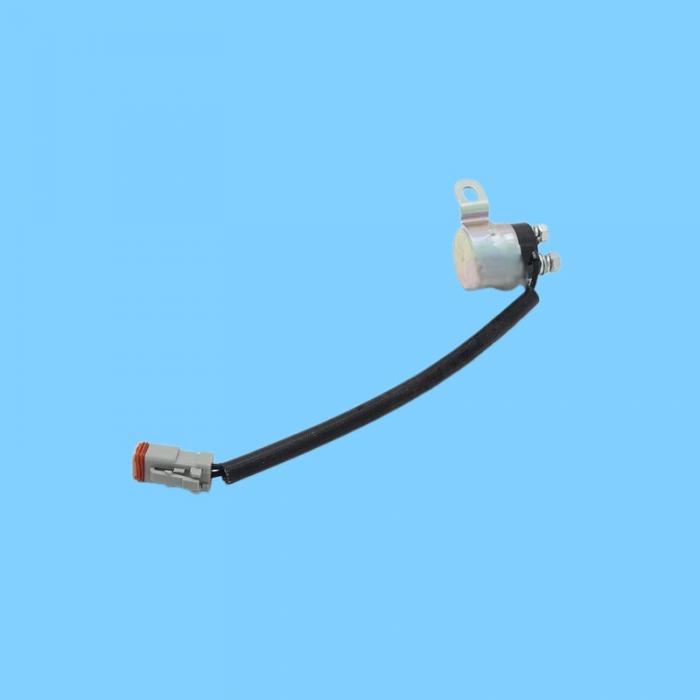

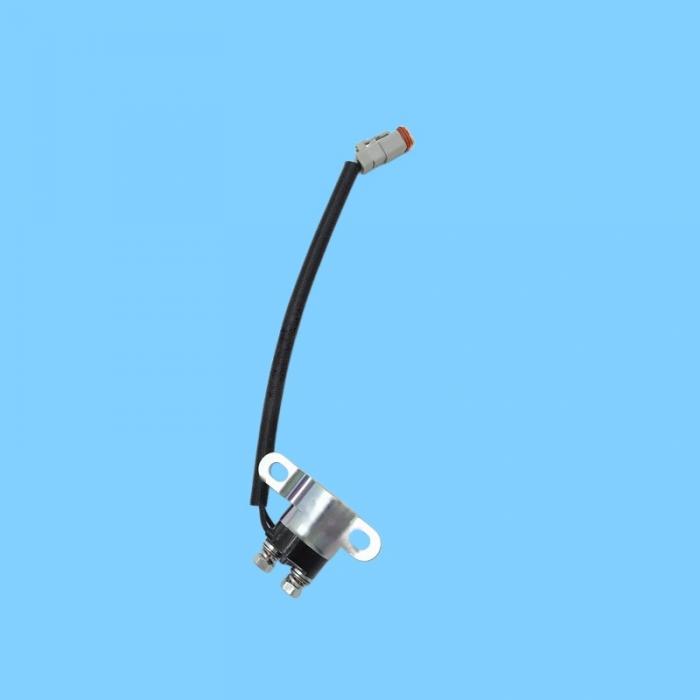

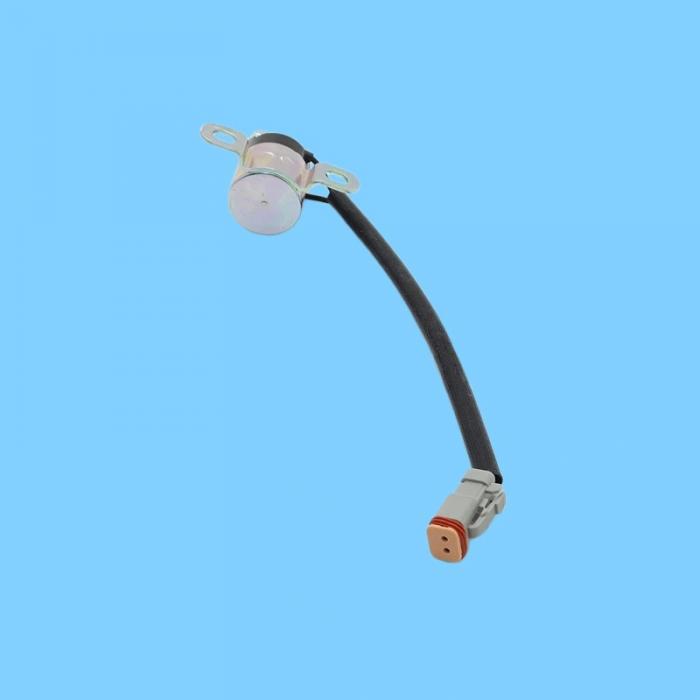

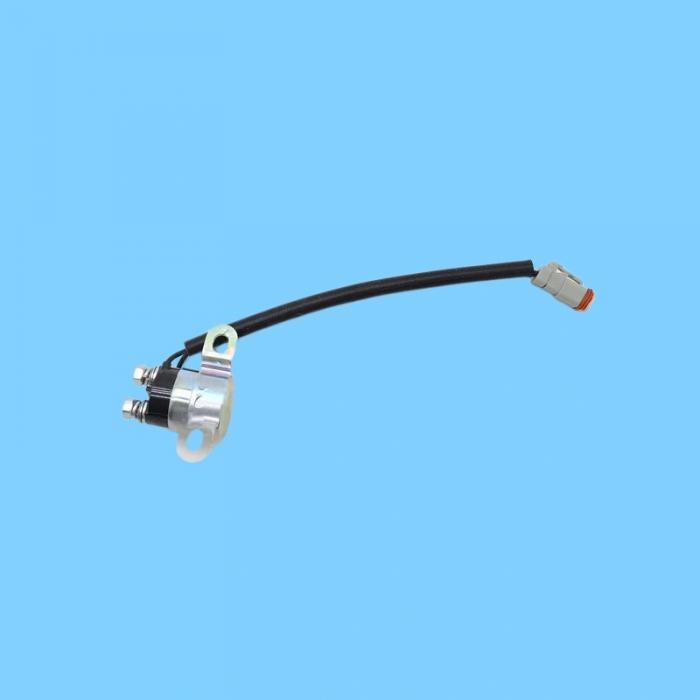

Terminals: 2 High-Current Bolt Posts (B+, S) + 1 Deutsch 2-Pin Control Plug

Housing: Metal casing with heat sink fins; vibration-resistant and waterproof

II. Core Functions (320D Circuitry)

Starting Control: Ignition key turned to START → Coil engages → Contacts close → Battery power flows to Starter Motor; controls the high-current circuit for the starter.

Pre-heating Assistance: When the engine is cold, works in conjunction with the ECU to energize the glow plugs, facilitating improved cold-weather starting.

Safety Isolation: Disconnects when the ignition key is turned OFF, preventing power leakage and accidental starting.

III. Applicable Models (Including 320D)

Excavators: 320D, 320DL, 323D, 325D, 329D, 336D, and other D-Series models

Loaders: 950G, 966G, 972G, etc.

Engines: C7, C9, C13, 3126, 3176, etc.

IV. Differences from Common Cat Relays

254-3783: 24V; Starting + Pre-heating; Metal housing with plug connector; Primary relay for 320D series

3E7279: 24V; Starting-only function; No plug connector; High-current transient capability

241-8368: 24V/100A; Main Power Relay; Designed for continuous operation; Features heat sink fins

228-9108: 24V; Engine Shut-off Delay Relay; Fixed 10-second delay
