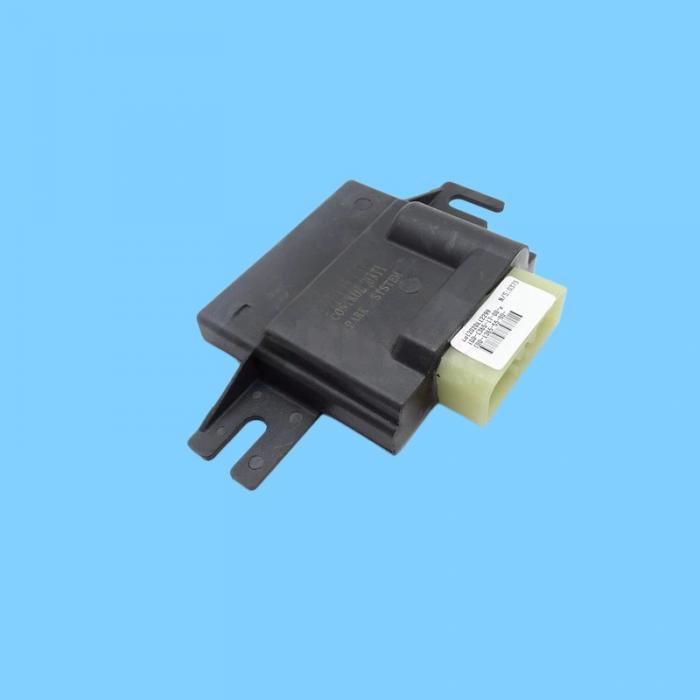

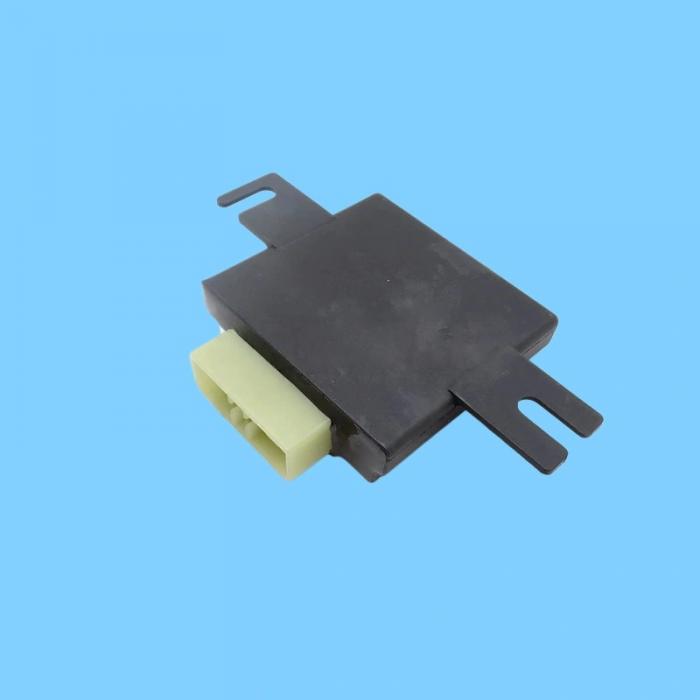

I. Model and Identification

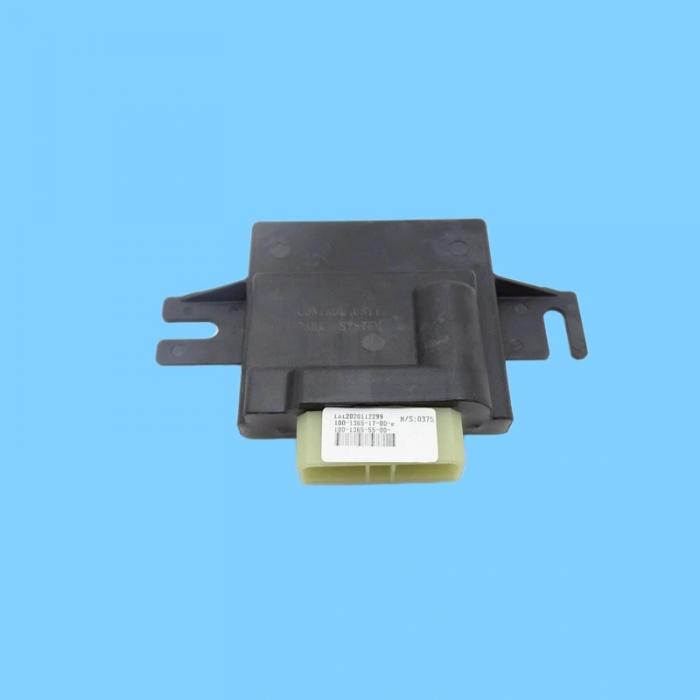

Model: 100-1365-55-00 (also written as 10013655500)

Common Names: Caterpillar excavator wiper control unit, wiper intermittent relay, wiper timer

Brand: Caterpillar component, commonly manufactured by DOGA (a professional wiper system manufacturer)

Voltage: DC 24V (excavator standard)

II. Core Functions (Not a regular relay)

Intermittent Delay Control: Controls wiper intermittent speed (adjustable approximately 3–10 seconds), low/high speed linkage, return to stop

Motor Drive: Directly drives the wiper motor, contact capacity approximately 5–8A

Integrated Module: Contains internal delay circuit + power relay + protection components; is an intelligent relay module, not a purely mechanical switch

III. Terminals/Connectors

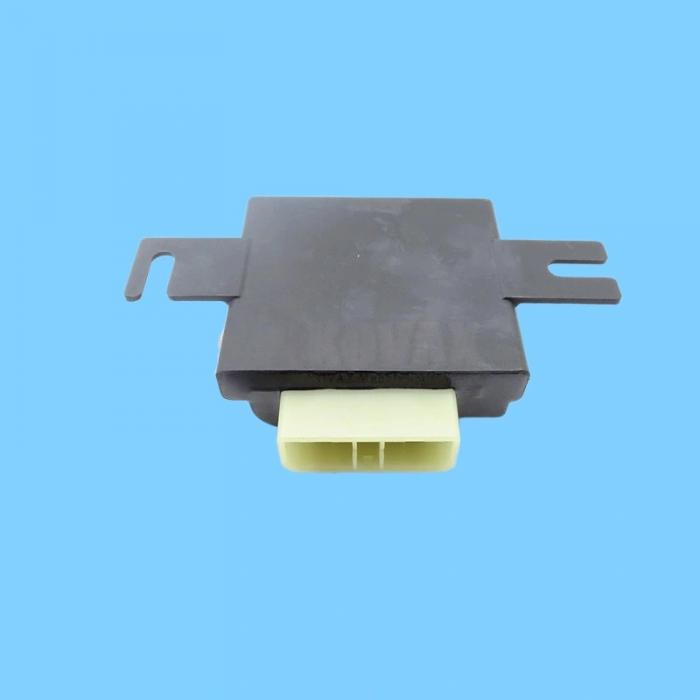

Connector: Green 6-pin plastic shell plug (commonly used in newer models such as Caterpillar 320GC)

Installation: Comes with metal bracket, inside the cab/ Side mounting

IV. Applicable Models

Mainly: CAT 320GC, 323GC, 330GC, 336GC, and other new generation GC series excavators

Replacement/Related Model: 100-1365-17-00 (Same function, older model number)
