I. Core Specifications

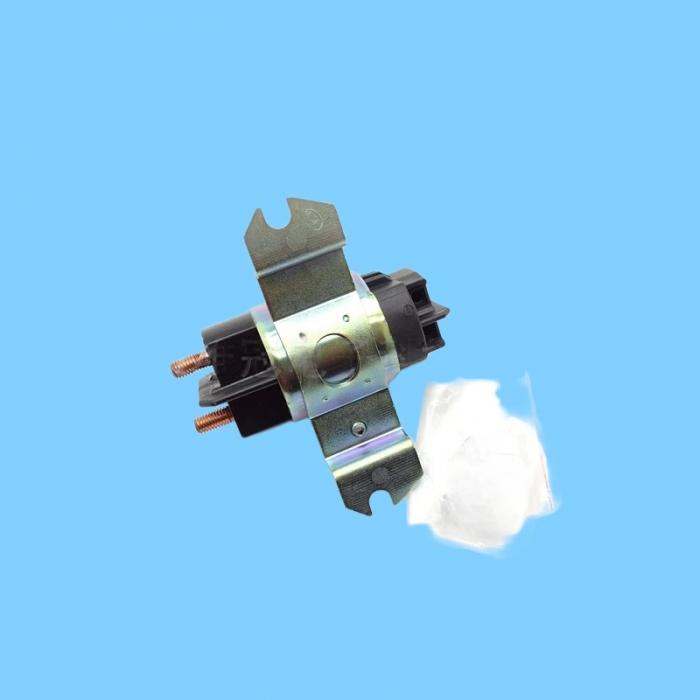

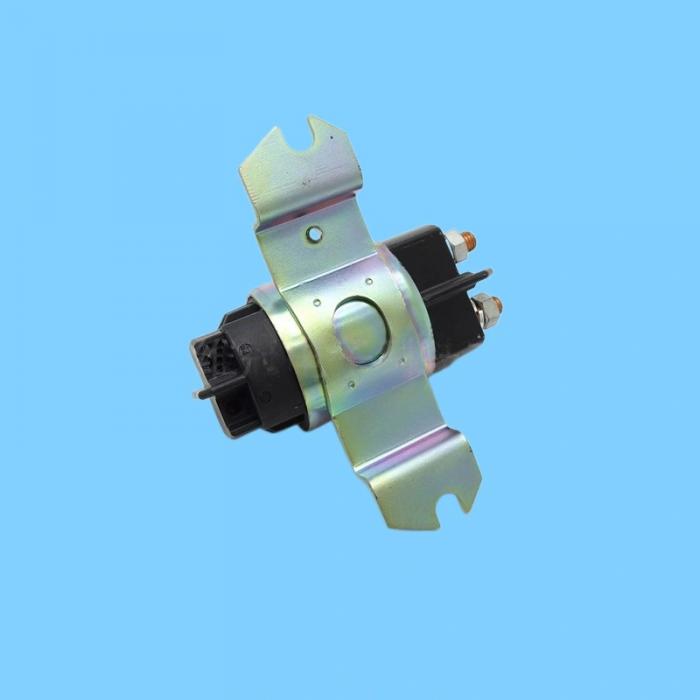

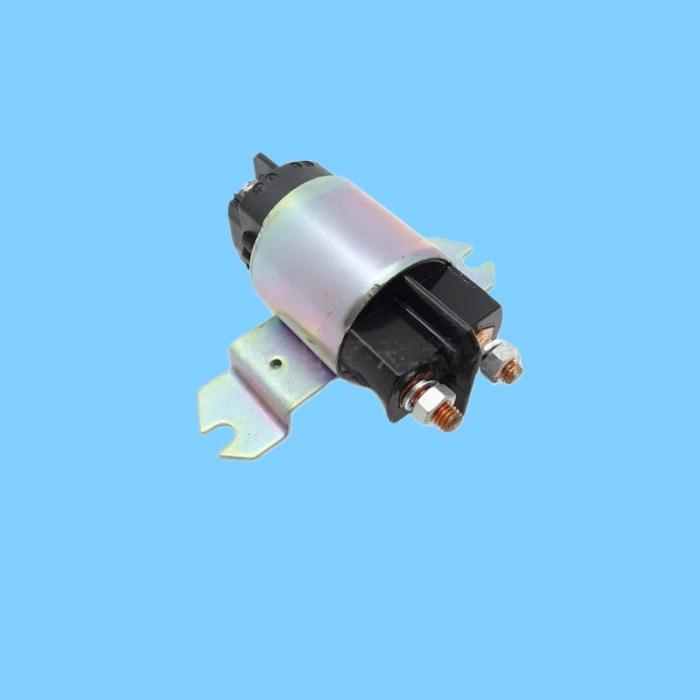

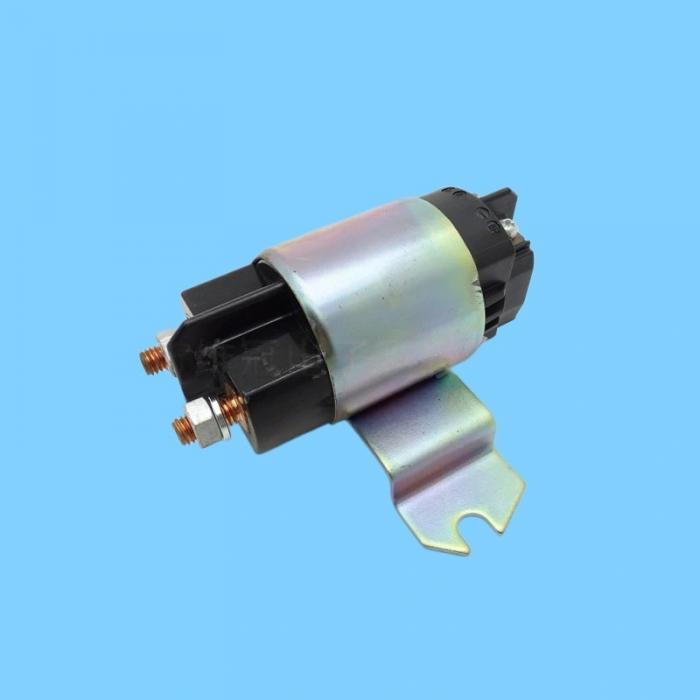

Model: 301202-00153 (30120200153)

Voltage: DC 24V

Contact Capacity: 150A/24VDC (Main Power / High-Current Starting)

Coil Power Consumption: Approx. 20W

Terminals: 2 x M10 Large Binding Posts (Main Circuit) + 1 x 2-Pin Small Connector (Coil Control)

Structure: Electromagnetic Normally Open, Metal Housing, Shock-Resistant & Dustproof, Base-Mounted

Functions: Master Power Control, High-Current Starter Motor Switching, Main Circuit Protection

Operating Temperature: -40°C to +85°C

II. Applicable Models (Doosan / Develon)

Wheel Loaders (Mainstream): DL200, DL250, DL300, DL350, DL420, DL450, DL500 Series (including -3/-5/A/TC sub-models)

Excavators: DX140, DX225, DX255, DX300, DX420, etc.

Replacement Part Numbers: 2544-9024, 7383031

III. Differences from 544-00007 (Starter Relay)

301202-00153: 150A, M10 Terminals, Metal Housing, Dual-Purpose (Master Power + Starting), Larger Size

544-00007: 80–100A, M8 Terminals, Metal Housing, Starting Function Only, Medium Size

300619-02309A: 10A, 3-Pin, Plastic Housing, Delay Control Only

IV. Symptoms of Failure

Complete loss of power to the vehicle; instrument panel does not light up; unable to start.

No response whatsoever when attempting to start (distinct from the "clicking" sound associated with 544-series failures).

Main binding posts show signs of ablation (burning), overheating, or arcing. Key switch prone to burning out (no protection in the main circuit).
