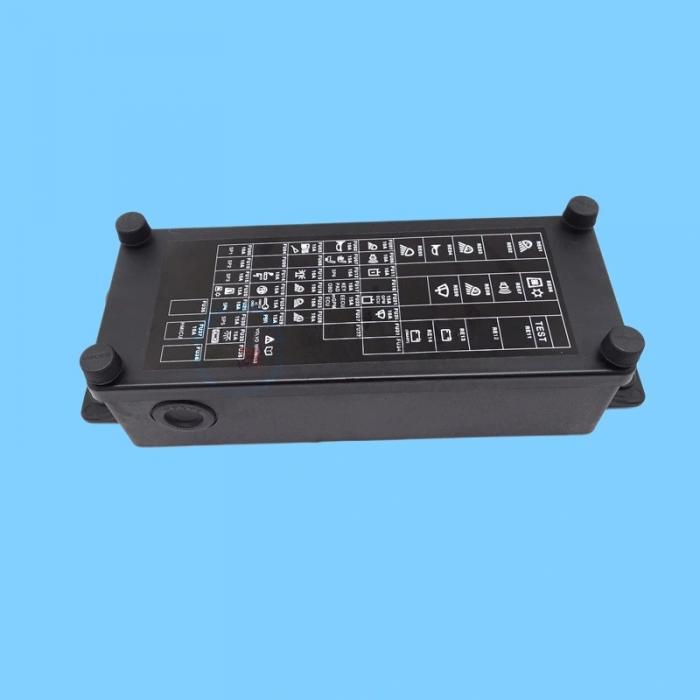

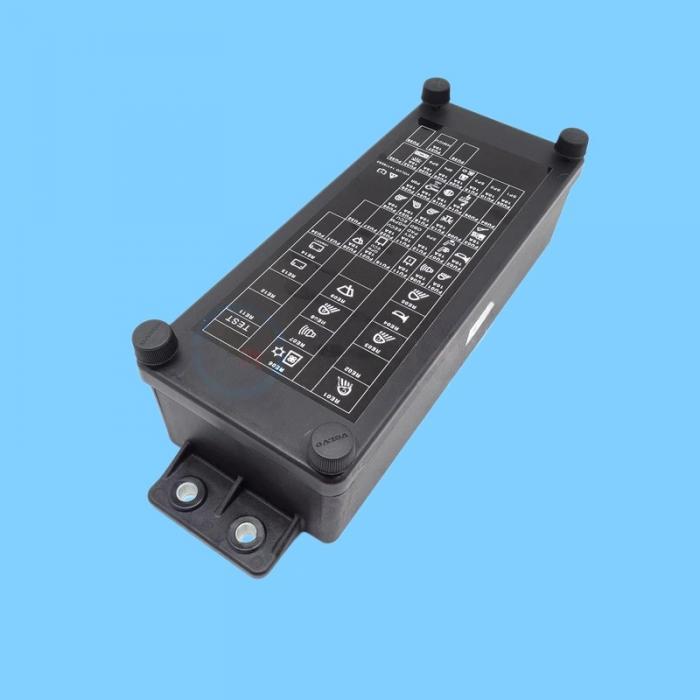

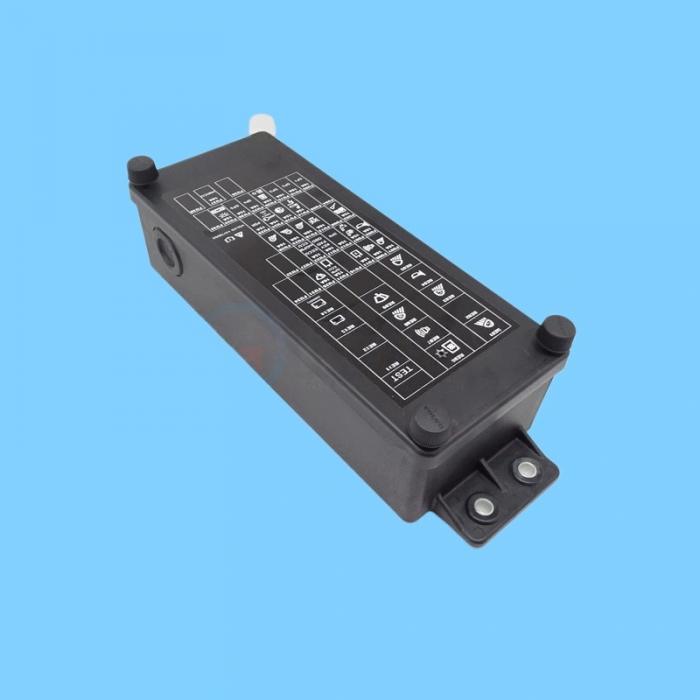

I. Core Specifications

Model: 14778053 (VOE14778053, Volvo Genuine Part Number)

Voltage: 24VDC (Coil)

Contact Capacity: 40A Continuous / 100A Surge (Starter / Pre-heating Circuits)

Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)

Terminals: 5-Pin Waterproof Connector (2 Control Pins + 3 Power/Signal Pins)

Functions: Starter Safety Lockout, Pre-heating Delay, Over-voltage / Under-voltage Protection, Engine Shut-off Control

Power Consumption: Approx. 3W

Operating Temperature: -40°C to +85°C; Vibration-resistant and Dustproof

Replacement Part Numbers: 14623863, 14525233 (Volvo 24V relays with identical functionality)

II. Applicable Engines

Volvo: D4D, D6D, D7D, D12D (Key engine models for the EC series excavators)

SDLG (Subsidiary of Volvo): SDLG 6135, 6140, 6150 (Models built on the same platform)

III. Applicable Equipment Models (Specific)

Volvo Excavators: EC210B, EC240B, EC290B, EC360B, EC460B, EC480D

SDLG Excavators: LG6210, LG6240, LG6290, LG6360 (Volvo technology platform)

Others: Volvo Trucks, Generator Sets, Construction Machinery Chassis

IV. Functional Description (Dual-Action: Safety + Starting)

Starter Safety Lockout: Disconnects the starter circuit when the transmission is not in neutral or the safety lock is not engaged, preventing accidental engine starts.

Pre-heating Delay Control: Activates the glow plugs for 3–8 seconds during cold starts to improve engine starting performance in low-temperature conditions.

Overload / Over-voltage Protection: Automatically cuts off power in the event of excessive starting current or abnormal voltage, thereby protecting the starter motor and alternator. Shutdown Assist: Cuts off the fuel solenoid valve upon shutdown to ensure rapid engine stoppage.
