I. Core Specifications

Model: ME067625 (Aftermarket Interchange Nos.: UIT06672, ME037485)

Voltage: 24VDC

Contact Capacity: 100A Continuous / 300A Inrush (Starting)

Structure: Normally Open (NO), Electromagnetic Type, Copper Contacts, with Heat Sink

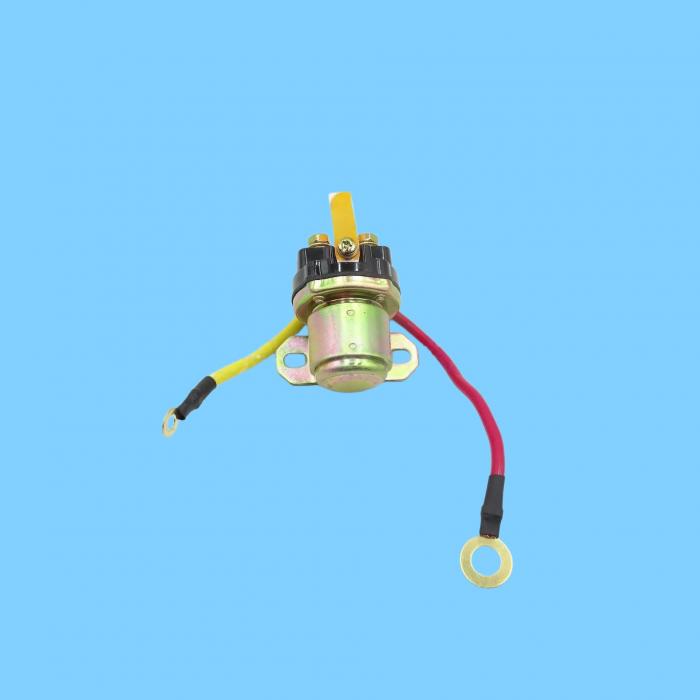

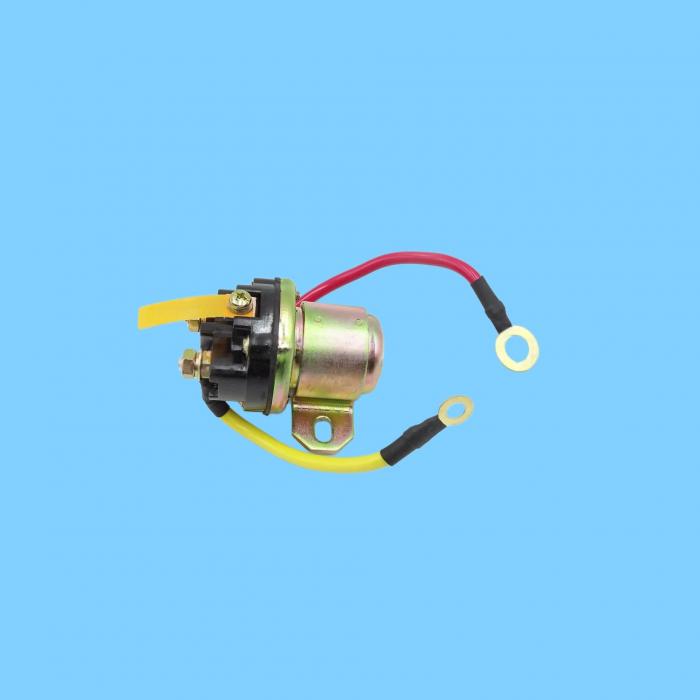

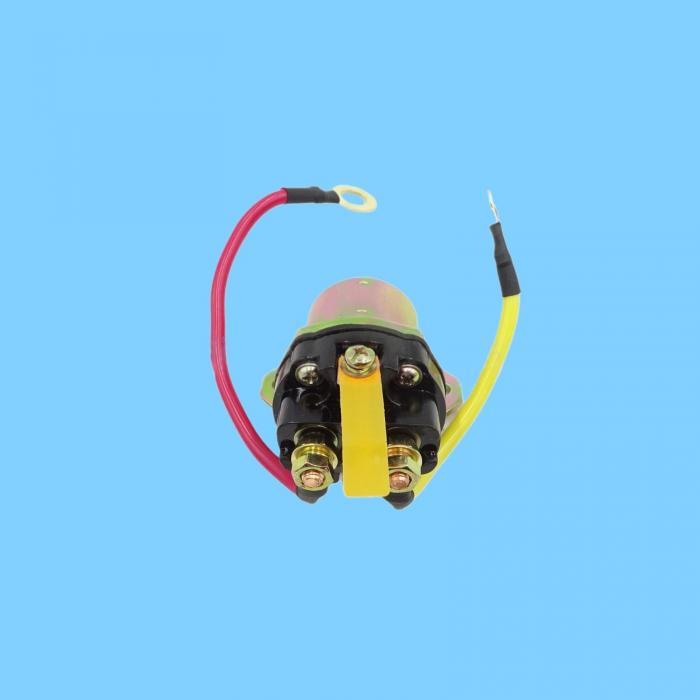

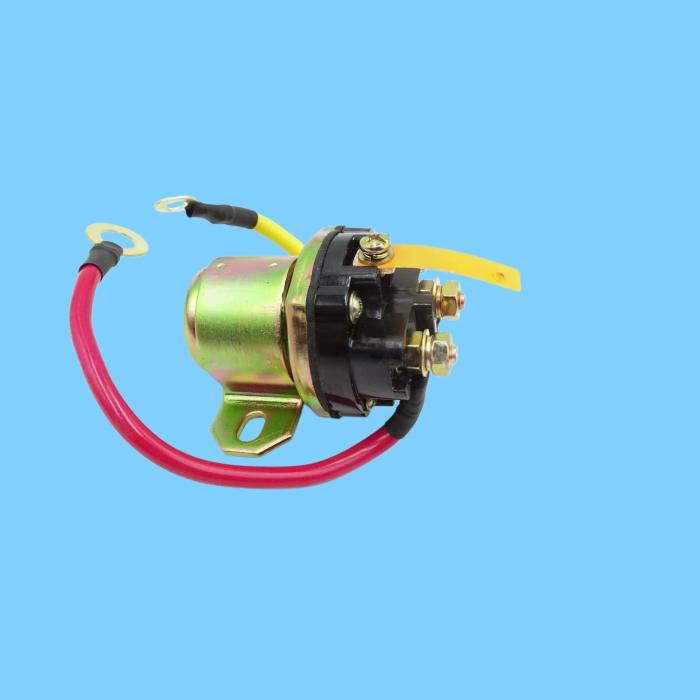

Terminals: 2 x M8 Power Bolts + 2 x Control Posts (with Red & Yellow Wires)

Protection: IP54, Vibration-Resistant, Dustproof & Waterproof

Coil Power Consumption: Approx. 12W

II. Applicable Engines (Mitsubishi)

4D31, 6D14, 6D15, 6D16, 6D22, 6D31, S6KT, JD231

III. Applicable Equipment Models (Precise)

Komatsu Excavators: PC200, PC220, PC300 (S6K/6D102)

Hitachi Excavators: E200B, E320, E320B (S6K)

Kobelco Excavators: SK200, SK220 (6D16)

Kato Excavators: HD700, HD820 (6D22)

Others: Mitsubishi Engine Forklifts, Loaders

IV. Replacements / Interchanges

Direct Replacements: UIT06672, ME037485, R8T30172

Non-Replacements (Incompatible):

ME049233: Safety Relay (with Pre-heating Control, 4-Pin Module)

JQX200‑24AC: Liugong 200A Main Power Contactor (Bolts + 2 Pins)

DCNPT200‑01: XCMG 200A Main Power Contactor
