I. Core Parameters (Original Manufacturer Specifications)

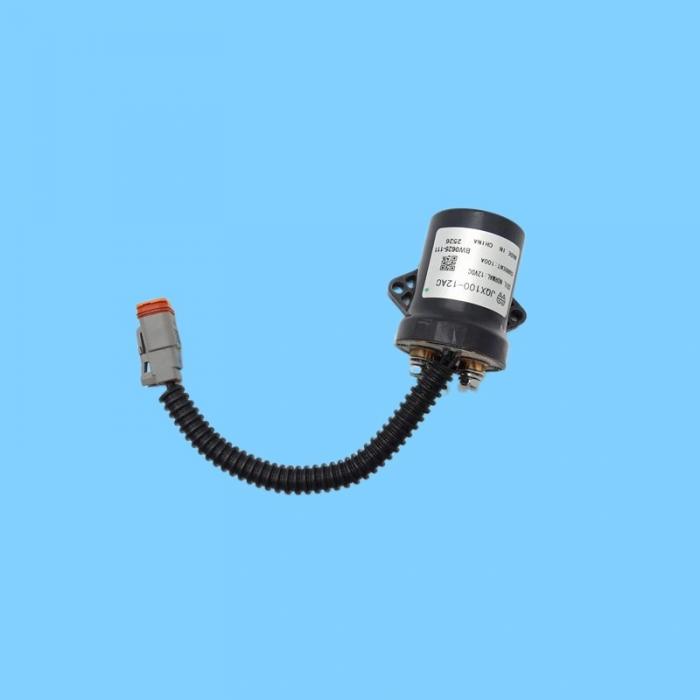

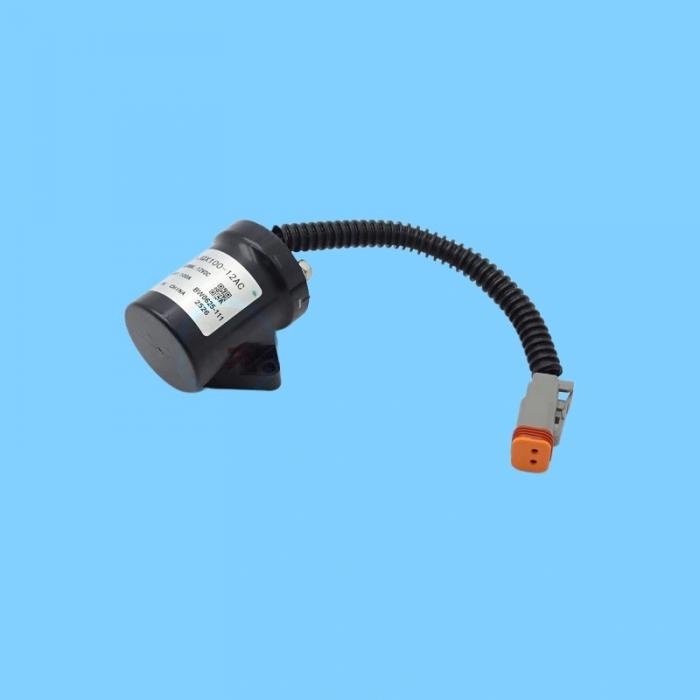

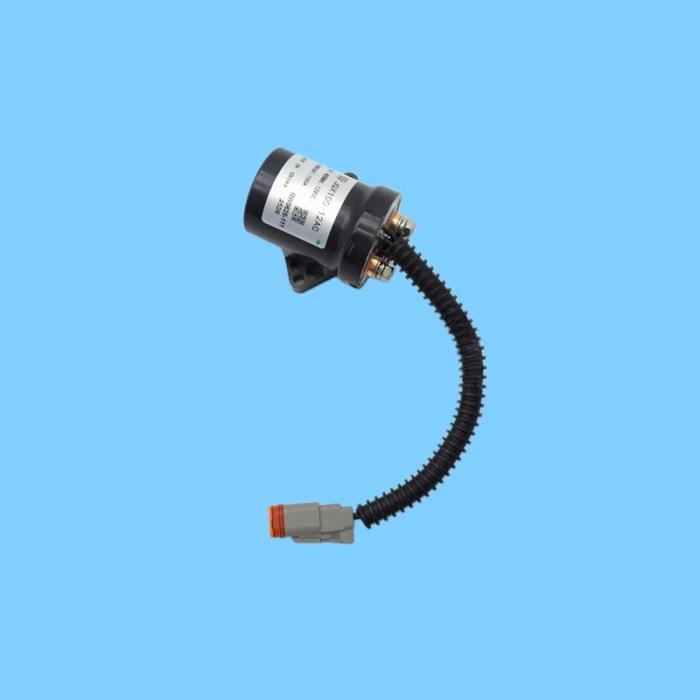

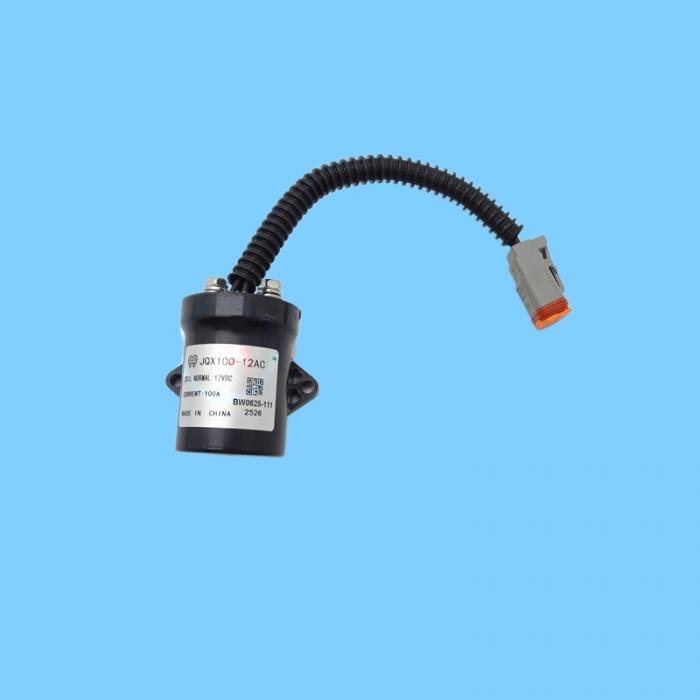

Model: JQX100‑12AC (Also designated as JQX100‑12VDC)

Material Code: 46C8754 (LiuGong System No.)

Brand / Application: LiuGong

Coil Voltage: 12VDC

Contact Capacity: 100A Continuous / 200A Short-term (Starting Surge)

Contact Form: Normally Open (NO), Single-Pole Single-Throw (SPST)

Main Circuit Terminals: M8 Copper Bolts ×2 (Battery + → Vehicle System / Starter)

Control Terminals: 2-Pin Waterproof Connector (12V Control Signal)

Protection Rating: IP54; Dustproof, Waterproof, Vibration-resistant

Material: Flame-retardant Housing, Large Red Copper Contacts

Operating Temperature: ‑30℃ ~ +70℃

II. Applicable Models (Precise)

Excavators: CLG906D, CLG908D, CLG915D (12V Systems)

Wheel Loaders / Road Rollers: LiuGong E/F/FG4 Series 12V Models

Aliases: Power Relay, Starter Relay, Master Switch Relay

III. Related Series & Alternatives

Related Series:

JQX100‑24AC: 24V/100A (Material Code: 31B0238)

JQX200‑24AC: 24V/200A (Higher Current Capacity)

Non-Interchangeable Parts:

DCNPT200‑01 (XCMG 24V/200A)

704‑21600 (JCB 12V Steering Module)

10123861 (SANY 24V Fuse Box)
