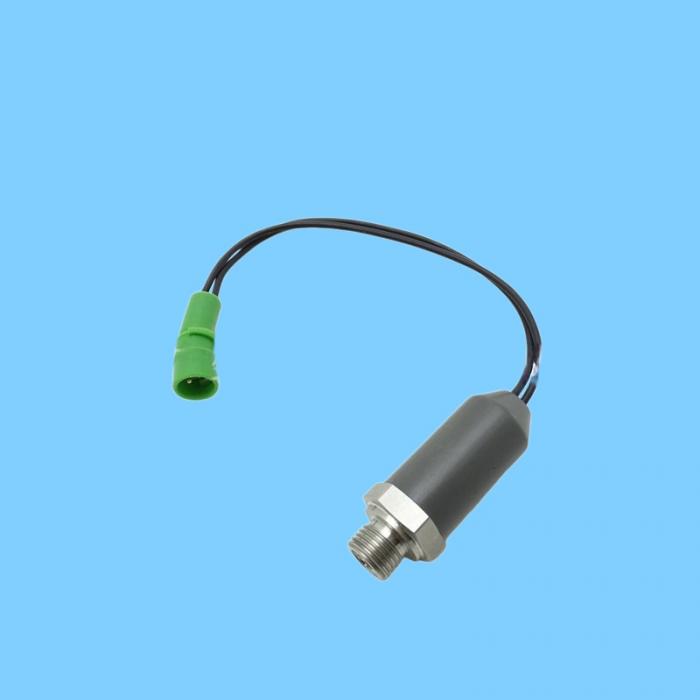

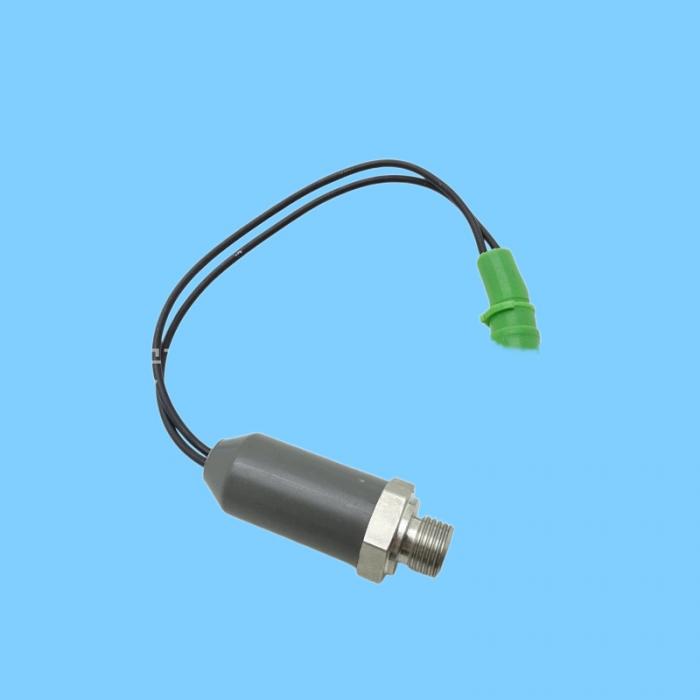

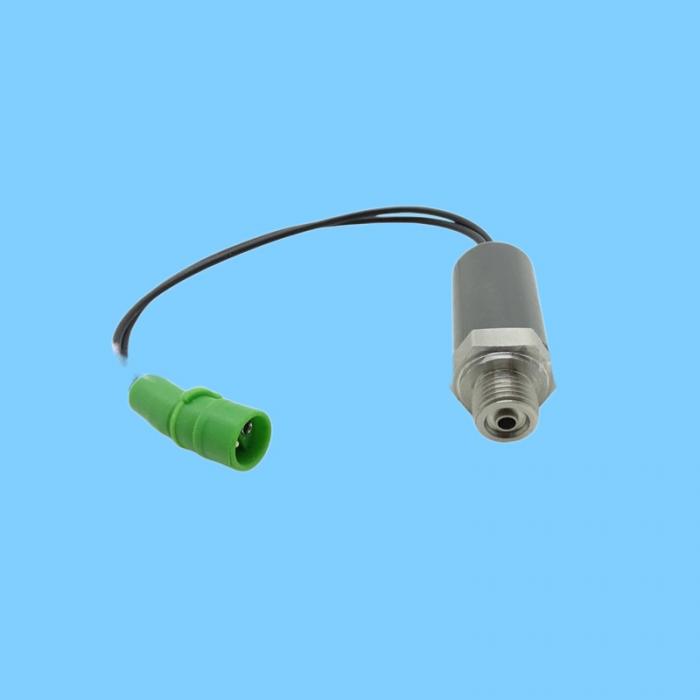

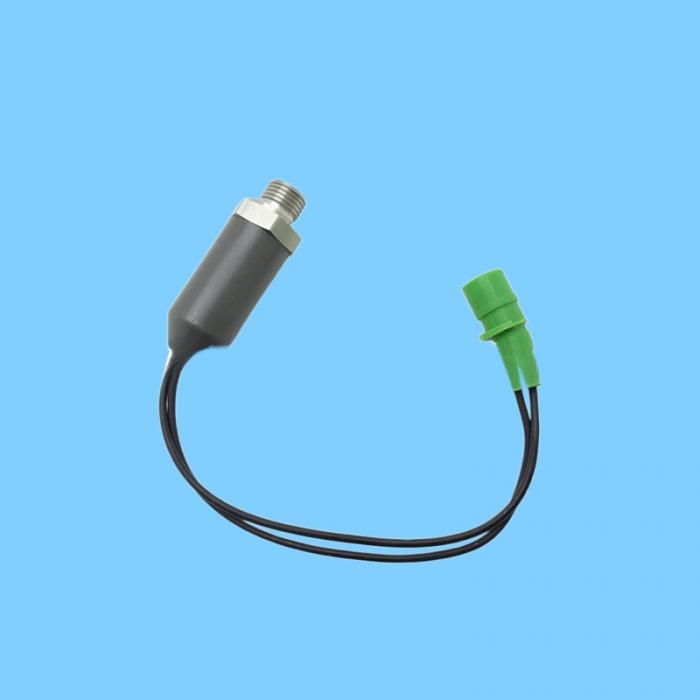

9X-0378 Caterpillar Oil Pressure Switch/Sensor: Primarily used in large Caterpillar engines and construction machinery to monitor oil pressure and trigger protective alarms. I. Core Parameters and Specifications

OE Model: 9X-0378 (Caterpillar Original Equipment; also written as 9X0378)

Type: Oil Pressure Switch (with signal output)

Function: Monitors oil pressure; triggers an alarm light / ECU protection when pressure drops below a specified threshold.

Electrical Interface: 1-Pin / Single Spade Connector (Single-wire signal)

Thread Specification: 1/8 NPT (American National Pipe Thread)

Compatible System: Caterpillar large diesel engine oil lubrication systems

II. Compatible Engines and Equipment Models (High-Frequency Applications)

Engine Series:

Industrial / Power Generation: 3406E, 3408E, 3412E, 3508B, 3512, 3512C, 3516B, C10, C12, C15, C16, C18, C27, C32

Marine: 3126B, 3412E, 3508, 3512, 3516, C7, C18, C32

Construction Machinery: Caterpillar large excavators, wheel loaders, dozers, motor graders, and mining equipment (e.g., 988H, D9T, 16M, etc.)

III. Alternative Models and Suppliers

Table

Type Alternative Model Description

OEM Alternative 9X-4276, 161-1705 Same Caterpillar series; directly interchangeable

V. Fault Symptoms and Troubleshooting

Common Faults:

Oil pressure alarm light remains constantly on / fails to light up

Engine ECU reports a "Low Oil Pressure" fault code

Abnormal pressure reading (too high / too low / no display)

Troubleshooting Steps:

Check the sensor connector for looseness, corrosion/oxidation, or water ingress

Measure the sensor resistance: Approximately 200–500Ω at room temperature; resistance decreases as pressure increases

Resistance is abnormal → Replace the sensor; Resistance is normal → Check the wiring or the oil pump/filter element
