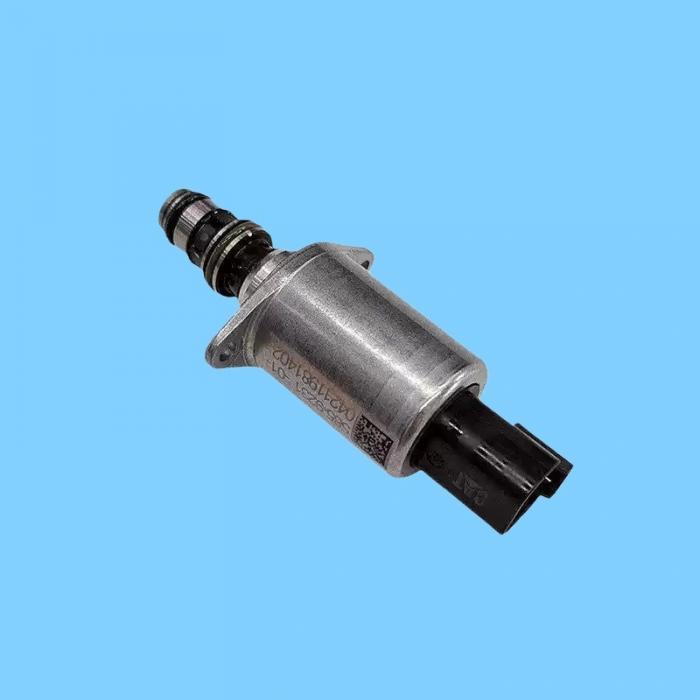

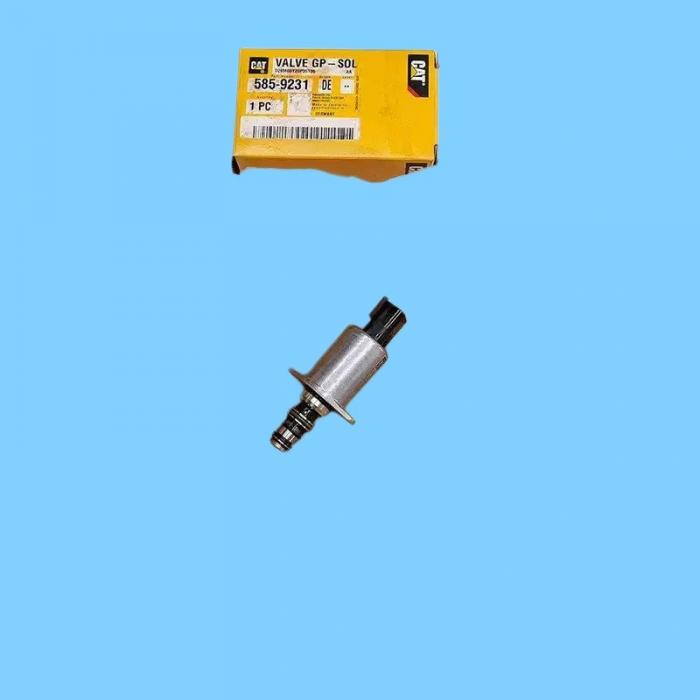

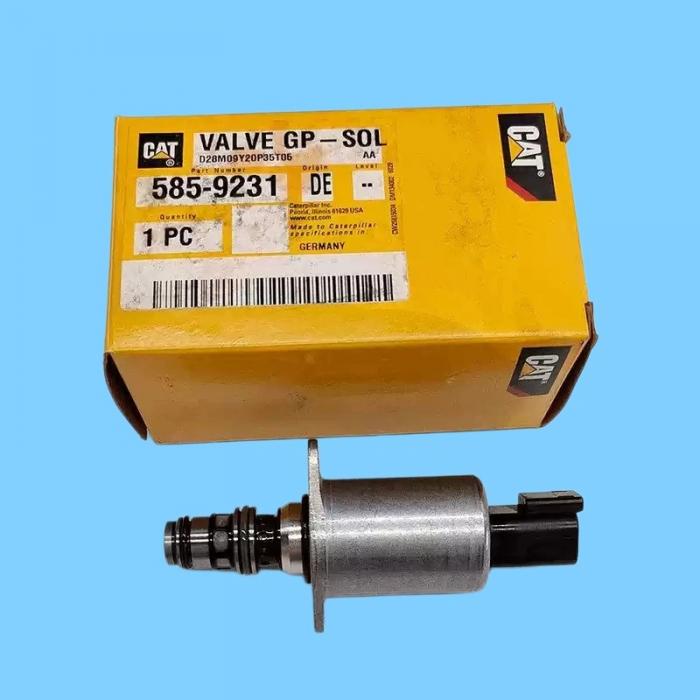

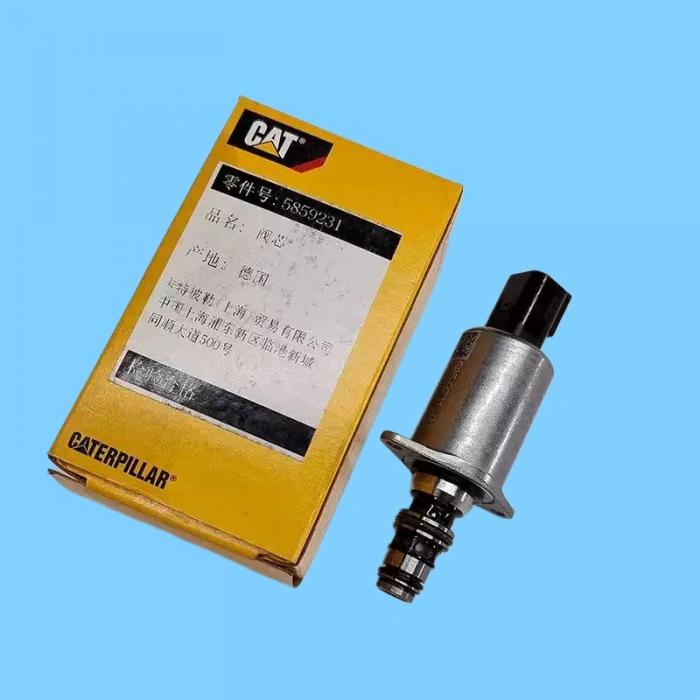

585-9231 Caterpillar Main Control Valve Proportional Solenoid — Primarily used in the main control valves of the new generation GC/GX series excavators; responsible for precisely controlling the flow and pressure of boom, stick, and bucket movements.

I. Core Specifications

Model: 585-9231 (5859231)

Brand: Caterpillar

Type: Main Control Valve Proportional Solenoid / Hydraulic Pilot Solenoid

Voltage: 24VDC

Function: Receives signals from the ECM to control the main valve spool, enabling precise flow and pressure regulation for movements such as the boom, stick, bucket, and swing.

Installation Location: On the body of the Main Hydraulic Control Valve (Main Control Valve).

II. Compatible Models (Mainstream)

New Generation GC/GX Series Excavators: 312GC/GX, 313, 313GC/GX, 315GC, 316GC/GX, 317/317GC, 320/320GC/GX, 323/323GC/GX, 325, 326GC, 330/330GC, 335, 336/336GC, 340, 345GC, 349, 352, etc.

Wheeled Excavators: MH3040, MH3050, etc.

Engines: C4.4, C6.6, C7.1, and other electronically controlled injection models.

IV. Common Faults and Diagnostics

Fault Symptoms: Jerky movements, weakness on one side (unilateral weakness), uncoordinated compound movements, boom drift (dropping), abnormal noise from the main control valve.

Diagnostic Methods:

Measure coil resistance (normally approx. 10–25Ω).

Check the connector pins for oxidation and the wiring harness for damage.

Use a diagnostic tool to read data from the main valve pressure sensors and compare the pressure differential between left and right-side movements.
