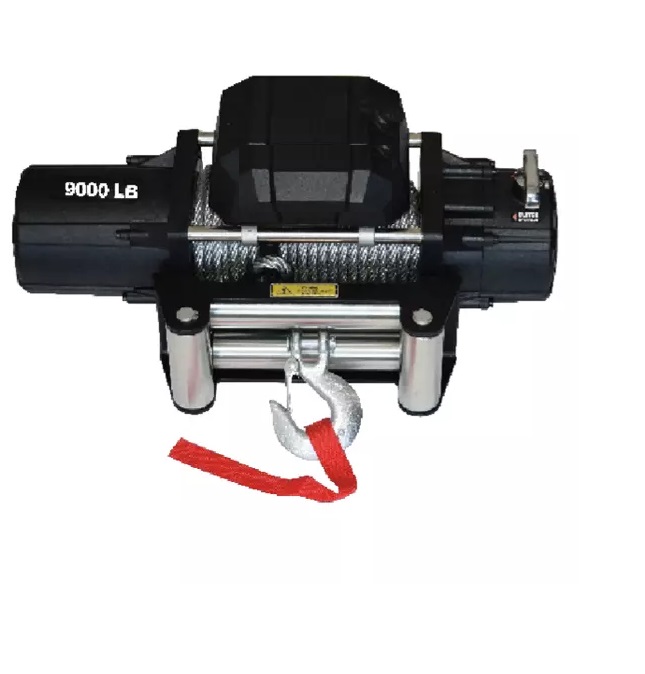

Name: | 9000 lbs Winch with Wire Rope |
---|---|
Product Description
9000 lbs Winch with Wire Rope
• Rated line Pull: 9000lbs(4090kgs)
• Motor: 4 2kw. 5.5hp,12V DC Series Wound
• Control: Remote switch 11.5ft(3 5m)lead
• Meas: 600×340×250mm(1 pc)
• Gear train: 3 Stage planetary
• Gear reduction ratio: 236:1
• Braking Action: Automatic in-The Drum
• Drum size: Diameter 2.5"(63.5mm)Length 8.8"(224mm)
• Cable; 85ft of 21/64"diameter (8.3mm*26m)
• Fairlead: 4-Way Roller Fairlead
• Remote Control: Include
• Battery: Recommended:650 CCA minimum for winching
• Battery Leads: 2 gauge,72"(1.83m)
• Finish: Matt Black
• Weight: N.W.84lbs(38kgs)G.W.94lbs(42 kgs)
• Overall dimensions: (L×W×H)21.5" x6. 3" x8. 35" (547x160x212mm)
• Mounting Bolt Pattern: 10 00±0.015"×4.50±0.010"(254× 114.3mm)
