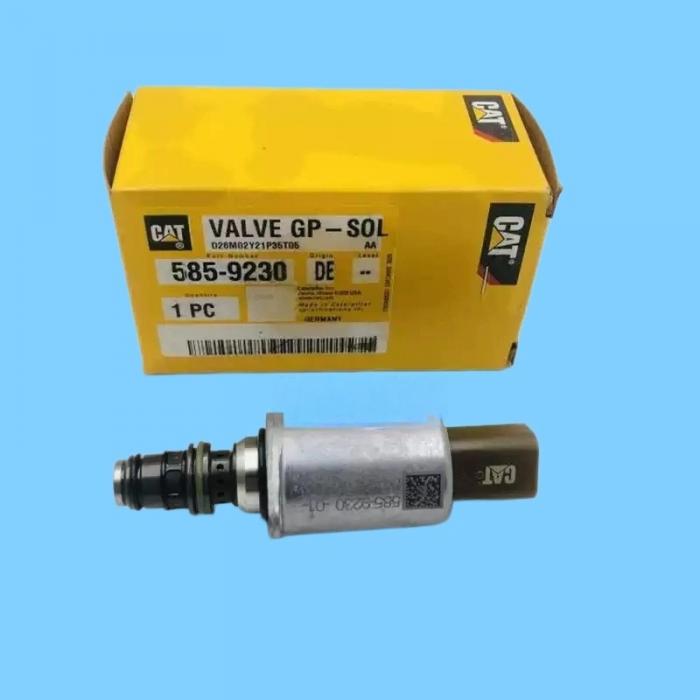

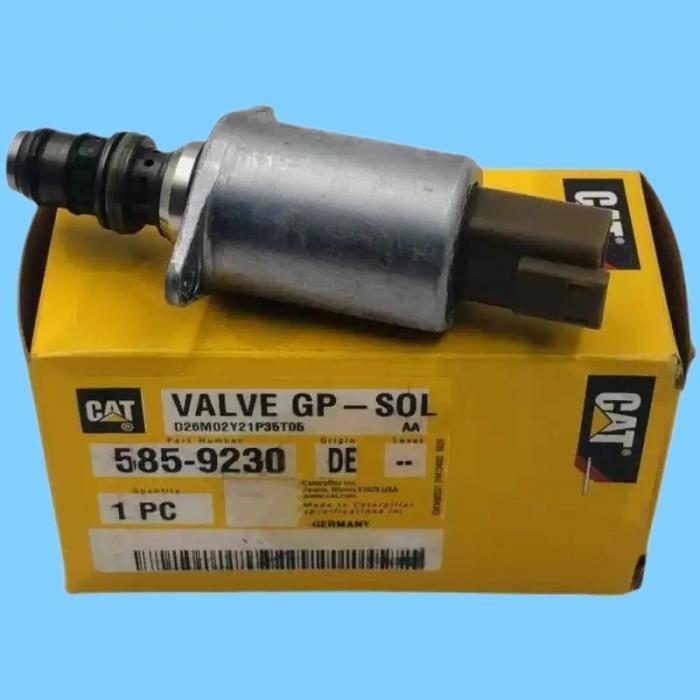

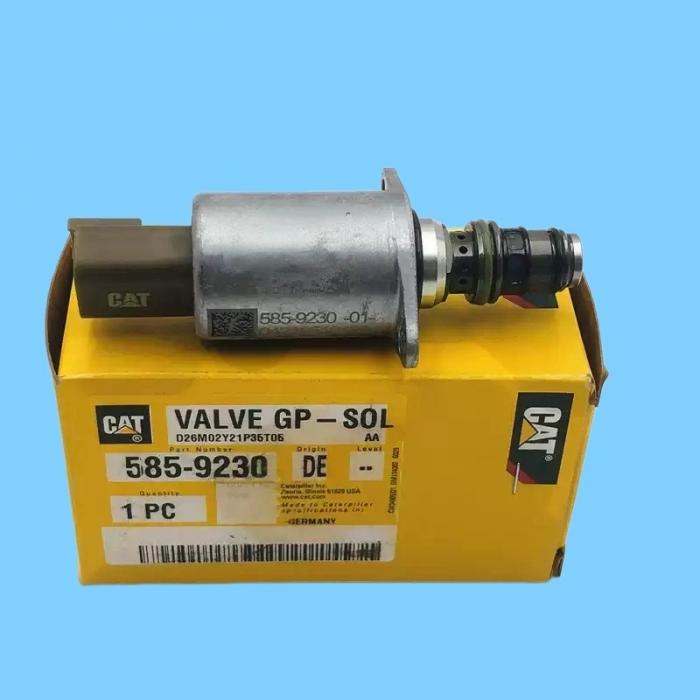

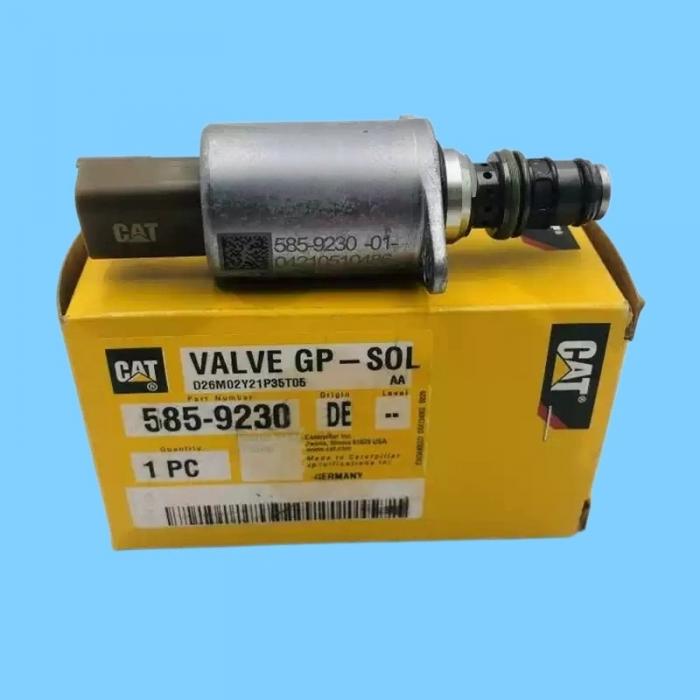

585-9230 Caterpillar Main Control Valve Proportional Solenoid — Used for hydraulic main valve control in the new generation GC/GX series excavators, serving as a core actuating component within the hydraulic system.

I. Core Parameters

Model: 585-9230 (5859230)

Brand: Caterpillar

Type: Main Control Valve Proportional Solenoid / Hydraulic Pilot Solenoid

Voltage: 24VDC

Function: Receives signals from the ECM to control the movement of the main valve spool, enabling precise flow and pressure regulation for operations such as boom, stick, bucket, and swing movements.

Installation Location: On the body of the main hydraulic control valve (Main Control Valve).

II. Compatible Models (Mainstream)

New Generation GC/GX Series Excavators: 312GC/GX, 313GC/GX, 315GC, 320GC, 323GC, 326GC, 330GC, 336GC, 340, etc.

Wheeled Excavators: M313, M314, M315, M318, M320, M322, etc.

Material Handlers: MH3022, MH3024, MH3032, MH3040, MH3050, etc.

Engines: C4.4, C6.6, C7.1, and other electronically controlled engine models.

IV. Common Faults and Diagnostics

Fault Symptoms: Jerky movements, weakness on one side (unilateral weakness), uncoordinated compound movements, boom drift (dropping), abnormal noises from the main control valve.

Diagnostic Methods:

Measure coil resistance (normally approx. 10–25Ω).

Check connector pins for oxidation and the wiring harness for damage.

Use a diagnostic tool to read data from the main valve pressure sensors and compare the pressure differential between left and right-side operations.
