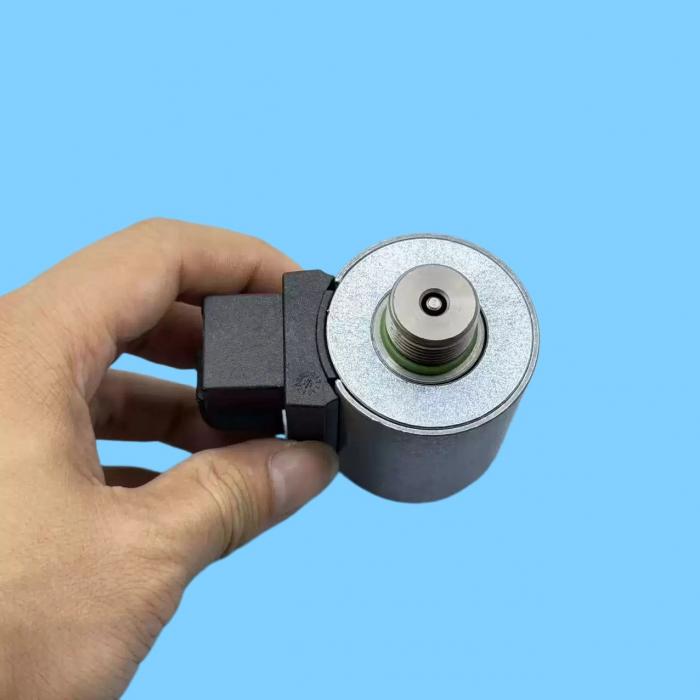

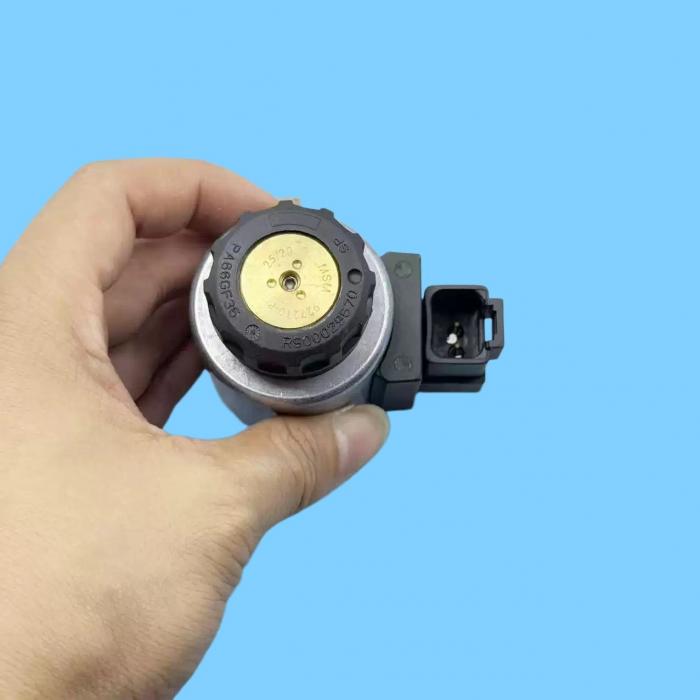

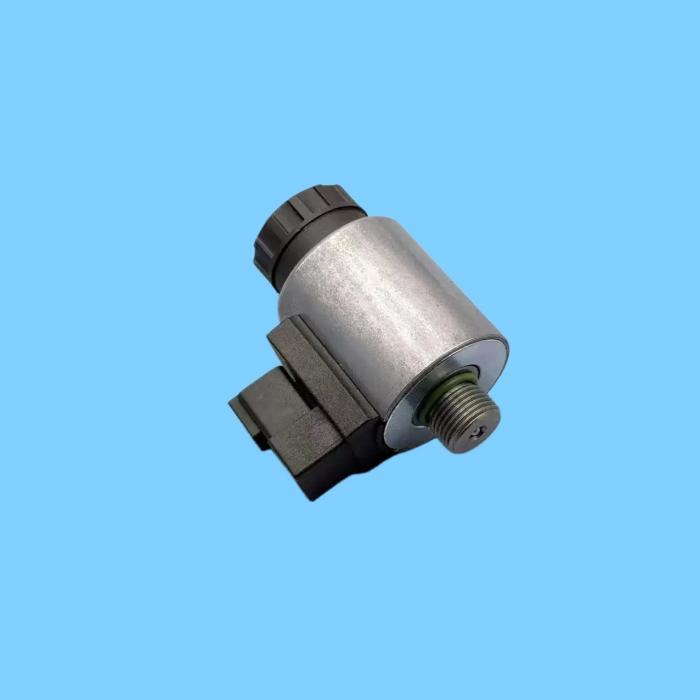

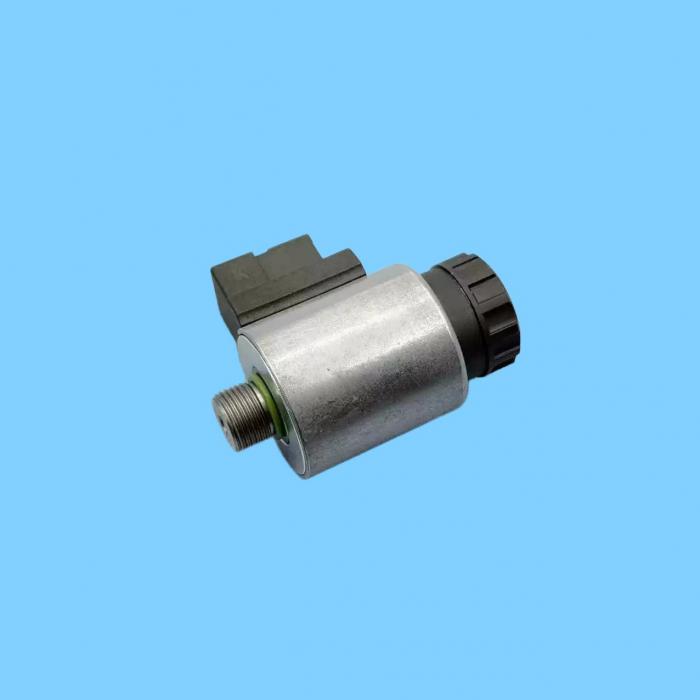

543-3739 Caterpillar Main Pump Proportional Solenoid Valve / Hydraulic Pump Solenoid Assembly — Used for hydraulic system flow and pressure control in the Next Generation Cat 320 Series excavators.

I. Core Parameters and Positioning

Model: 543-3739 (5433739)

Brand: Caterpillar

Type: Main Pump Proportional Solenoid Valve / Hydraulic Pump Solenoid Assembly

Voltage: 24VDC

Function: Receives signals from the ECM to regulate the displacement of the main hydraulic pump, thereby controlling machine operating speed and power matching.

Installation Location: Mounted directly on the main hydraulic pump (piston pump) body.

II. Compatible Models (Mainstream)

Cat Next Generation GC/GX Series: 320GC, 320GX, 323, 325, 326, 330GC, etc.

Engines: C7.1, C6.6, and other electronically controlled engines.

Replacement Status: Partially replaces the main pump solenoids found in older 320D/323D series models (e.g., 310-9537, etc.).

IV. Common Faults and Diagnostics

Fault Symptoms: Slow operation, engine stalling/bogging down, weak performance on one side, boom drift (dropping), abnormal noise from the hydraulic pump.

Diagnostic Methods:

Measure the coil resistance (normal range: approx. 10–20Ω).

Inspect the connector plug and wiring harness for damage or short circuits.

Use a diagnostic tool to read data from the main pump pressure/flow sensors.
