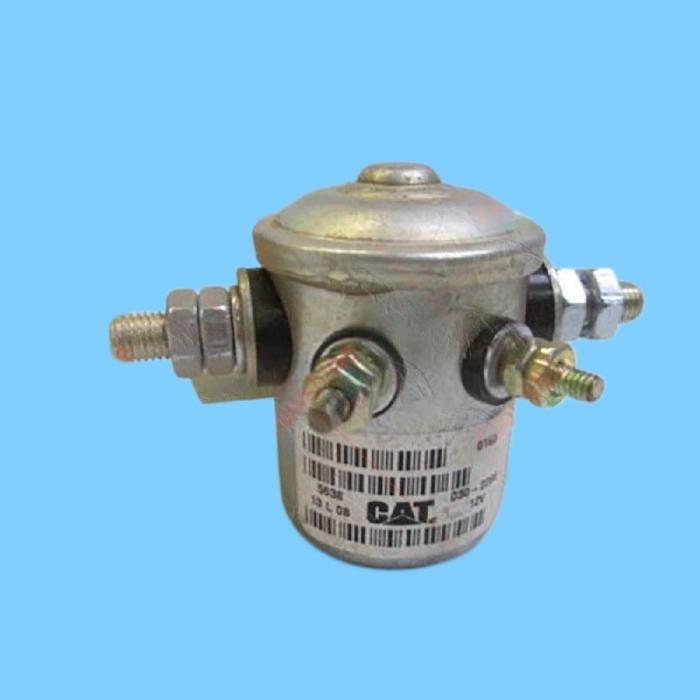

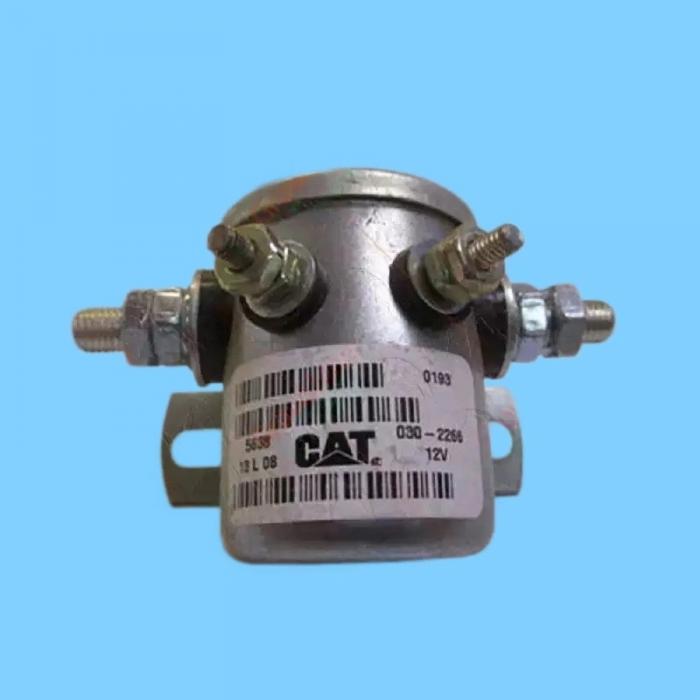

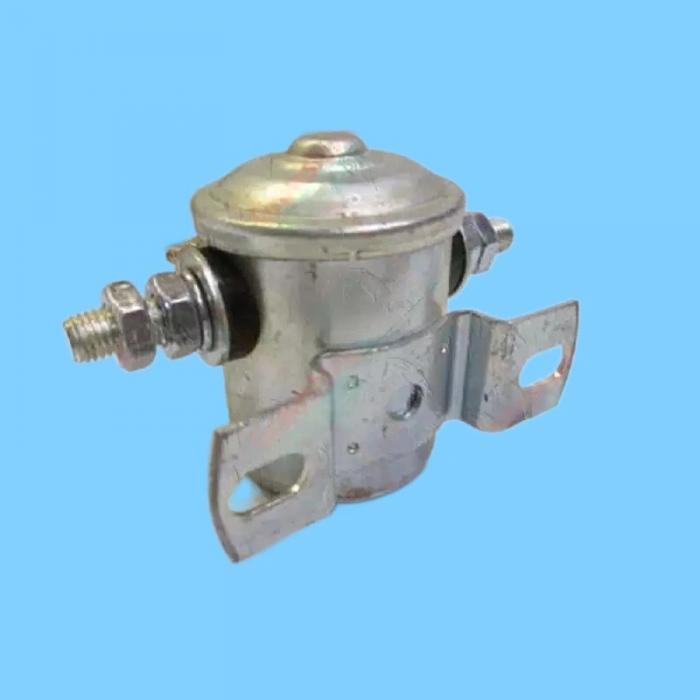

030-2266  Caterpillar 12V Starter Magnetic Switch (Relay), designed for controlling the starter motors of construction machinery and generator sets.

I. Key Specifications

Model: 030-2266 (also written as 0302266)

Type: Starter Relay / Magnetic Switch

Coil Voltage: 12V DC

Material: Carbon Steel

II. Function and Applications

Function: Uses a low-amperage current to control a high-amperage current, thereby driving the starter motor and protecting the ignition switch.

Compatible Models:

Engines / Generator Sets: 3406, 3406B, 3408B, etc.

Backhoe Loaders: 416, 426, 428, 436, 438, 446, etc.

Telehandlers: TH62, TH63, TH82, TH83, TH103, RT80, RT100, etc.

Heavy Equipment: Track-type tractors, truck engines, etc.
