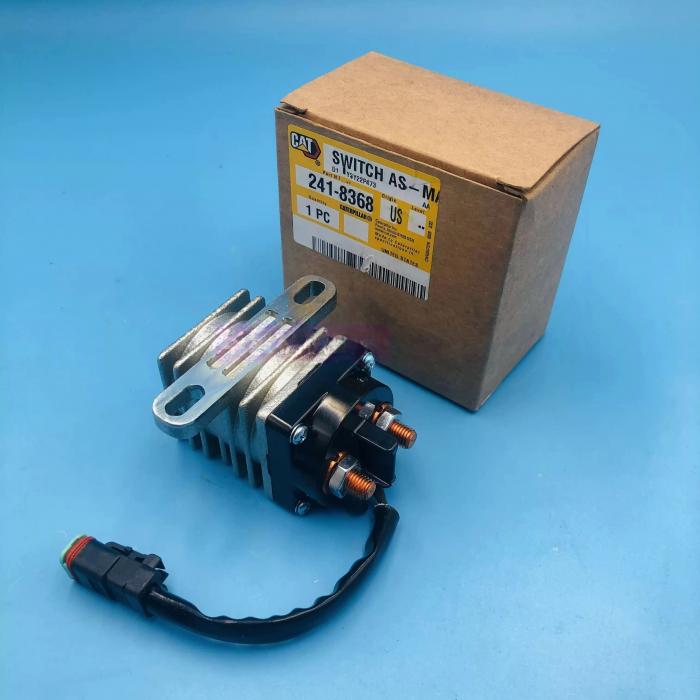

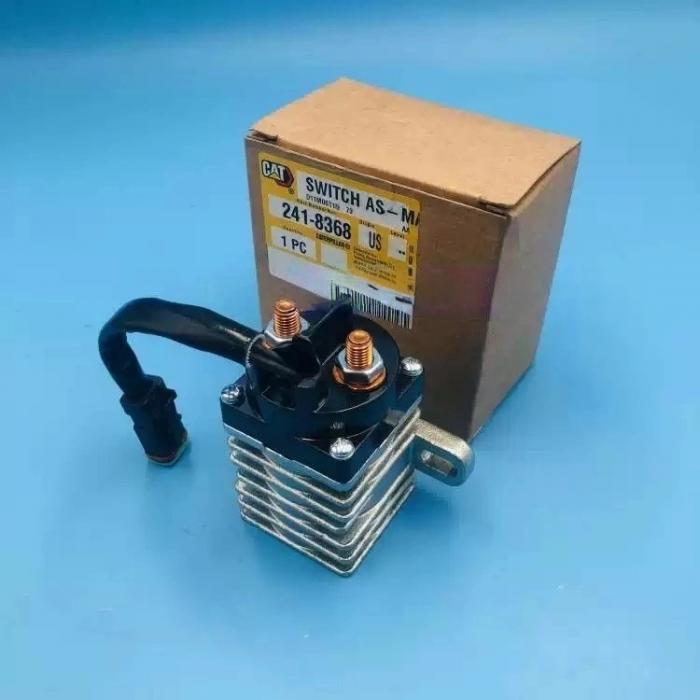

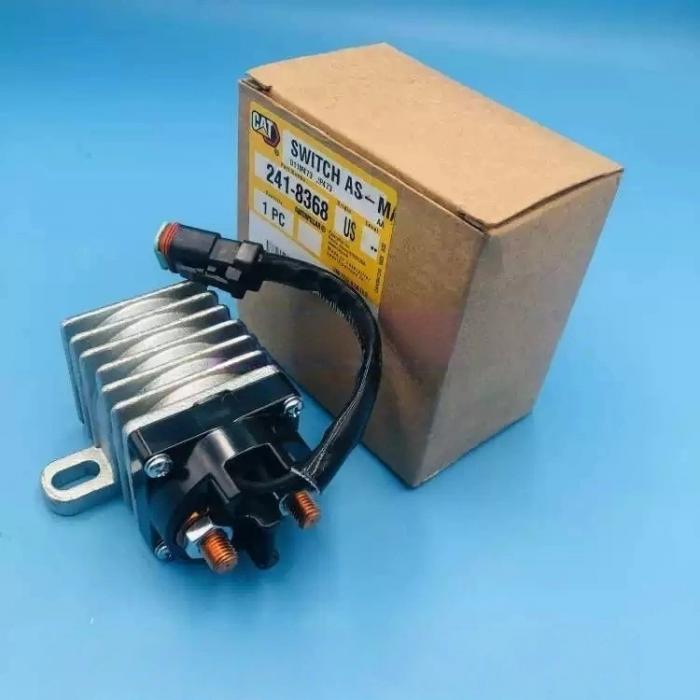

241-8368 (2418368) — 24V / 100A (Magnetic Switch Relay / Switch GP-Magnetic). Specifically designed for high-current circuits—such as starter motors and main power systems—it features an integrated metal heat sink and a Deutsch waterproof connector. I. Core Specifications

Part Number: 241-8368 / 2418368

Type: High-Power Magnetic Starter Relay / Power Switch

Coil Voltage: 24V DC

Contact Capacity: 100A (High Current)

Physical Features: Includes aluminum heat sink, two large bolt terminals, and one wiring harness with a Deutsch 2-pin waterproof connector

Mounting: Dual-bolt fixation, includes ground terminal

Function: Uses a low-current signal (from the ignition switch) to control a 100A-class starter motor or main power circuit; prevents voltage drop and protects the ignition switch from burnout

II. Primary Compatible Equipment

Wheel Loaders: 914G, 924G/H/K, 928G/H, 930G/K, 938G/H, 950G/H, 962G

Articulated Trucks: 725/C, 730/C, 735/B, 740/B, D250E II, D300E II

Motor Graders: 120H/K/M, 12H/K/M, 140H/K, 135H

Engines: C9, C9.3, C13, C15, C18, 3126B, 3512B

Pavers / Cold Planers: AP-600/655/1055D, PM-201/465/565B

V. Common Faults and Diagnostics

Fault Symptoms: No response upon starting, intermittent power loss to the entire vehicle, starter motor fails to engage

Diagnostic Methods:

Coil Resistance: Approx. 60–90Ω at 24V

Power-On Test: Audible "click" sound indicating engagement; contacts show electrical continuity

Inspection: Check the wiring harness connector for signs of oxidation or looseness
