175-2306 (1752306)  24V Magnetic Switch / Starter Relay

I. Key Specifications

Part Number: 175-2306 (1752306)

Type: Electromagnetic Power Relay / Starter Relay (Magnetic Switch)

Voltage: 24V DC (Standard for Heavy Machinery)

Current: High Current (approx. 80–100A); utilized in main power / starter circuits

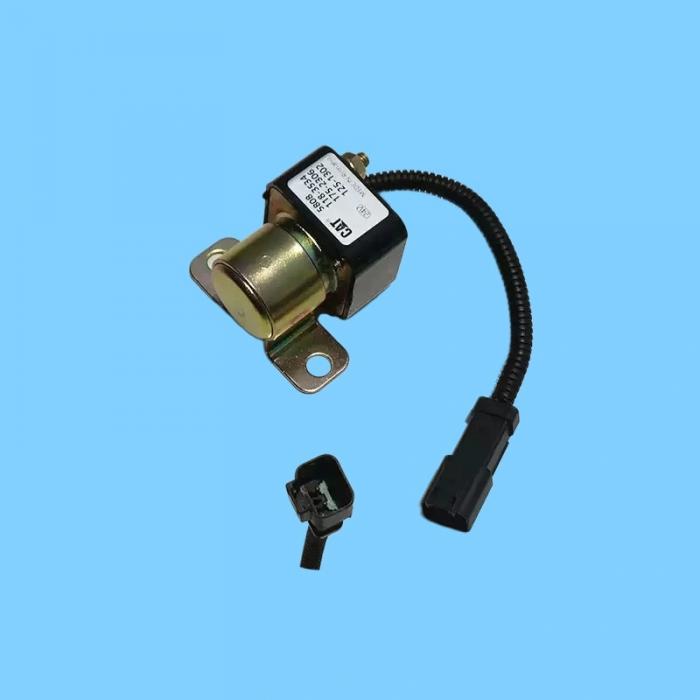

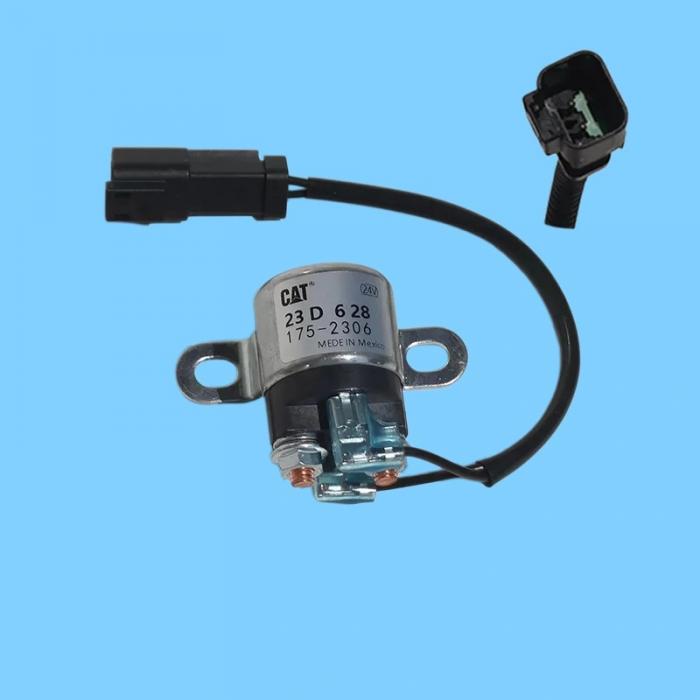

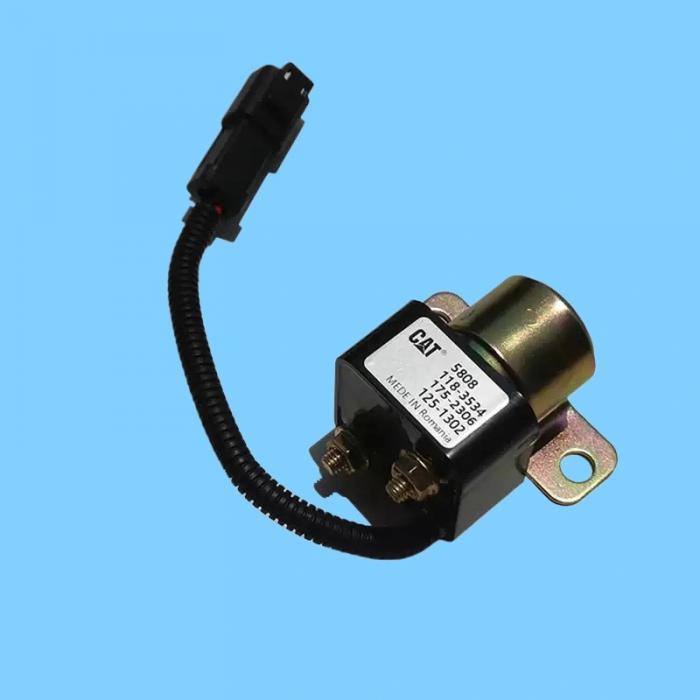

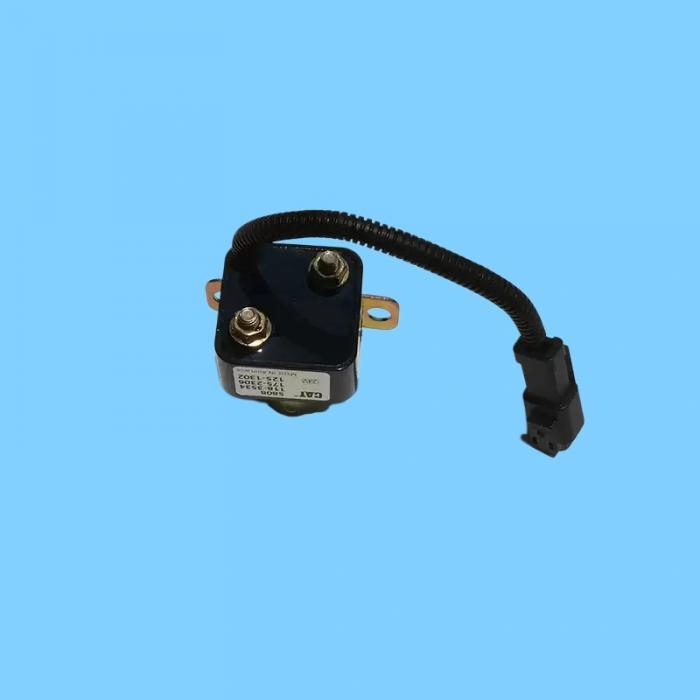

Structure:

Circular metal housing with mounting bracket

2 high-current terminals (Battery / Main Power)

Plug with lead wires (Low-current control signal)

Function: Controlled by a low-current signal from the ignition switch or controller; serves to connect/disconnect the high-current circuit for the starter motor and main power supply. II. Applicable Models (Common)

Excavators: 320C, 320D, 323D, 325D, 330C, 336D, etc.

Loaders / Dozers: 950H, 962H, D6N, etc.

Engines: C6.4, C7, C9, etc.

III. Differences from 171-2211 (Circuit Breaker)

175-2306 (Relay)

Features a coil: Electromagnetic control; triggered by a low-current signal.

Automatic switching: Disconnects immediately upon power loss.

High-current switch: Controls the opening and closing of the main circuit.

171-2211 (Circuit Breaker)

No coil: Thermal/magnetic protection; trips upon overload.

Manual reset: Requires pressing a button after tripping.

Overload protection: Does not function as a standard on/off switch.

V. Common Faults

Symptoms: Excavator fails to start; starter motor is unresponsive; entire machine has no power; a "clicking" sound is heard during starting, but the starter motor does not spin.

Diagnostics:

Check if the 24V voltage at the control plug is normal.

Listen for the internal "pull-in" sound when power is applied.

Test the continuity of the main terminals (should show continuity/conductance under normal conditions)
