I. Core Specifications

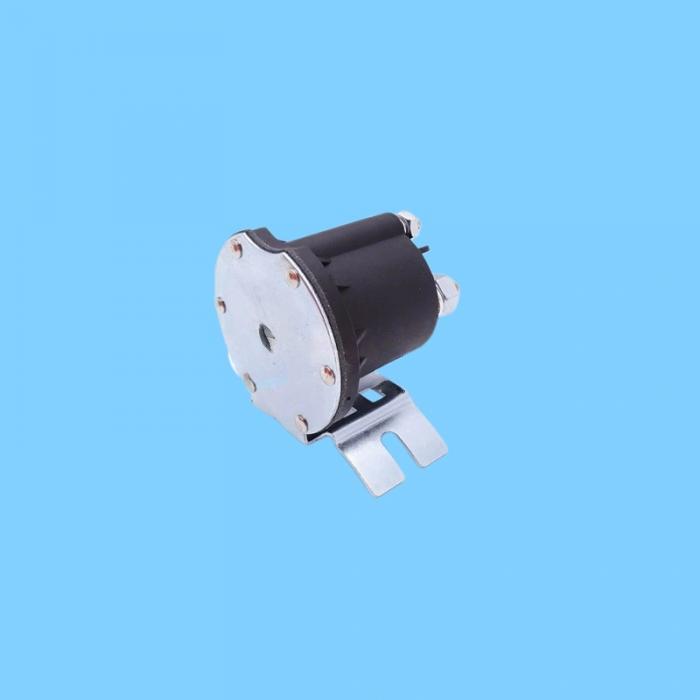

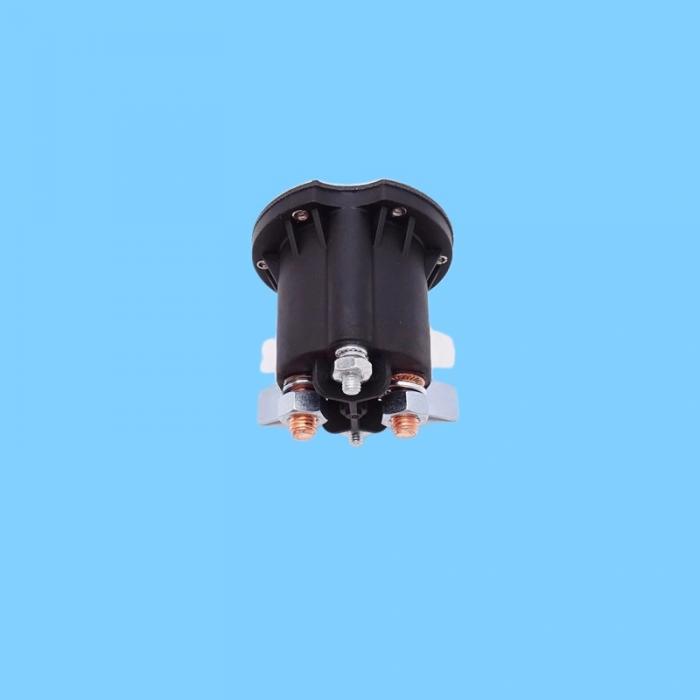

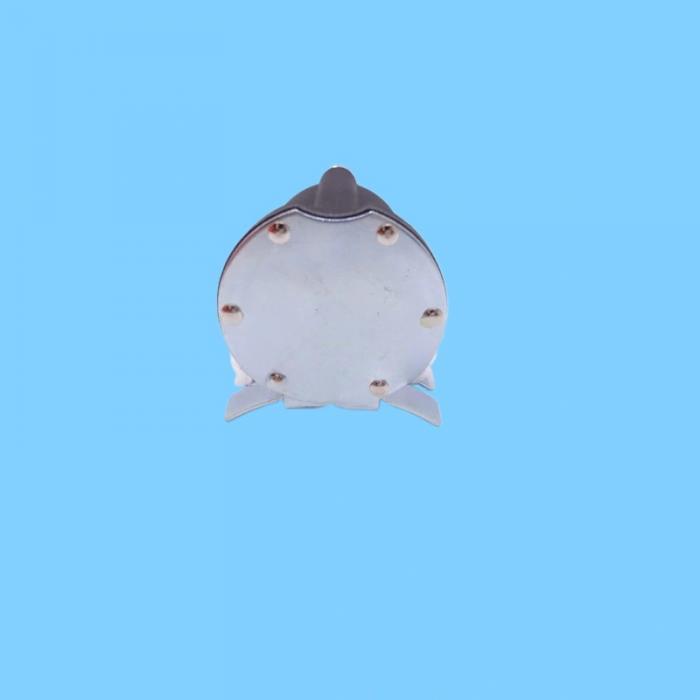

Model: 684-1261-212 (Genuine Trombetta, replaces 684-1251-212)

Voltage: DC 12V (Coil)

Contact Current: 150A Continuous, 250A Intermittent, 800A Surge

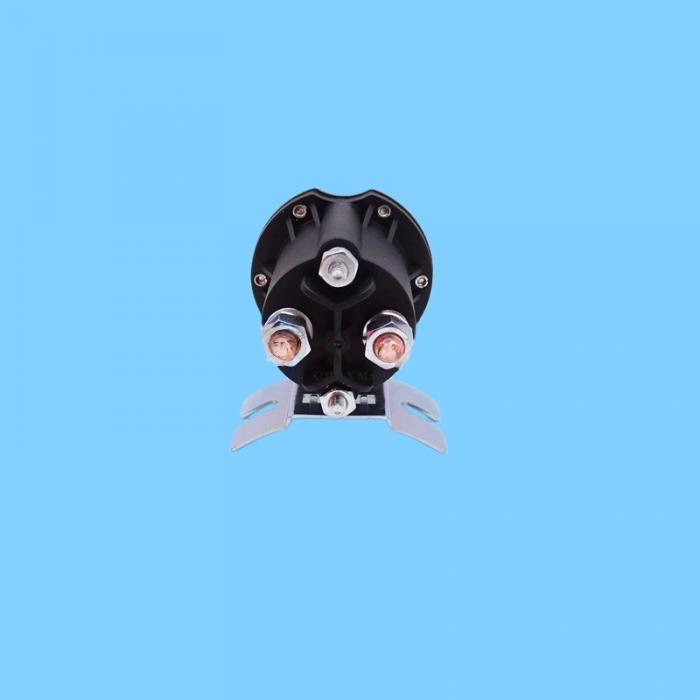

Structure: 4-Terminal, Metal Sealed Housing, Large Bolt Terminals (5/16"-24)

Type: Single Pole Single Throw (SPST / Normally Open), Intermittent Duty Cycle (Max. 6 minutes)

Features: Water and dust resistant, high surge capability, suitable for motor/oil pump starting applications

II. Functional Positioning (Compared to Previous Models)

684-1261-212: 12V High-Current DC Contactor (Starting / Oil Pump)

Control Applications: Engine starting, fuel pumps, electric forklift/stacker motors, liftgate motors

Current Rating: Higher than 254-3783 (50A); comparable to 241-8368 (100A) but with superior intermittent current capability

254-3783 (Caterpillar): 24V/50A, metal housing; excavator starting / pre-heating applications

327-6208 / 363-7123: 4-Pin plastic housing, 30–40A; lighting / solenoid valve applications

564-9133: Wiper Electronic Controller (with PCB)

III. Applicable Scenarios

Construction Machinery: Equipment from Caterpillar, Case, JLG, Genie, etc.

Industrial Vehicles: Electric forklifts, stackers, golf carts, liftgate/oil pump motors

DC Systems: Switching (ON/OFF) for high-current 12V main circuits
