171-2205 is a Caterpillar (CAT) 24V 40A resettable circuit breaker—often mistakenly referred to as a relay—primarily used for overcurrent protection in starter motors and high-power electrical circuits.

I. Core Specifications

Part Number: 171-2205 / 1712205

Type: Manual Reset Circuit Breaker

Voltage: 24V DC

Rated Current: 40A

Terminals: 2 large bolt terminals

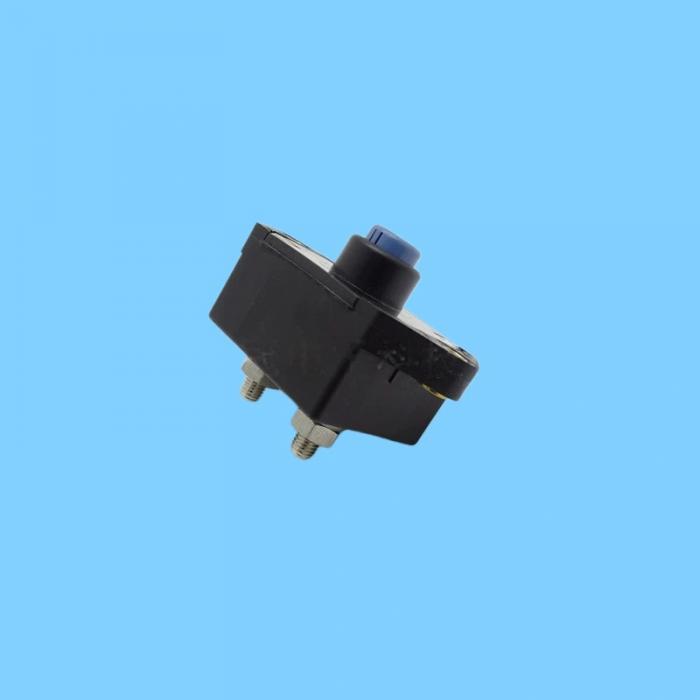

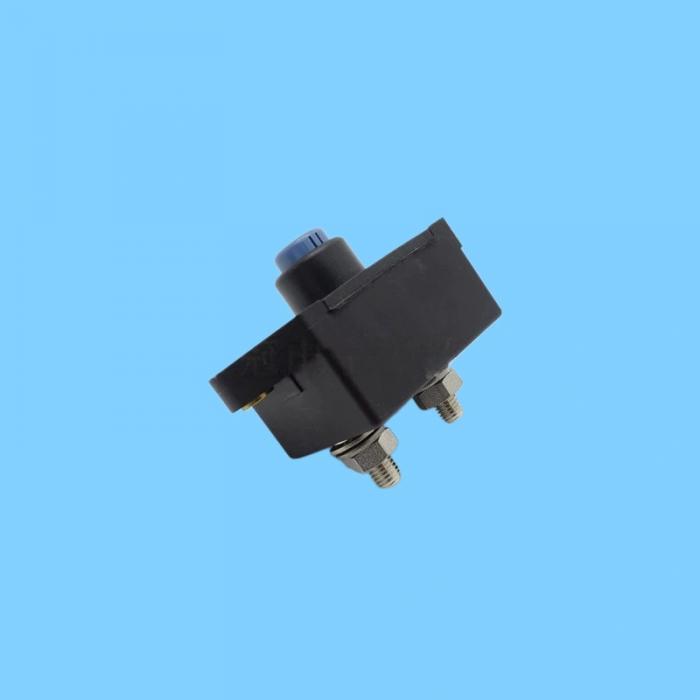

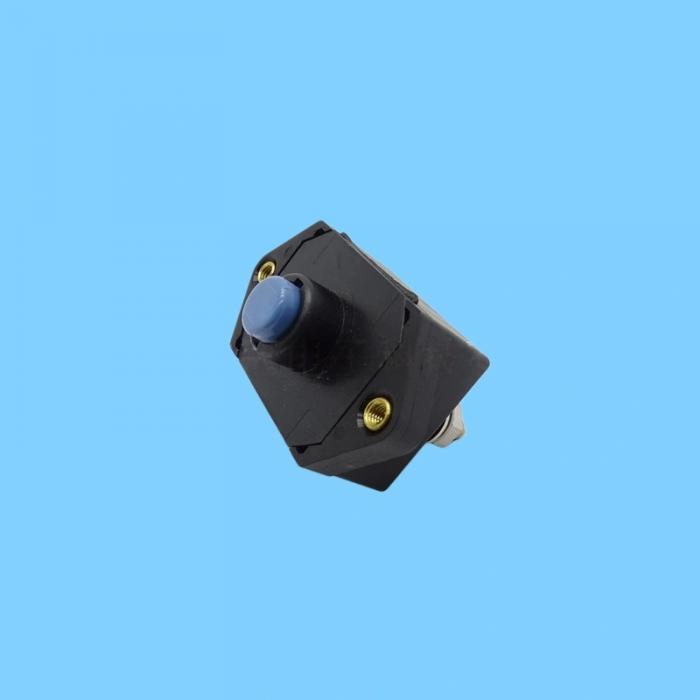

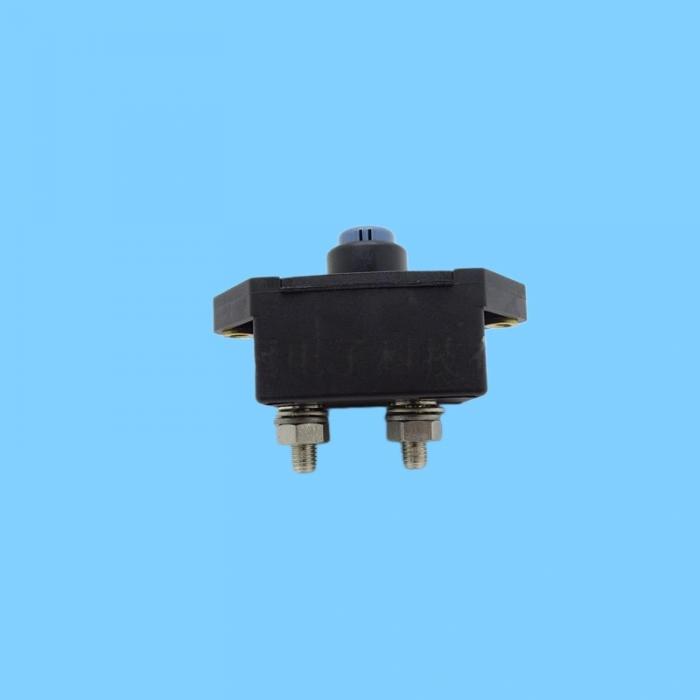

Appearance: Black square housing with a blue reset button on top

Function: Automatically disconnects during overload or short-circuit conditions; requires manual button press to reset after the fault has been cleared

Protection: Fully sealed; resistant to water, dust, and oil

II. Applicable Models

Primarily used in the **Starter Motor** circuits and other high-power electrical circuits of Caterpillar excavators and loaders:

Excavators: 320C, 320D, 325C, 330C, and other mainstream models

Engines: 3066, C6.4, C7, 3126B, etc.

Others: Suitable for all CAT heavy machinery requiring 40A, 24V starter circuit protection

III. Function and Common Fault Symptoms

Core Function:

Protects the starter motor and main wiring harness, preventing burnout caused by short circuits

Serves as a reusable alternative to traditional fuses, thereby reducing maintenance costs

Common Faults:

Failure to start / Complete loss of vehicle power: Internal overload disconnection (requires manual reset)

Reset button popped up: Indicates a line short circuit or overload, triggering the circuit breaker's protective action

Poor contact: Corrosion at the terminals, resulting in weak or sluggish starting performance

IV. Replacements and Interchangeability

Direct Replacement: While there is no exact OEM part number match, the generic market-standard 171-2205X (OEM-style) model serves as a direct replacement

Replacement Requirement: Must be a 24V 40A *manual reset* type; *automatic reset* models are not interchangeable substitutes
