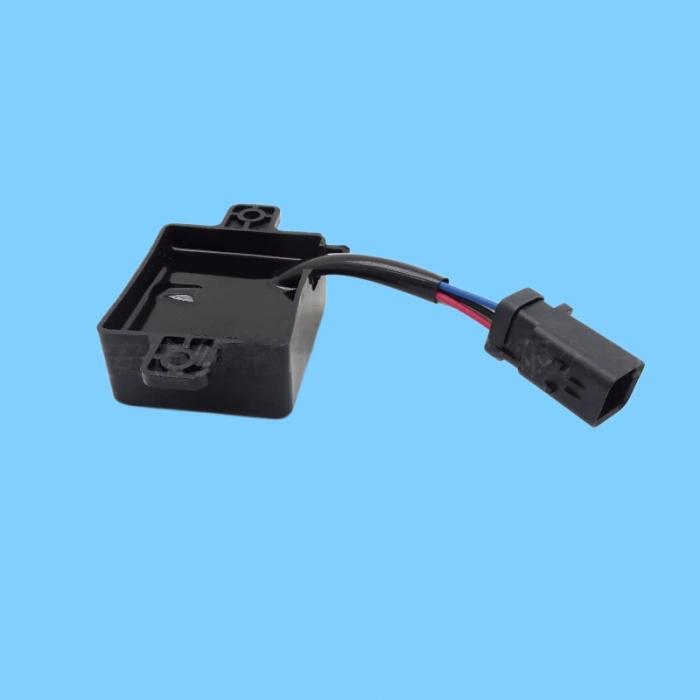

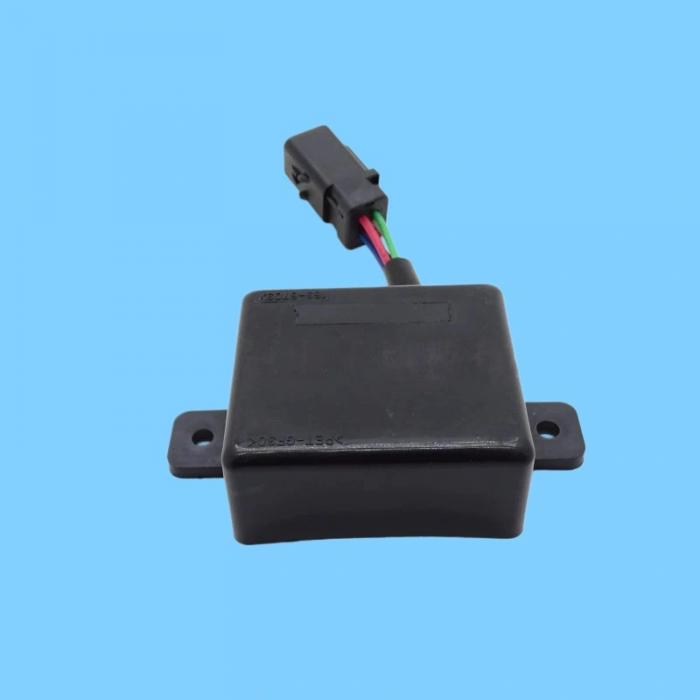

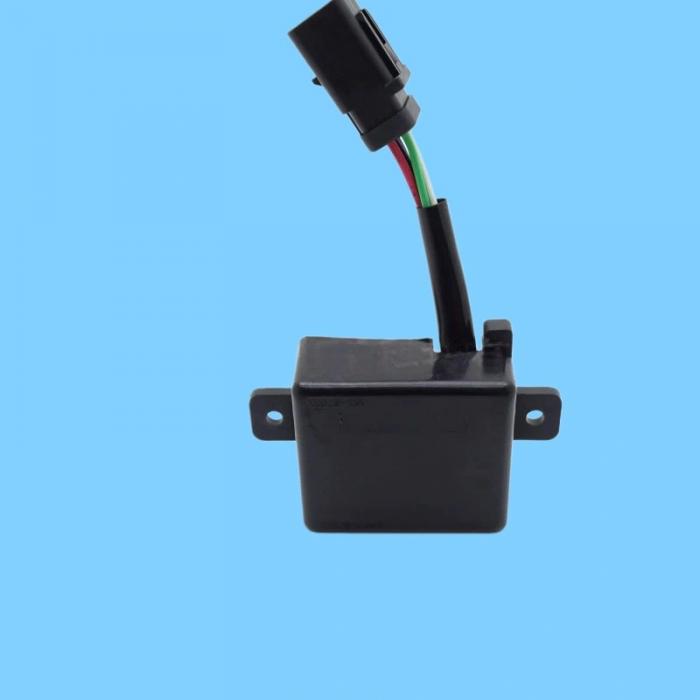

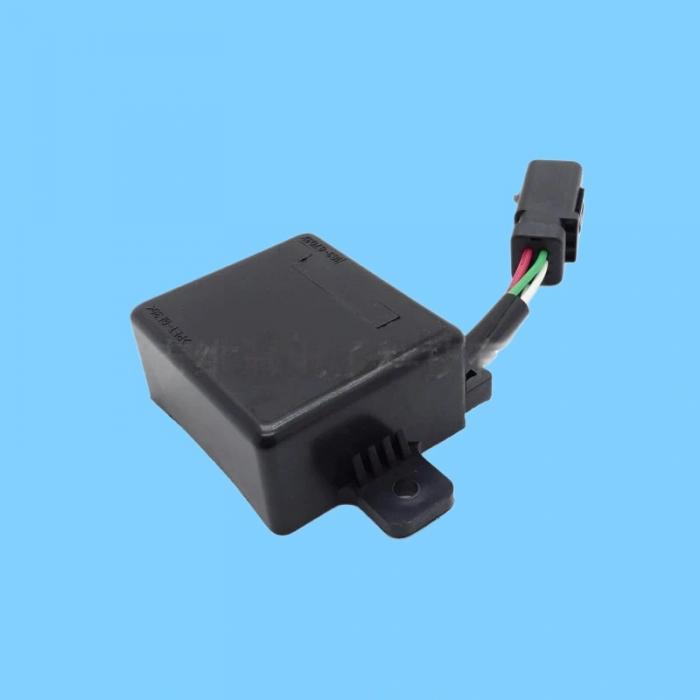

163-6703X (OEM) 24V Shutdown Delay Relay

Non-Genuine OEM Replacement: Perfectly matches the CAT 163-6703; features a 75-second shutdown delay for extended protection.

II. Applicable Models (Comprehensive Coverage of Genuine Parts)

Excavators: 311C, 312C, 315C, 320C, 320D, 323D, 325C, 330C, 345C, 365C, 385C, etc. • Engines: 3066, 3126B, C6.4, C7, C9, C13, C15, etc. • Loaders / Dozers: Compatible with the electrical systems of most medium-to-large-scale CAT construction machinery within the same series.

III. Replacement and Interchangeability

1. Direct Replacement for Genuine CAT Part: 163-6703 (Identical function, interface, and delay timing; a 1:1 seamless replacement).

2. Interchangeable with Genuine Part (Same Function): 111-4870 (Requires verification that the interface and voltage specifications match).

3. Replacement Note: No modification to the wiring harness or software programming is required; simply plug and play for installation. This offers the most cost-effective replacement solution available.

V. Common Faults and Troubleshooting • Symptoms: Immediate power cutoff upon engine shutdown, ECU error codes, data loss, difficulty starting, battery drain. • Troubleshooting Steps: First, check the DT connector to ensure proper contact; then, test the delay function. If the 75-second delay fails to activate, simply replace the unit with the 163-6703X; no complex diagnostics or adjustments are necessary.
